5070 Ductor Tester and Micro-Ohmmeter Calibrator v1.1
5070 Ductor Tester and Micro-Ohmmeter Calibrator Page 5 of 8

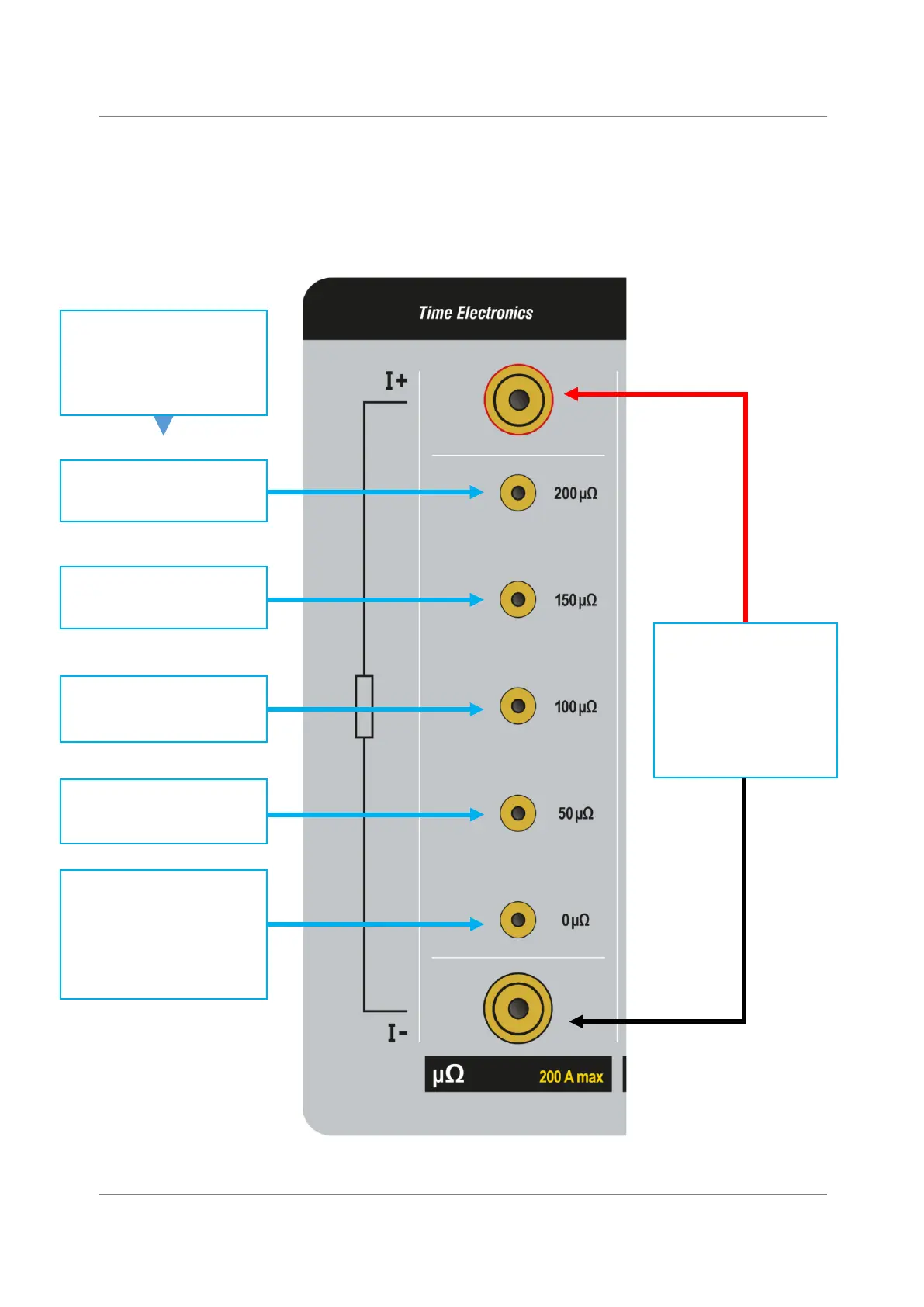

2.1.1 5070 Terminals
Example showing 200 μΩ range (200 A max) below. The voltage terminals are resistance set
points that can be stepped through to perform 4-wire calibration of the unit under test.
The 5070 has 5 independent ranges of resistance set points.
CURRENT
TERMINALS
COMMON ZERO
VOLTAGE
REFERENCE POINT
200 μΩ SET POINT
150 μΩ SET POINT
100 μΩ SET POINT
50 μΩ SET POINT
VOLTAGE
TERMINALS
