2.8 Test Setup
Three terminals are available on the side of the 9780.

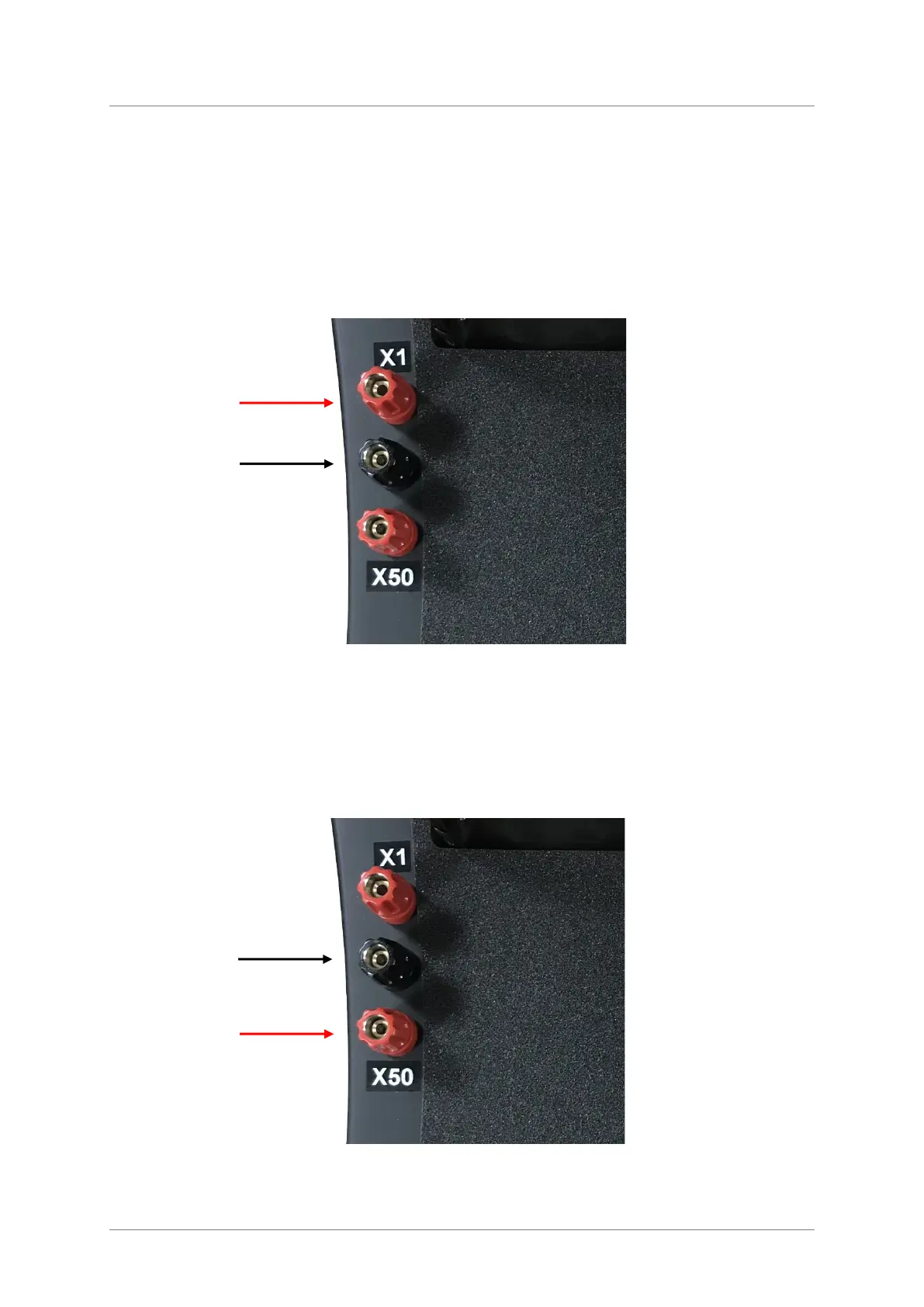

To use the x1 turn coil connect the test leads supplied from the calibrator to the x1 red
terminal and the black common terminal.
x1 Turn Connection
To use the x50 coil connect the leads to the x50 red terminal and the black common
terminal.
x50 Connection
Current Source +VE
Current Source -VE
Current Source -VE
Current Source +VE
