Time Electronics User Manual
9780 Clamp Meter Adaptor v1.2
9780 Clamp Meter Adaptor Page 9 of 12

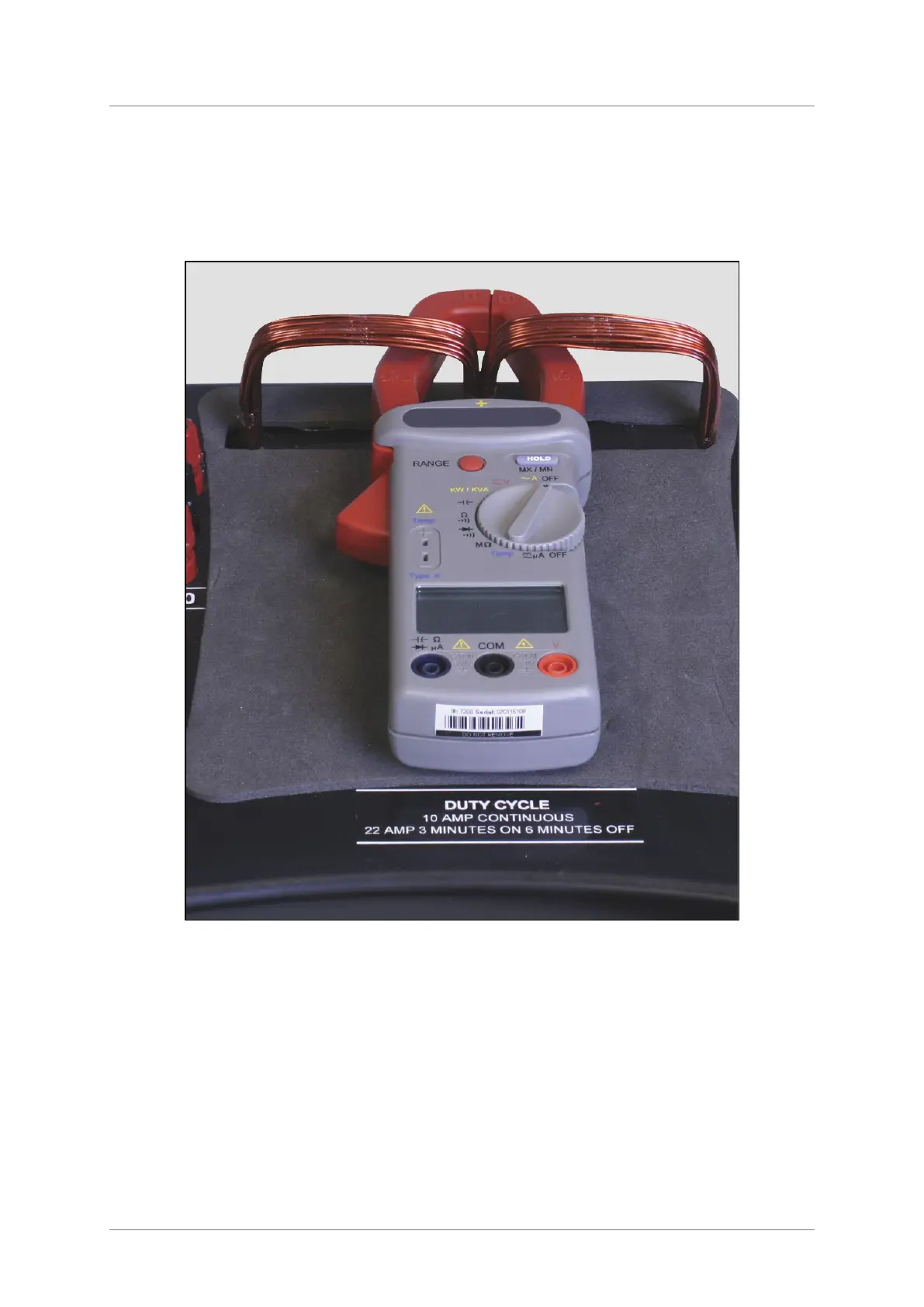

2.10 Positioning the Clamp Meter
Place the clamp meter on the 9780 bed, with the jaws clamped around the coil.
Make sure the coil is aligned centrally with the markers on the jaws.
Follow the instructions in the calibrator manual to output the specific current that will be
multiplied by the adaptor.
