4

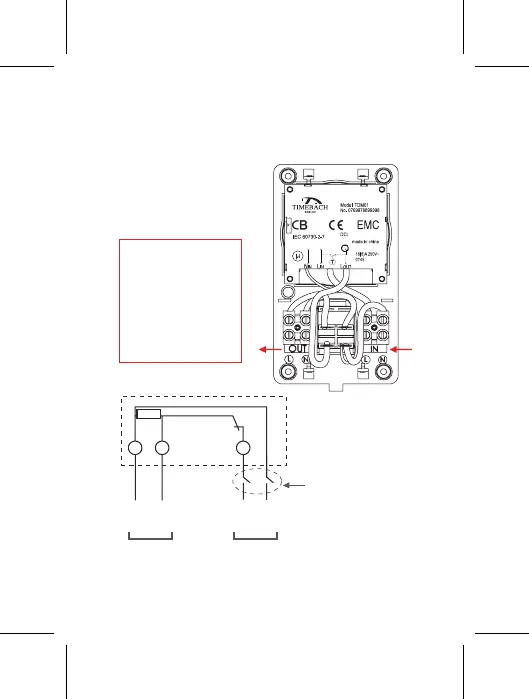

4.3 Connect wiring in accordance with wiring diagram.
Do not combine solid and flexible conductors at the
same terminal. When connecting flexible conductors
conductors, use terminal ends.
4.4 Fix backplate to socket box.
4.5
Fit cover over module and reassemble to backplate.
4.6 Re-fit and tighten two screws (A).
SUPPLY
APPLIANCE
The diagram
shows wiring for
a mains-operated
load.
145
L NN L
PCBA
Main rocker switch
Supply
IN
Appliance
OUT
Note: rocker switch
is manual override.
if rocker is in OFF state,
no matter what is the
timer state output will
be OFF, if rocker is in
ON state output
depend on timer state.
