away from the baby unit; Turn down volume on the
parent unit.
Problem: Weak sound or mute coming from parent
unit.
Possible cause: Volume on parent unit or set too low
or muted.
Solution: Turn up the units closer to each other.
Problem: Units may be too far from each other.
Possible cause: No signals between units.
Solution: Move the units closer to each other.
Instructions for Pulse Oximeter
Connection
Insert the sensor tips into the slots on the probe
holders. Place the sensor tip labeled “LED” into the
stationary probe holder on the silicone wrap belt, and
place the sensor tip labeled “PD” into the sliding
probe holder, as illustrated in Figure 1 and Figure 2.

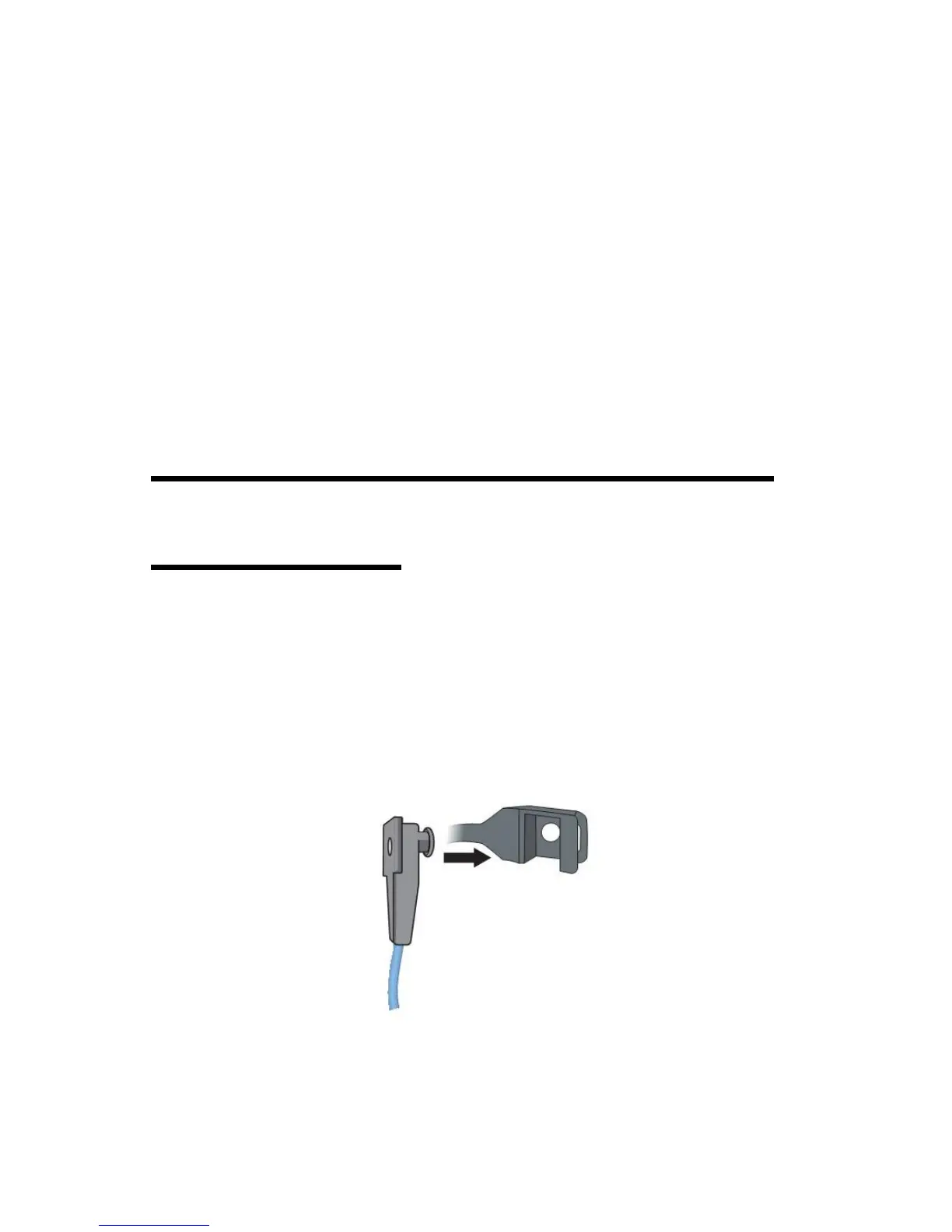

Figure 1 Probe tip and holder
