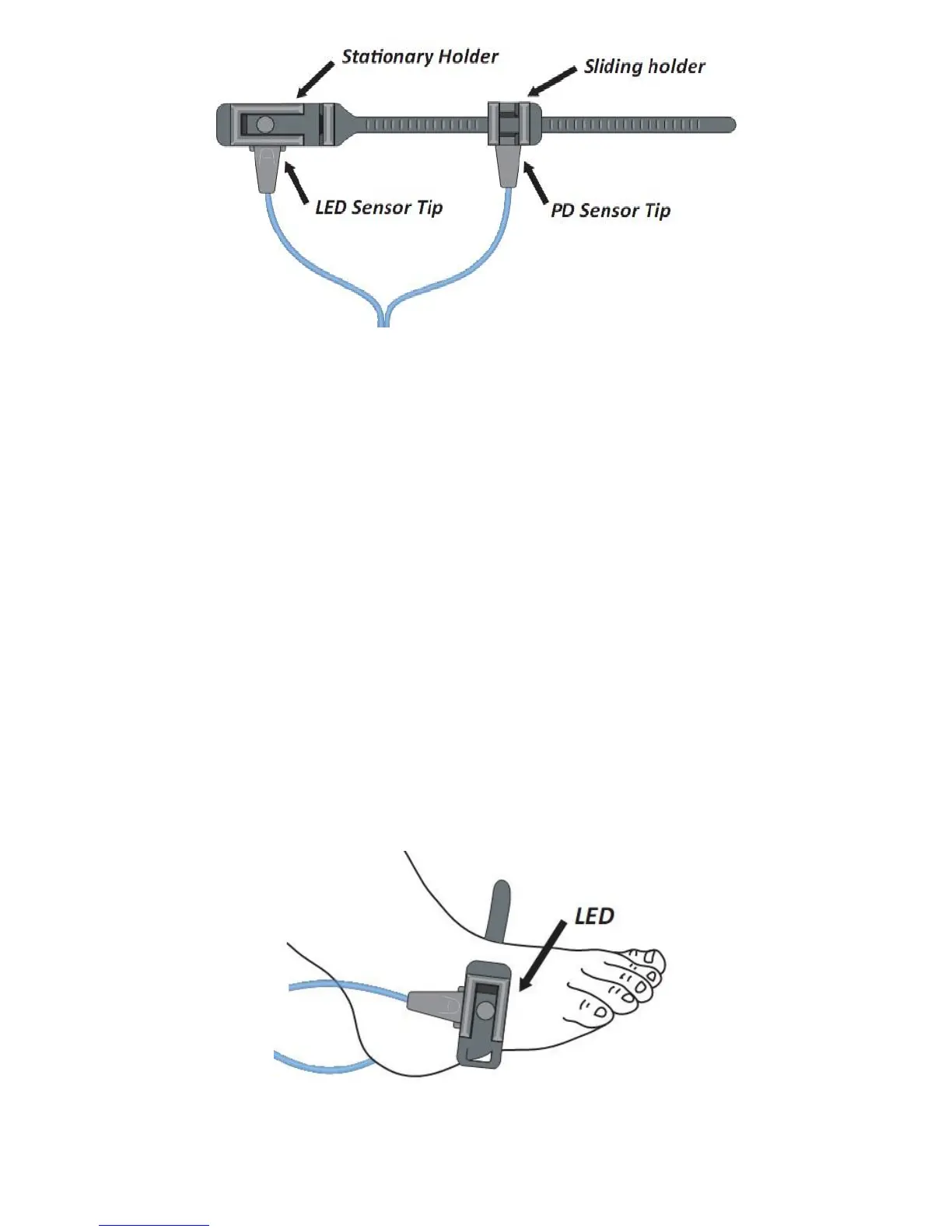

Figure 2 Y-type SpO
2
Sensor with Rubber Wrap
NOTE: Make sure that the silicone button seat fully
into the hole in the back of the probe holder.
Wrap the oximeter on the leg near ankle with its
belts and position the front panel to a proper place
for convenient operation, as shown in Figure 4.
Wrap up the Y-type sensor onto the baby’s foot by
the rubber wrapper, as illustrated in Figure 3. Make
sure the alignment of the light-emitting tip (LED)
and the photo- detecting tip (PD) for aiming at each
other, then thread the end of wrap belt through the
outside slots on the probe holders and tighten the
rubber belt with proper force. The final placement is
shown in Figure 4.
Figure 3 Sensor wrapping up
