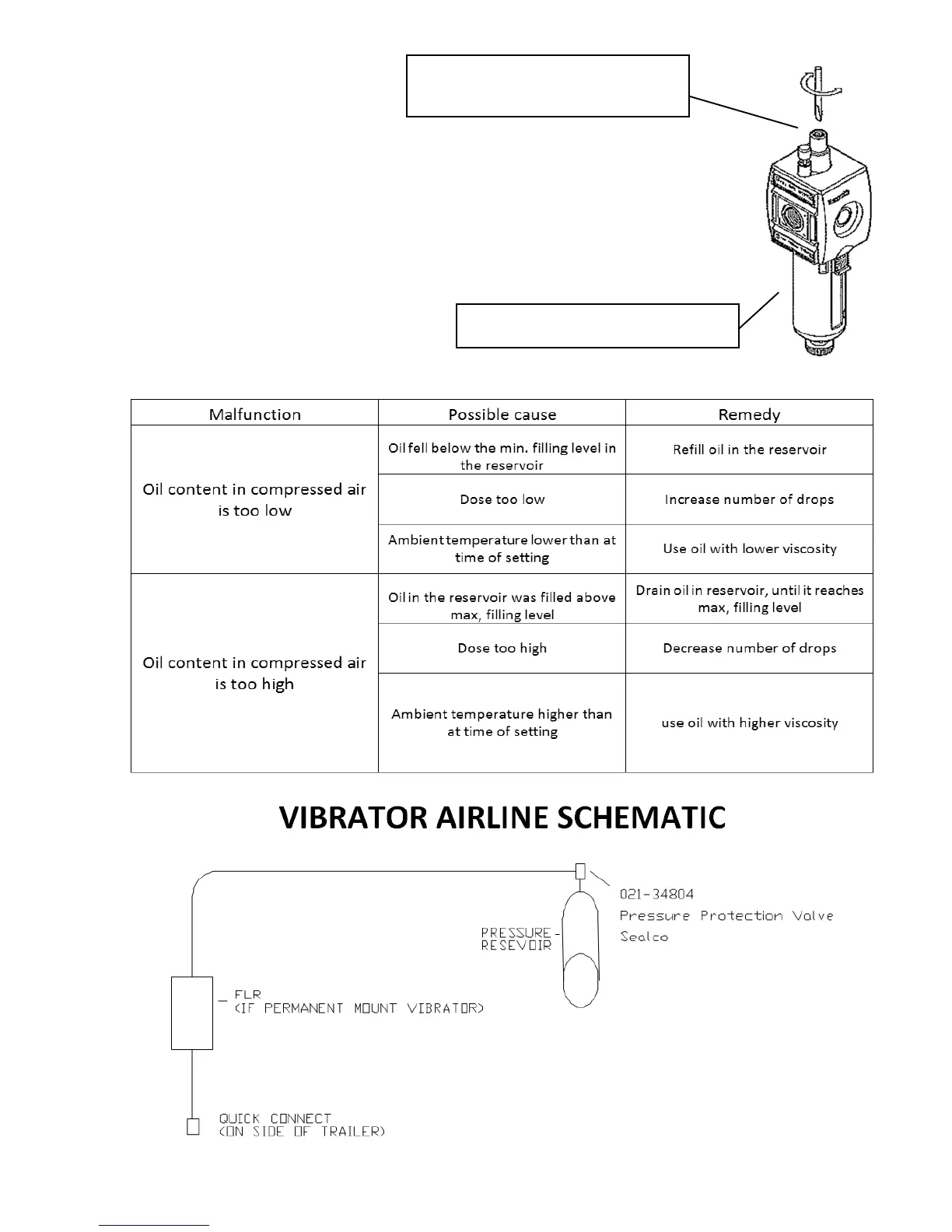

Timpte hopper - Vibrator Airline Schematic

39
Date of Origin – 02/01/08
TROUBLE-SHOOTING:
SETTING THE OIL AMOUNT
• Set the oil amount using the metering screw on the standard oil-mist
lubricator’s drop attachment.
• Determine amounts of oil discharged by observing the number of
drops in the drop attachment. Standard value: 1-2 drops/min
(qv = 1000 NI/min)
CLEAR PLASTIC NIPPLE WITH
GOLD ADJUSTMENT SCREW
OILER SECTION ONLY SHOWN
