Cong / Remote control
Lan Controller has a functionality to send controlling packets from one to other (by UDP
protocol).This way we can switching on/o OUTx outputs of Lan Controller (Server) by the
pushing INPDx to GND on other device (Client). Controllers should be connected, nut can
be away from each other.Most frequently this feature could be used in local network of one
building for receiving logical signals of sensors of one device on others.
Example:
Dusk sensor is connected to Lan Controller no 1 and "Even cong" turn relay. Same func-
tion we control othe relay, which short connecting INP1D to GND give signal bny remote
control to switch of relay on Lan Controller no2. Thgis way we can switch on night lights
only from one sensor
.
Server - device which receive signals, their OUTx, PWM, outputs are controlled by Client.
Client - device which put signals, their logical INPDx inputs or virtual evens EVNTx control
Server.
One device works as a Server and Client same time.

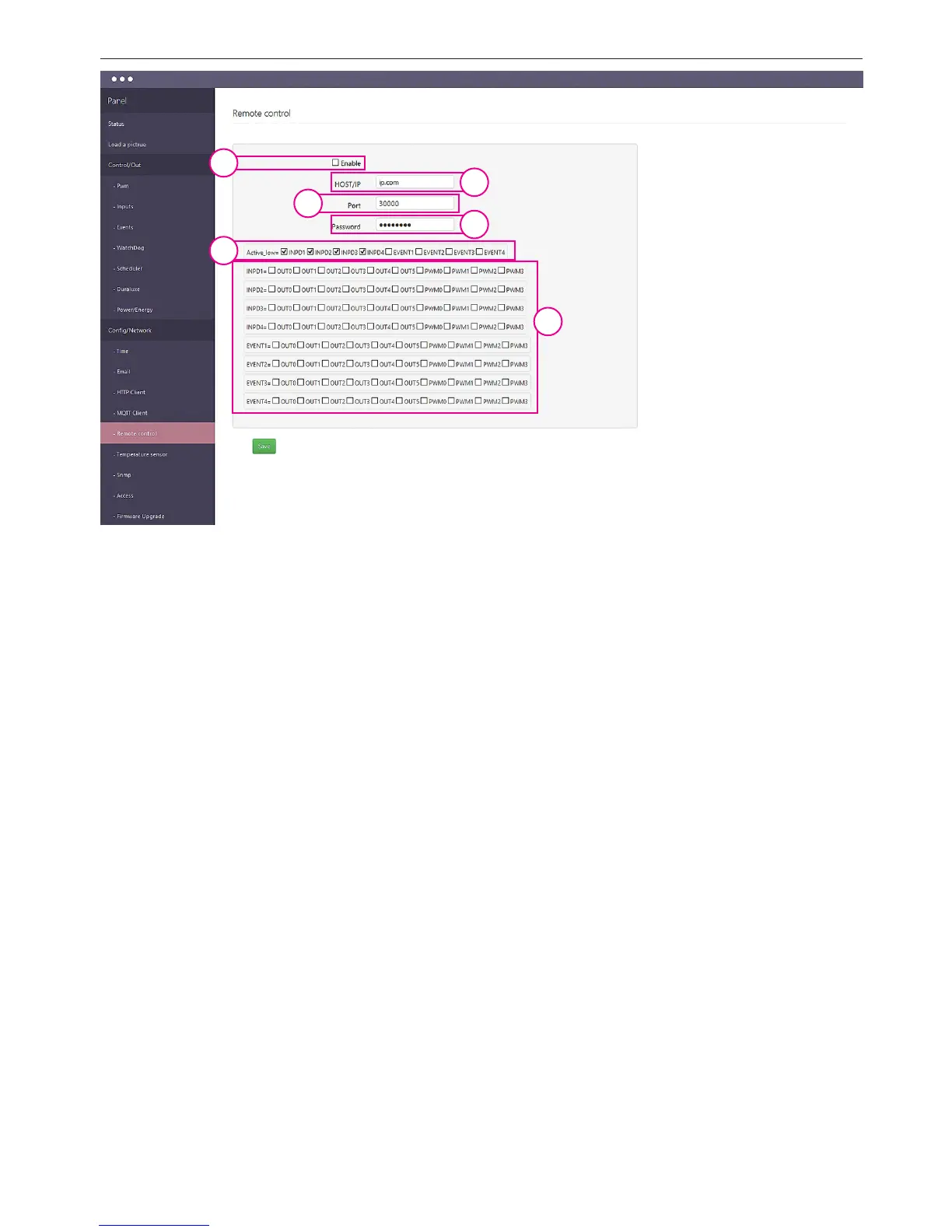

Settings:
1. Checkbox for enabling function
2. HOST/IP - put Server address if deviece works as Client
- put any address (obligatory) if works as Server
3. Port - default 3000, same on both devices
4. Hasło - same on both devices
5. Active_low checkbox - for reversing output state (check on Client)
6. INPD, EVENT/OUT, PWM matrix check (only on Client) for input we control output we
like to switch on Sever.
1
2
3
5
6
4
