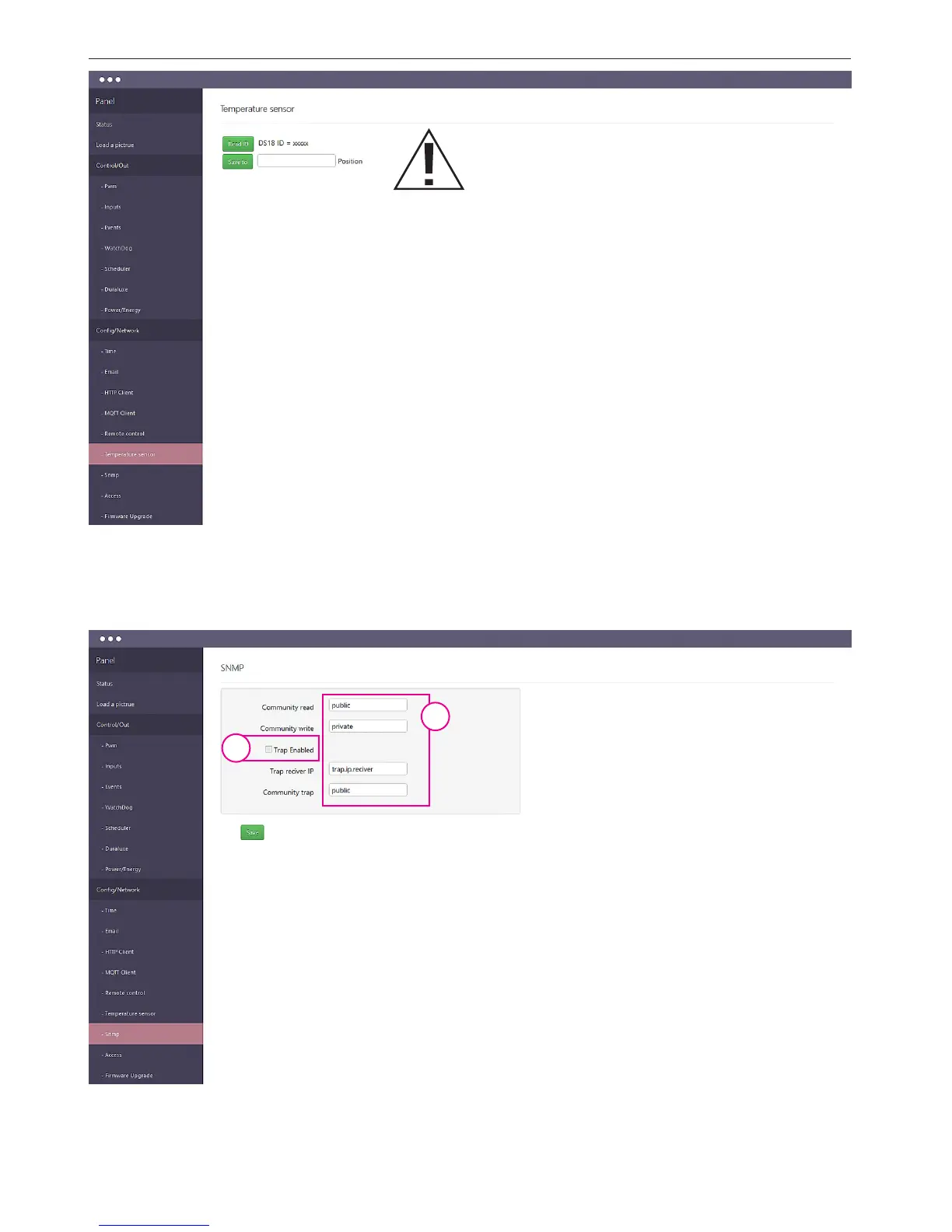

Assigning an item number
for the currently connected
sensor DS18B20.
Cong / Temperature sensor
1. Connect chosen sensor (others should be removed),
2. Refresh the button "Read id", (if it does not appear ID, reset Lan Controller),
3. Enter the position number and press "Save to" button.
The read ID number will be assigned to the desired position,
where „1” corresponds to INP6, „2” is INP7 ... and „6” is INP11.
To add additional sensors, proceed as described above
CONNECTED WITH ONLY ONE, CURRENTLY added SENSOR.
If you want to remove the assignment, refresh the "Read id" without sensor (so
that the eld was empty) and memorize the redundant item number ("Save to").
Cong / SNMP
1. Fields community (password) for
SNMP, must be the same in your
queries in order to LK replied
2. TRAP Enabled – enabled send TRAP
by SNMP
1
2
