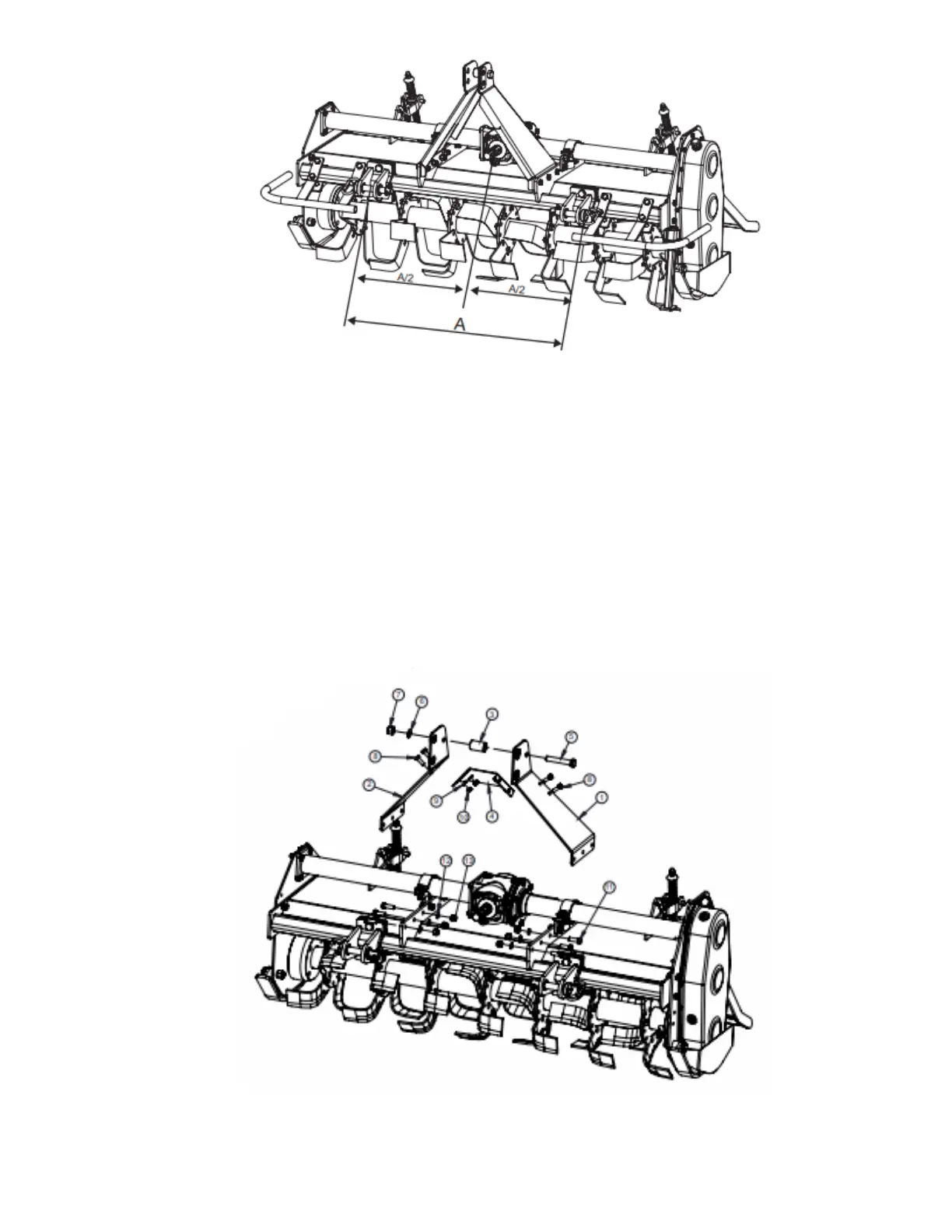

3.2. 3-POINT LINKAGE ASSEMBLY
1. Attach TPL plate RHS (1) to the Main frame assembly with Hex head bolt M12x1.75x35 (11),
Spring Washers (12) & Hex Nut (13). Do not tighten hardware at this time.
2. Repeat step-1 above to attach TPL Plate LHS (2) to Main Frame Assembly.
3. Attach Middle Spacer (3) between TPL Plate LHS (2) and RHS (1) with Hex Head Bolt
M16x2x95 (5), Spring Washer (6) and Hex Nuts (7).
4. 4. Attach TPL middle Plate (4) with Hex Head Bolt M10x1.5x25 (8), Spring Washers (9) and Hex
Nuts (10) between TPL Plate LHS (2) and RHS (1).
5. 5. Tighten all Hex Nuts to the correct torque.
