11
BEARINGS
1. LUBRICATION - Bearings used on Titan Conveyors are normally pre-lubed for life. If customer requested, re-lube
bearings are provided, the use of a #2 consistency lithium based grease is advised. Greasing Frequency should be
as many times as necessary to maintain a small lm of grease leaking at the seals. This will protect against
foreign materials entering the bearing. The following list is provided to aid you in acquiring the proper grease or
an equivalent.
2. REPLACEMENT - If replacement of bearings become necessary remember to clean off the shaft, le smooth
grooves or set screw marks, and oil the shaft before slipping on the new bearing.
IF BEARING DOES NOT SLIDE ON EASILY, USE A SOFT METAL BAR TO
TAP AGAINST THE INNER RACE TO ASSEMBLE.
3. GENERAL - Set up a weekly check on all bearings to ensure they remain tightly bolted down, set screws
remain fastened securely and are properly lubricated.
V-BELT & SHEAVES
If provided on your drive package, V-Belt tension & sheave alignment are important for extended belt life. Read the
following list over for proper maintenance or installation.
1. Never pound sheaves on or off a shaft. Make sure that the shaft diameter and sheave bore is properly sized.
If there are burrs caused by set screws or sharp edges on the keyway or keyseat, remove carefully with emery
cloth and/or le. Clean off metal particles and dirt from the shaft and sheave before installation.
2. Sheaves must be in line with each other and installed on shafts which are parallel with each other.
3. DO NOT FORCE or use the drive to install a V-belt. Have driven components loose to install the belt(s).
NORMAL DUTY HEAVY DUTY
Texaco - Multifak #2 Sun - Prestige 742EP
Mobile - Mobilux #2 Exxon - Lidok #2EP
Amoco - Lithium MP Arco - Litholene HEP2
Shell - Alvania #2 Shell - Alvania #2EP
CAUTION
!

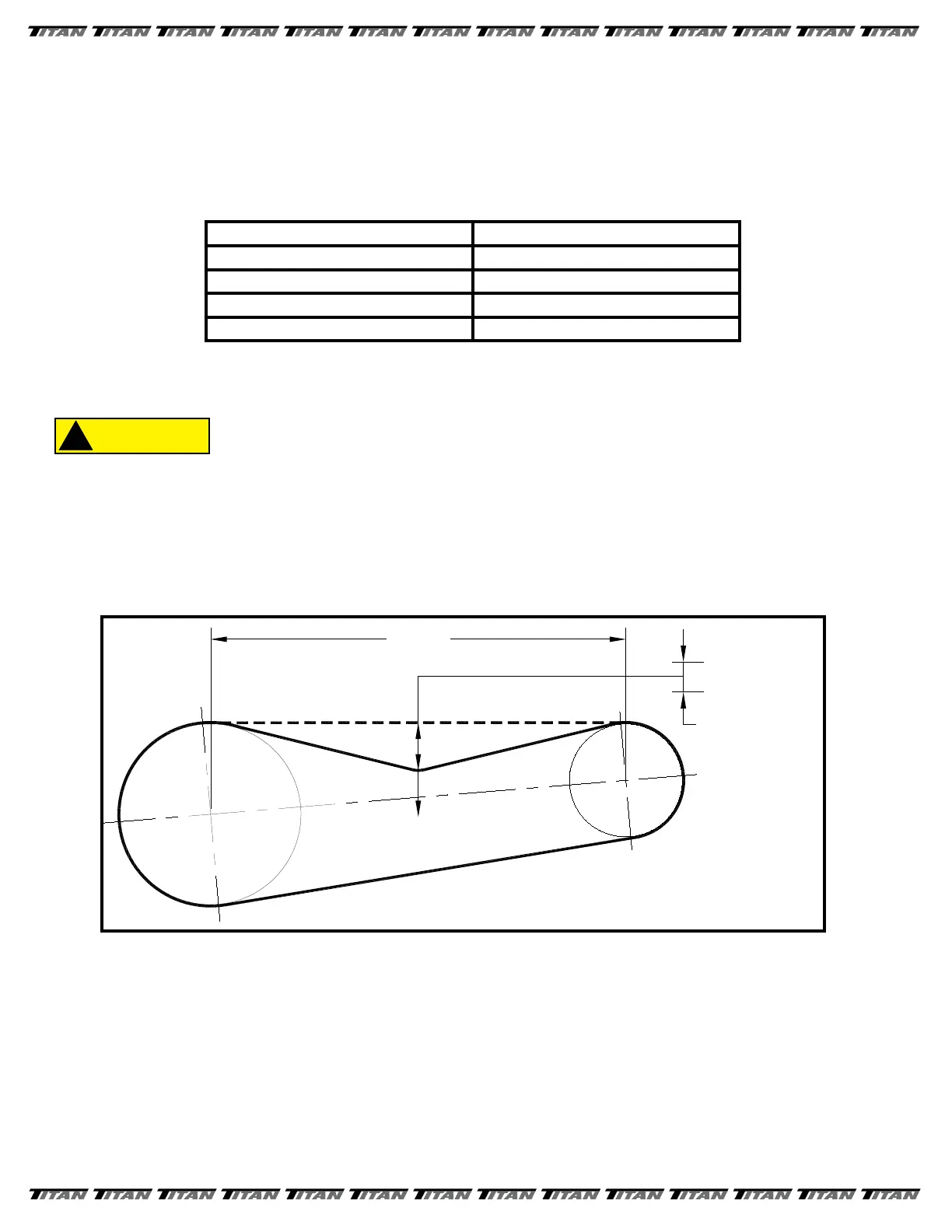

FIGURE 11
SPAN
FORCE
BELT
DEFLECTION
1/64" PER
INCH OF
SPAN
