7/21
17

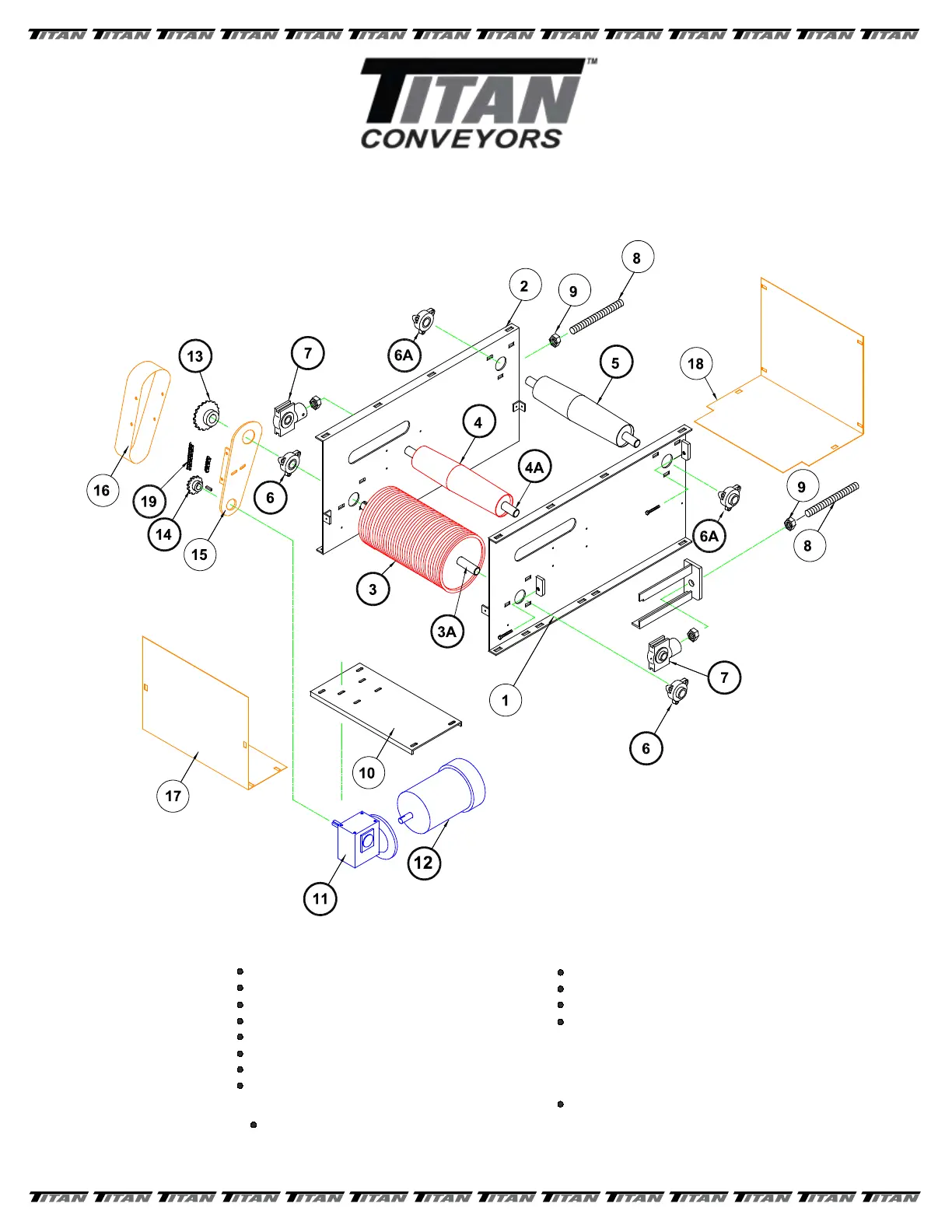

MODEL 408 Center Drive & Take-up Conveyor
1. CTR. DR. AND TAKE-UP PLATE R/H
2. CTR. DR. AND TAKE-UP PLATE L/H
3. DRIVE PULLEY
3A. DRIVE PULLEY SHAFT
4. TAKE-UP PULLEY
4A. TAKE-UP PULLEY SHAFT
5. SNUB PULLEY
6. 1 7/16" DRIVE BRG. 3 BOLT FLANGE
6A. 1 3/16" BRG. 3 BOLT FLANGE
7. TAKE-UP BRG. T-SLOT
8. THREADED TAKE-UP ROD
9. TAKE-UP NUT
10. MOTOR BASE
11. REDUCER
12. MOTOR
13. DRIVEN SPROCKET
14. DRIVE SPROCKET
15. GUARD BACK
16. DRIVE GUARD
17. CTR. DR. AND T.U. GUARD (SMALL)
18. CTR. DR. AND T.U. GUARD (LARGE)
19. ROLLER CHAIN
RECOMMENDED SPARE PARTS TO
BE STOCKED AT YOUR LOCATION
