Titan 50SPREAD - Attach Wheel Assembly Frames; Attach Frame Braces and Cross Brace

4

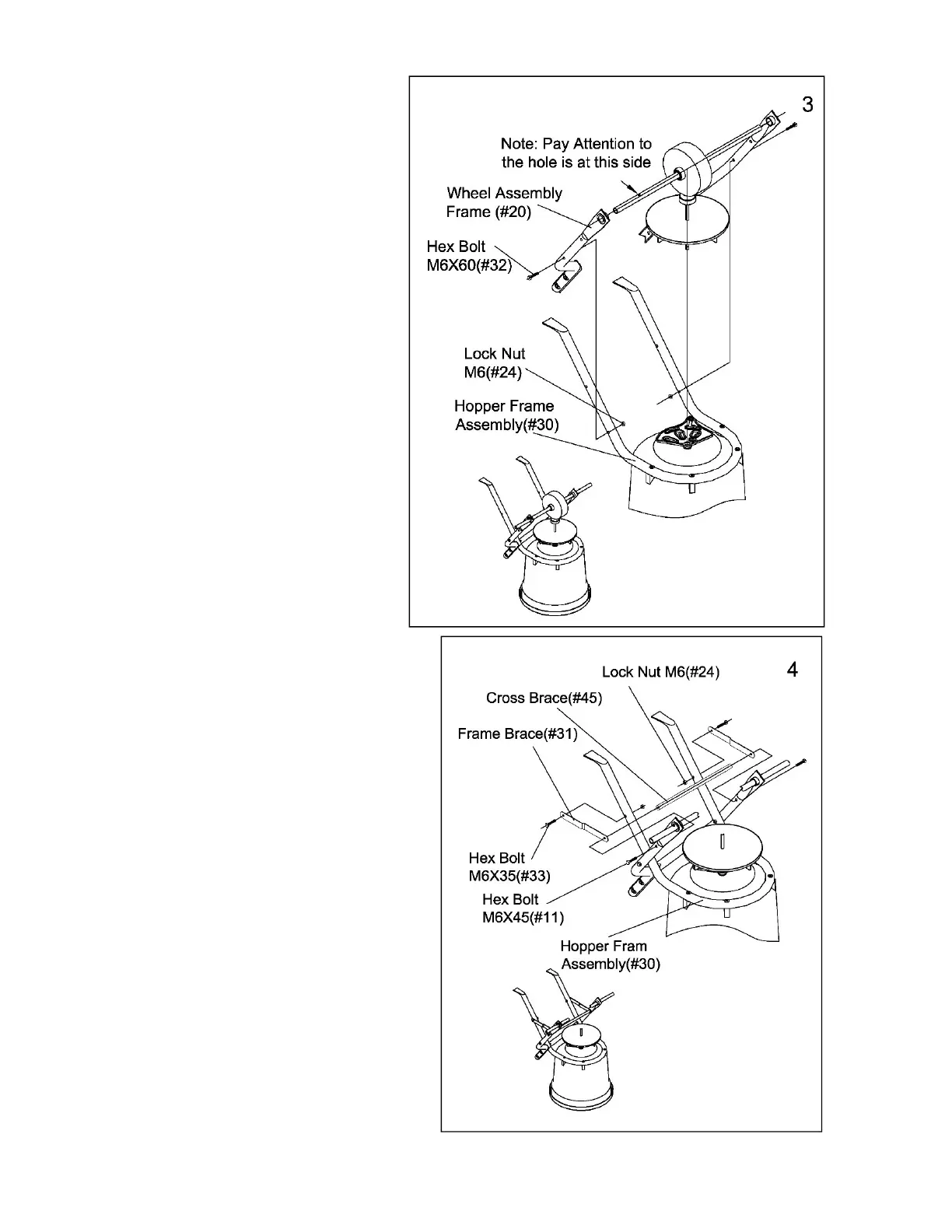

3.a) Find the two Wheel Assembly
Frames (#20).
b) Insert M6 x 60 bolt (#32) through
the right hand Wheel Assembly
Frame (#20) and into the Hopper
Frame Assembly (#30). Secure with
Lock Nut M6 (#24). Repeat on left
side.
NOTE: The nuts and bolts do not
have to be completely tightened yet.
4. a)
Attach one end of each Frame Brace
(#31) to the outside of the Hopper Frame
Assembly (#30) using bolt M6 x 35 (#33)
and M6 lock nut (#24).
b) Push a M6 x35 bolt (#33) through
the first hole above the axle in right hand
Wheel Assembly Frame (#20). Pass bolt
through the Frame Brace (#31) and into
the end of the Cross Brace (#45).
Repeat with the left side.
NOTE: The nuts and bolts do not have
to be completely tightened yet.
