Titan 50SPREAD - Assembly Instruction; Attach Frame to Hopper; Install Impeller onto Gear Box

3
ASSEMBLY INSTRUCTION

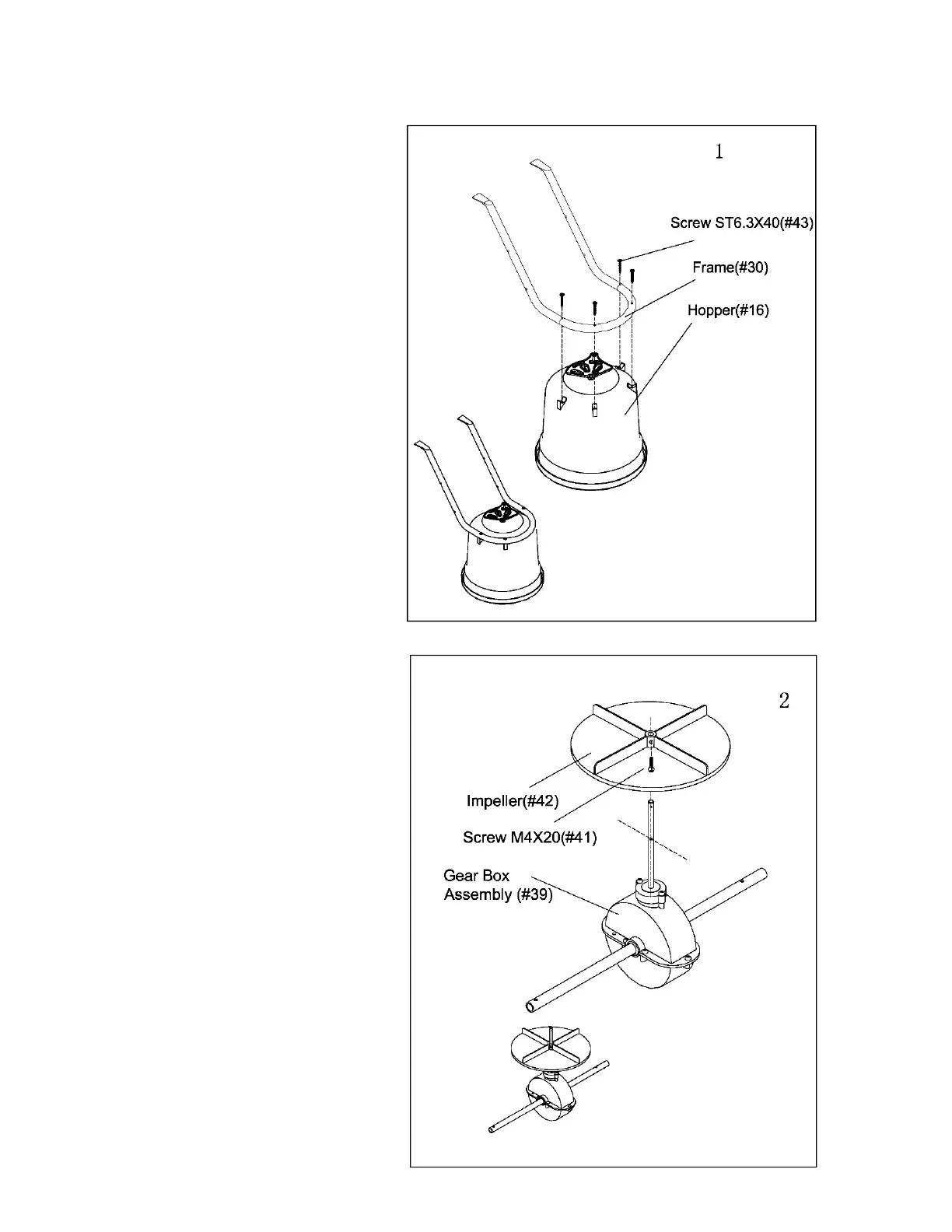

1. Turn Hopper (#16) upside down
and attach Frame (#30) using four
screws ST6.3 x 40 (#43).
2.a) Slide the Impeller (#42) onto the
spindle of the Gear Box Assembly
(#39).
b) Insert Screw M4 x20 (#41)
through the Impeller and the top of
the gear box spindle.
