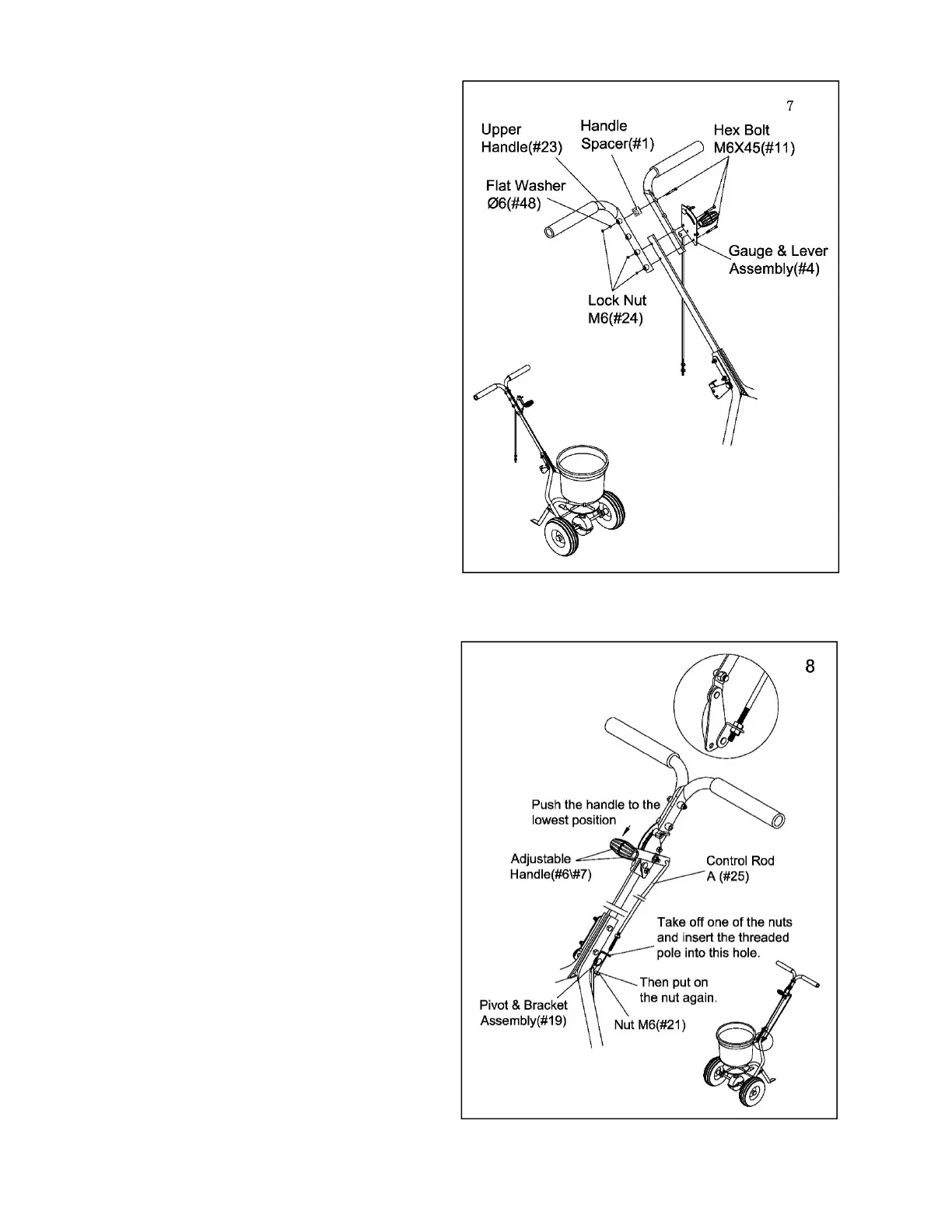

7. a) Insert Bolts M6 x 45 (#11) through the
Upper Left Handle (#23), then through the
Handle Spacer (#1) and Upper Handle on
the Right side, screw with Flat Washer Ø 6
(#48) and Lock Nut M6 (#24). Slide Gauge
and Lever Assembly (#4) onto the bolts and
fasten with Lock Nut M6(#24).
b) Tighten lock nuts securely.
8. a) Push the Adjustable Handle (#6, #7) to
the lowest position.
b) Insert the upper end of the Control Rod
(#25) into the hole at the end of the
Adjustable Handle (#6, #7).
c)Take lower nut (#21) off the bottom end
of the Control Rod (#25) and insert rod into
the hole in the Pivot and Bracket Assembly
(#19).
d)Screw nut back into place.
