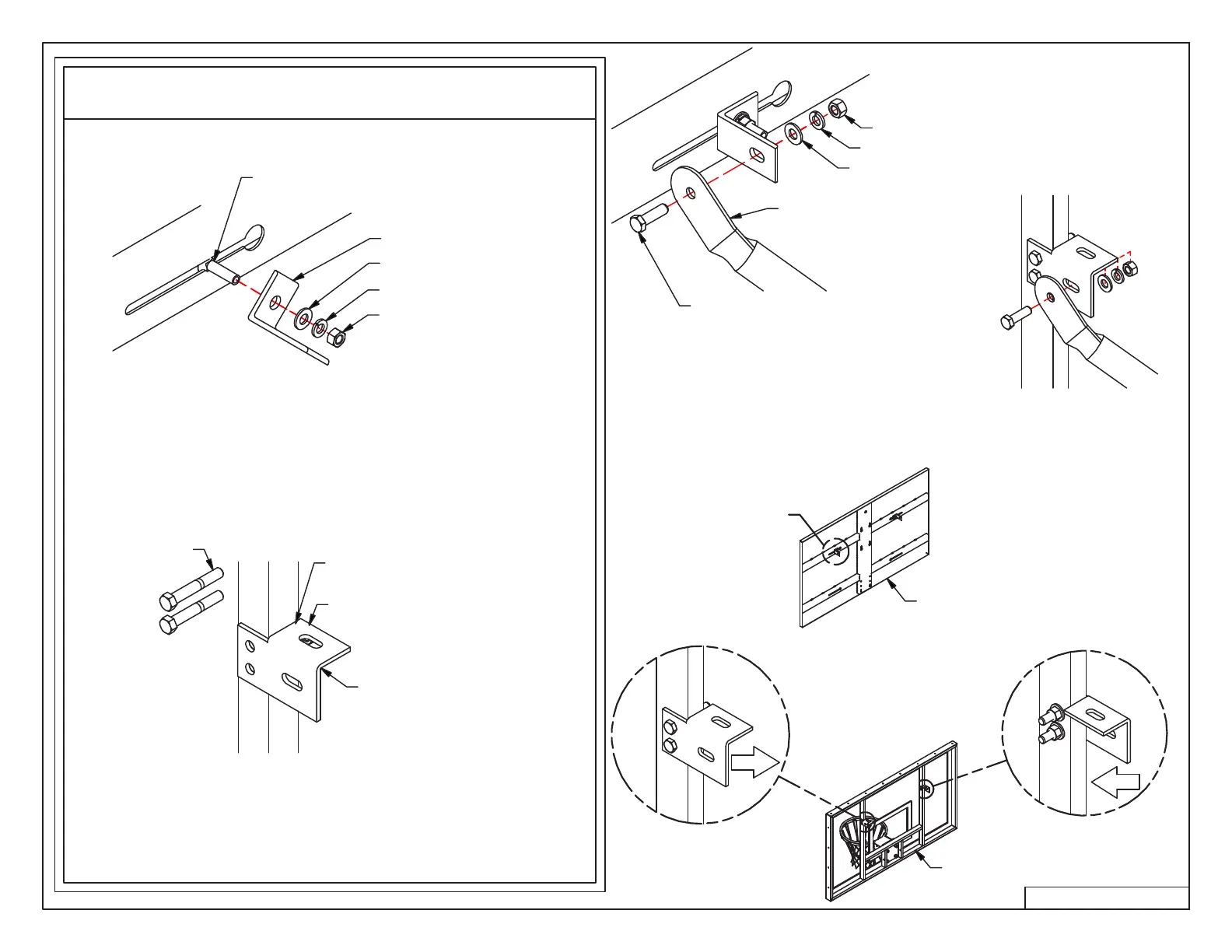

DETAIL W
SCALE 0.04 : 1
E1
4 OF 5
PAGE
E1
RECTANGULAR STEEL BOARD
E2
PERFORATED BOARD OR ACRYLIC BOARD
(BRACKET & HARDWARE PROVIDED W/BOARD)
BRACE TO BOARD MOUNTING OPTIONS
DETAIL F
UPPER BRACE ATTACHMENT
DETAIL E
M10 x 60mm BOLT, SS
M10 NYLOCK NUT, SS
M10 WASHER, SS
NOTE ARROW
ORIENTATION
PERFORATED & ACRYLIC BOARD
RECTANGULAR STEEL BOARD
3/8 STD WASHER-ZP-GrNC
3/8 LOCK WASHER-ZP-GrNC
3/8 - 16 Hex Nut - ZP - GrNC
850RB-BB MOUNTING TAB
3/8-16 x 1-1/2 CARRIAGE BOLT-ZP
3/8 - 16 Hex Nut - ZP - GrNC
3/8 LOCK WASHER-ZP-GrNC
3/8 STD WASHER-ZP-GrNC
1.315 DIA BACKBOARD BRACE
3/8-16 x 1-1/4 HEX CAP SCREW-ZP-GrNC
