Titan 660 - Page 5

Y
Y
5 OF 5
PAGE

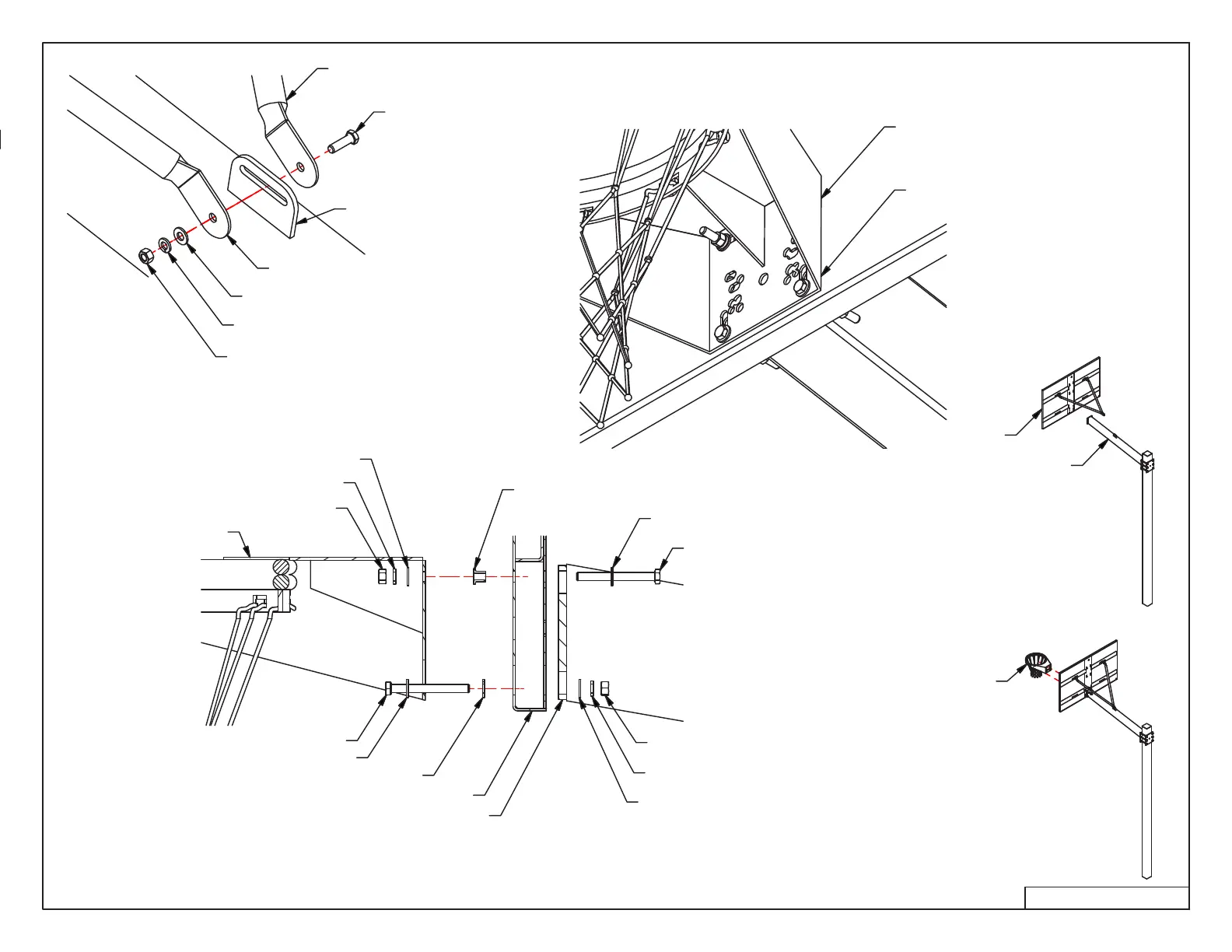

ALL THE HARDWARE IN THIS DETAIL EXCEPT FOR
THE TEE NUTS IS SUPPLIED WITH THE GOAL
UBG-500
3/8-16 x 3-1/2 HEX CAP SCREW-ZP-GrNC
3/8 SAE WASHER-ZP-GrNC
3/8 STD WASHER-ZP-GrNC
3/8 SAE WASHER-ZP-GrNC
BACKBOARD
BACKBOARD MTG PLATE
3/8" MEDIUM SPLIT LOCK WASHER, ZP
3/8"-16 FINISH HEX NUT, ZP
3/8"-16 FINISH HEX NUT, ZP
3/8" MEDIUM SPLIT LOCK WASHER, ZP
3/8 SAE WASHER-ZP-GrNC
3/8"-16 SLAB BASE TEE NUT, SS
3/8 SAE WASHER-ZP-GrNC
3/8-16 x 3-1/2 HEX CAP SCREW-ZP-GrNC
DETAIL G
BRACES TO OUTRIGGER ATTACHMENT
1.315 DIA BACKBOARD BRACE
1.315 DIA BACKBOARD BRACE
OUTRIGGER BRACE TAB
3/8 STD WASHER-ZP-GrNC
3/8 LOCK WASHER-ZP-GrNC
3/8 - 16 Hex Nut - ZP - GrNC
3/8-16 x 1-1/4 HEX CAP SCREW-ZP-GrNC
OUTRIGGER
BOARD
UBG-500
3/8" WASHERS PLACED BETWEEN
THE GOAL & THE BACKBOARD
3/8" TEE NUTS PLACED BETWEEN
THE GOAL & THE BACKBOARD
SECTION B-B
DETAIL C/D
