3

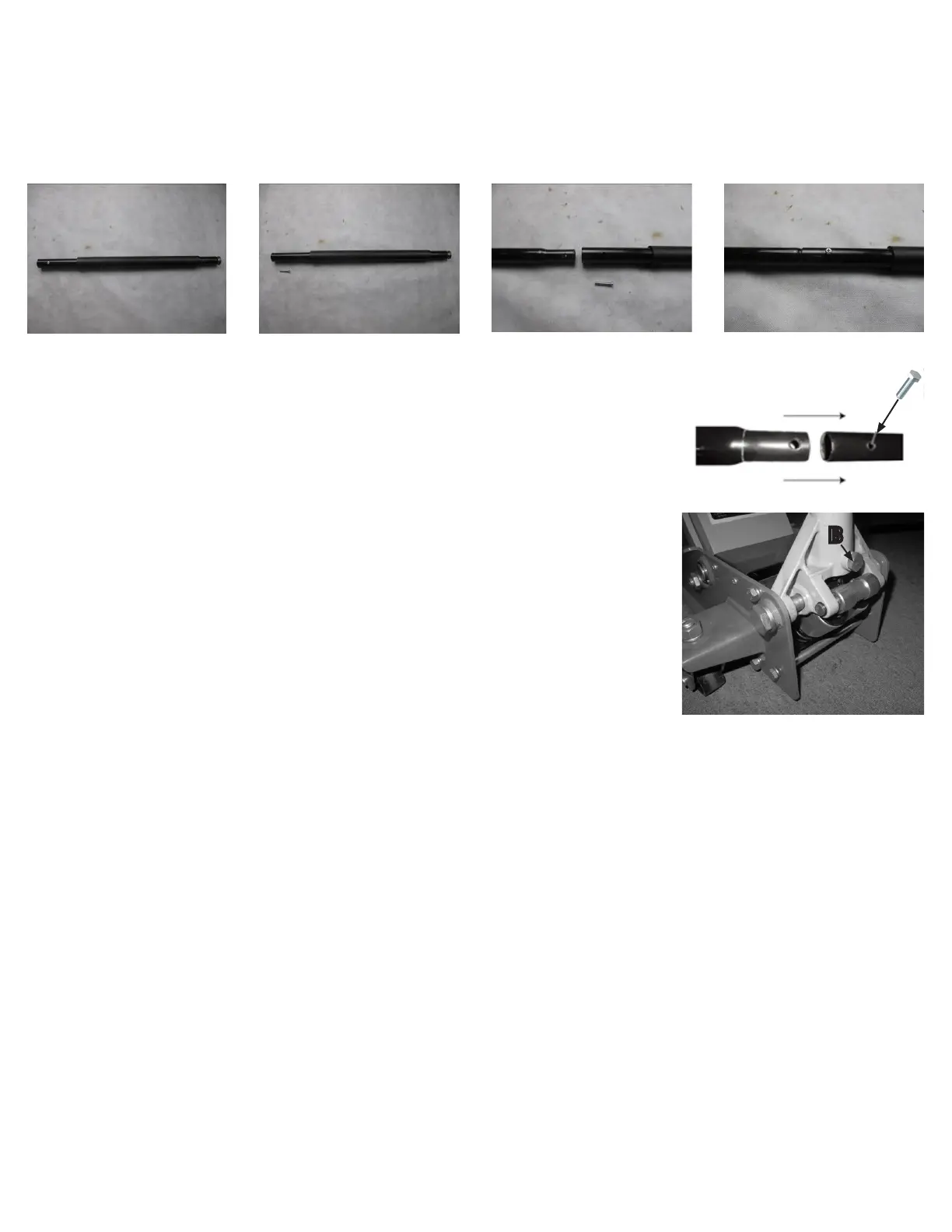

ASSEMBLY
1) The jack is comprised the following parts, Jack body, Two-part pumping handle.
2) Unscrew the bolt from handle tube 1, Insert the upper handle into the lower handle.
Secure the two pieces together with the bolt.
(1) Handle Tube 1
3) The handle socket is pressed down and supported by nylon
supporting block in the package during transportation. Before
assembling, please take out the nylon supporting block.
4) Undo the screw(B) in the handle socket, until it no longer
protrudes into the handle socket.
5) Insert the pump handle into the handle socket hole completely.
6) Ensure that the handle is correctly inserted into the socket,
then tighten the handle socket screw (B). Please make sure
that the handle can be turned smoothly.
(2) Unscrew the bolt from
the handle
(3) Insert the upper tube (4) Tighten the bolt
B
