A
dding Engine Oil
1. Before the first use, drain any oil that might be inside the crankcase, and refill using the bottle of oil
that is supplied with your driver. We suggest adding 2.7 US ounces and then checking the oil. Place
the oil level gauge back in the oil filler neck, BUT DO NOT SCREW IN WHILE CHECKING THE OIL
LEVEL, OR YOU WILL GET A FALSE READING.
2. To avoid damage to the engine, always check the engine oil before starting the driver. Be sure the
engine oil level is adequate.
3. For every 10 hours of use, it is necessary to check the oil level.

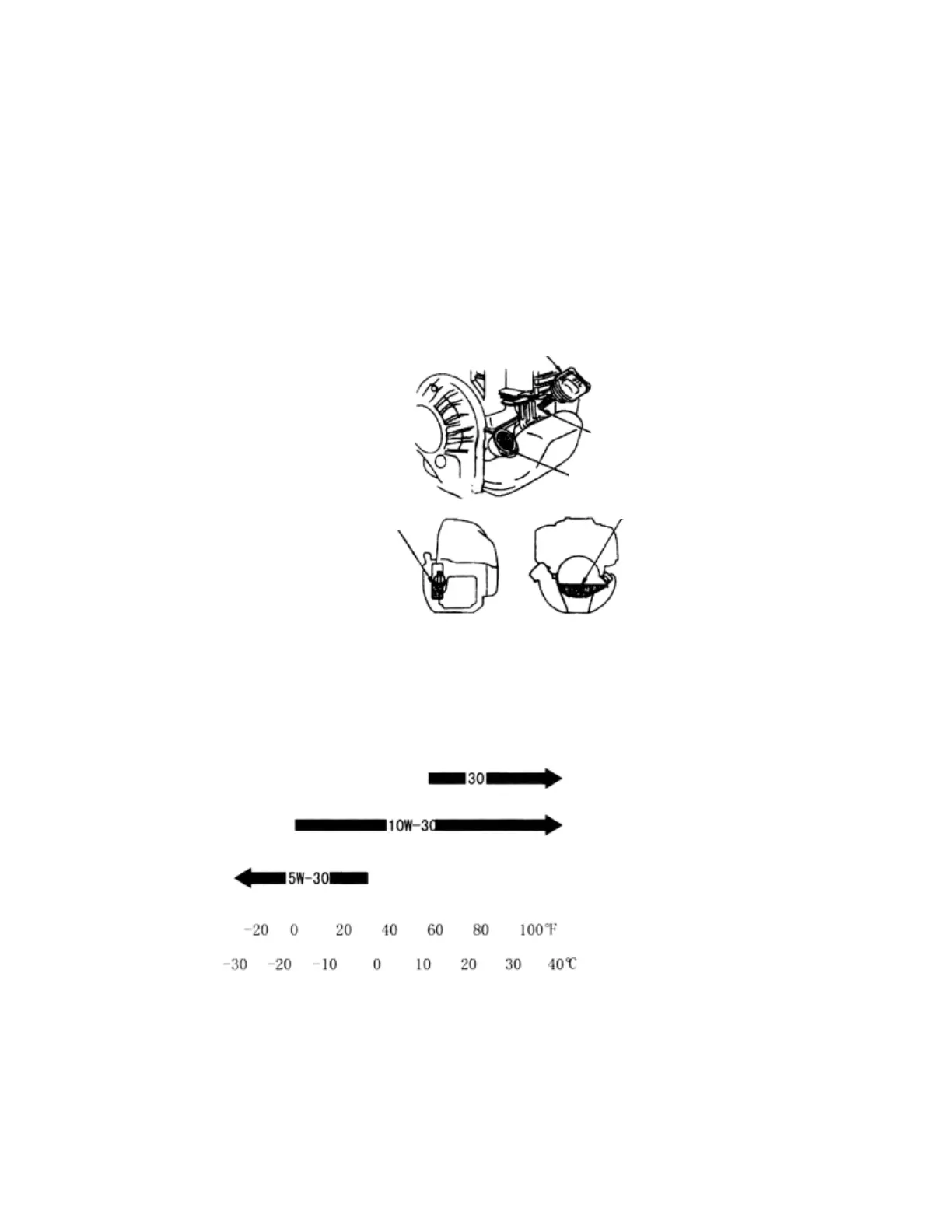

4. To check the oil, place the driver horizontally. Unscrew the oil level gauge, and check the oil level as
shown below. If the oil level is low, add oil. If the oil is dirty, change the oil.
The recommended environmental temperature range of the machine is 5° to 105° F. We recommend the use
of SAE 10W-30 engine oil, which equals to API classification SJ.
See SAE Engine Oil Consistency Table below.
Check
ing the Air Filter
1. Remove the air filter cover, and check to see if the air filter is clean. If it is dirty, clean it.
2. After checking the air filter, reinstall the air filter cover.
Upper Limit
Upper Limit
Oil Filler
Minimum
Oil Level Gauge
SAE Engine Oil Viscosity Grade
Environmental Temperature
