Setup
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to the power supply before it is
completely assembled!
NOTE: Always lay the product with its feet (3) on a flat, stable
surface while working on the spindle or the guard.
Auxiliary handle
For reasons of safety the auxiliary handle (9) must be assembled when using the
product.
1. Screw the auxiliary handle (9) clockwise in one of the mounting threads (2)
(Figs. 1-3).
2. Make sure the auxiliary handle (9) is securely fastened.

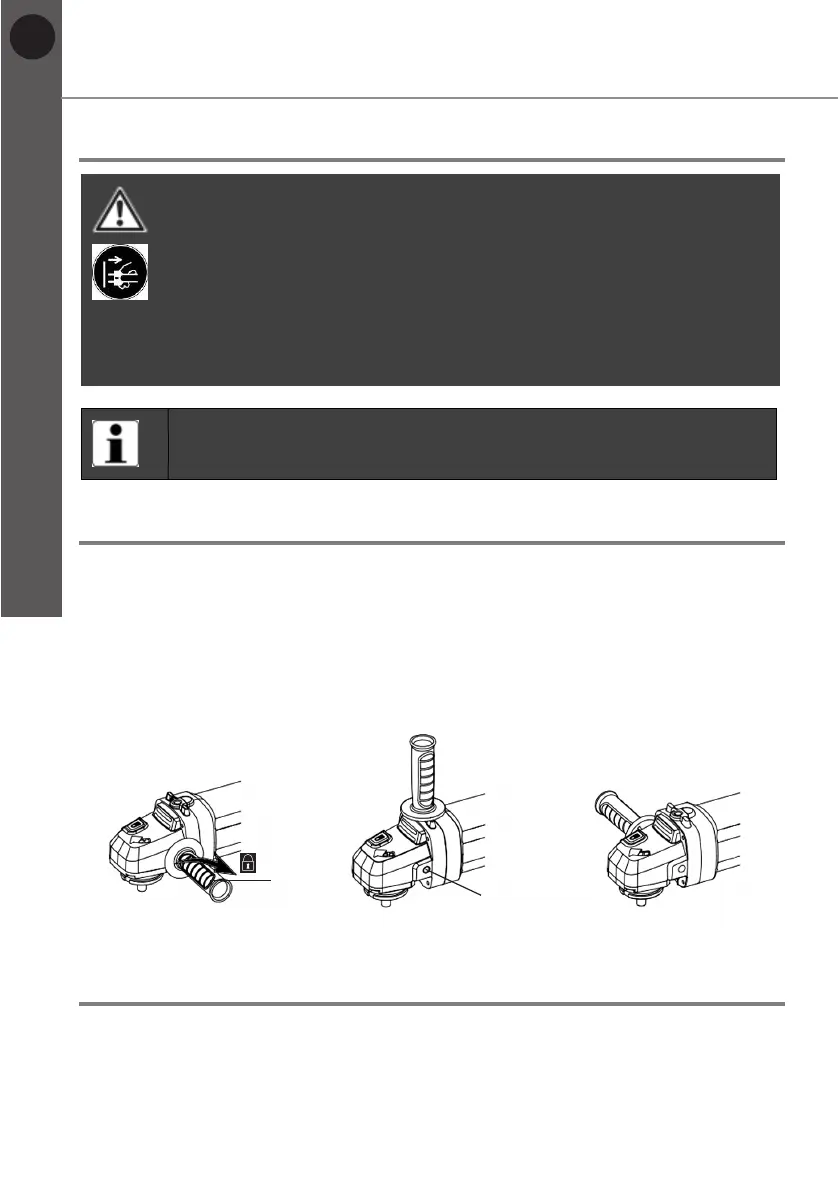

Fig. 1 Fig. 2 Fig. 3
Safety guard
Attach the respective guard (13 / 14) according to the intended application.
1. Use the closed cutting guard (13) for cutting-off applications (Fig. 4).
2. Use the opened grinding guard (14) for grinding applications (Fig. 5).
