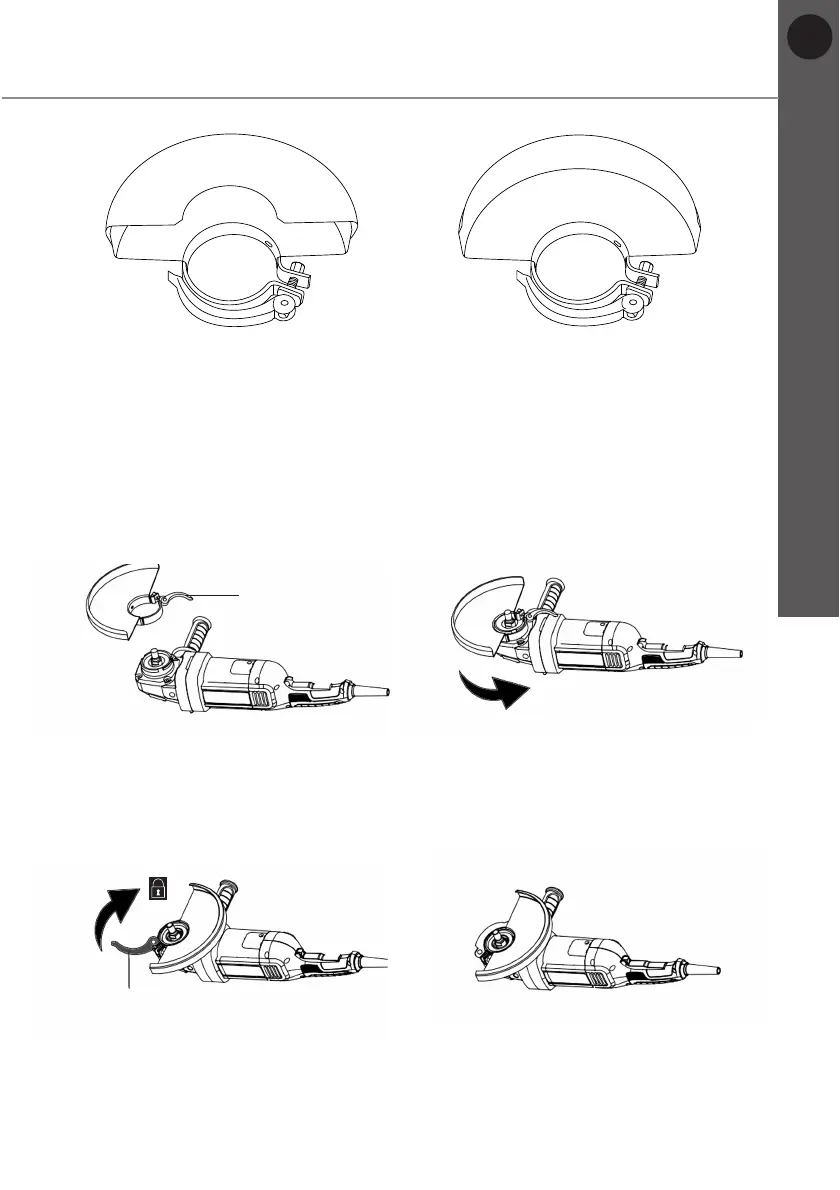

Fig. 4, cutting guard (13) Fig. 5, grinding guard (14)
Attaching
1. Open the clamp lever (14a) on the guard.
2. Align the noses on the ring to the notches on the spindle collar, and then
rotate the guard (Figs. 6, 7).
Fig. 6 Fig. 7
3. Close the clamp lever (14a) (Figs. 8, 9).
Fig. 8 Fig. 9
