Installation Manual-TMRA
Redefine your comfort zone. ™ | www.titus-hvac.com

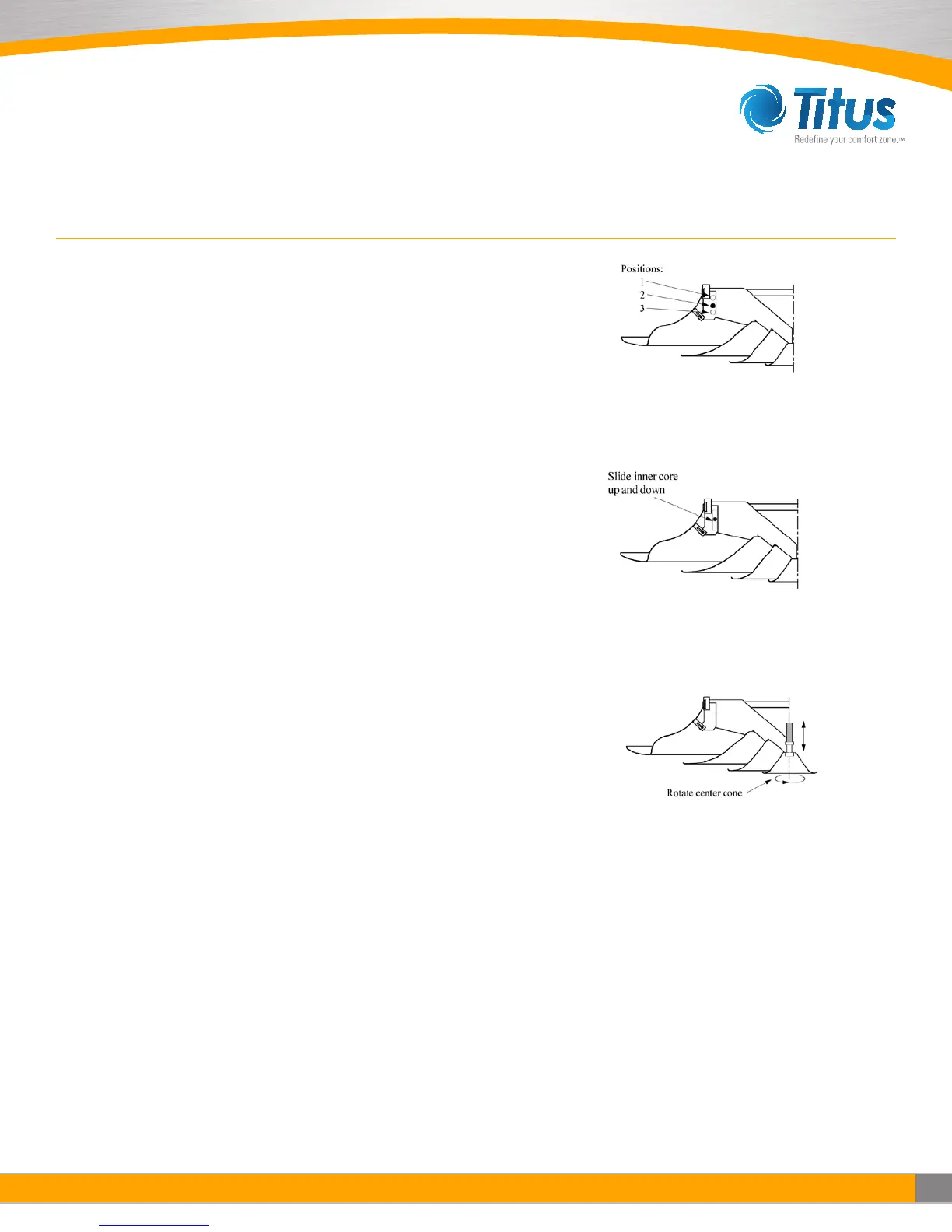

Adjusting Inner Cone Position (TMRA only)
TYPE 1 INNER CONE:
The type 1 inner cone assembly has three fixed cone positions. The cone
position is adjusted by removing the cone assembly and repositioning it.
To reposition the inner cone assembly, remove the positioning screws and
align the screw hole with the new position desired. Insert and tighten the
screws in the new position.
TYPE 2 INNER CONE: (Steel only, sizes 6”-12”)
The type 2 inner cone assembly is adjusted by sliding the inner cones up
or down as desired.
To reposition the cones loosen the positioning screws and slide the cones
to the new position. Tighten the screws to secure cones in place.
TYPE 3 INNER CONE:
(Steel only)
The type 3 inner cone assembly is adjusted by rotating the center cone.
To reposition the cones, rotate the center cone clockwise or counter
clockwise to raise or lower the cones.
Type 1: 3 Fixed Positions
Type 2: Sliding
Type 3: Rotating
