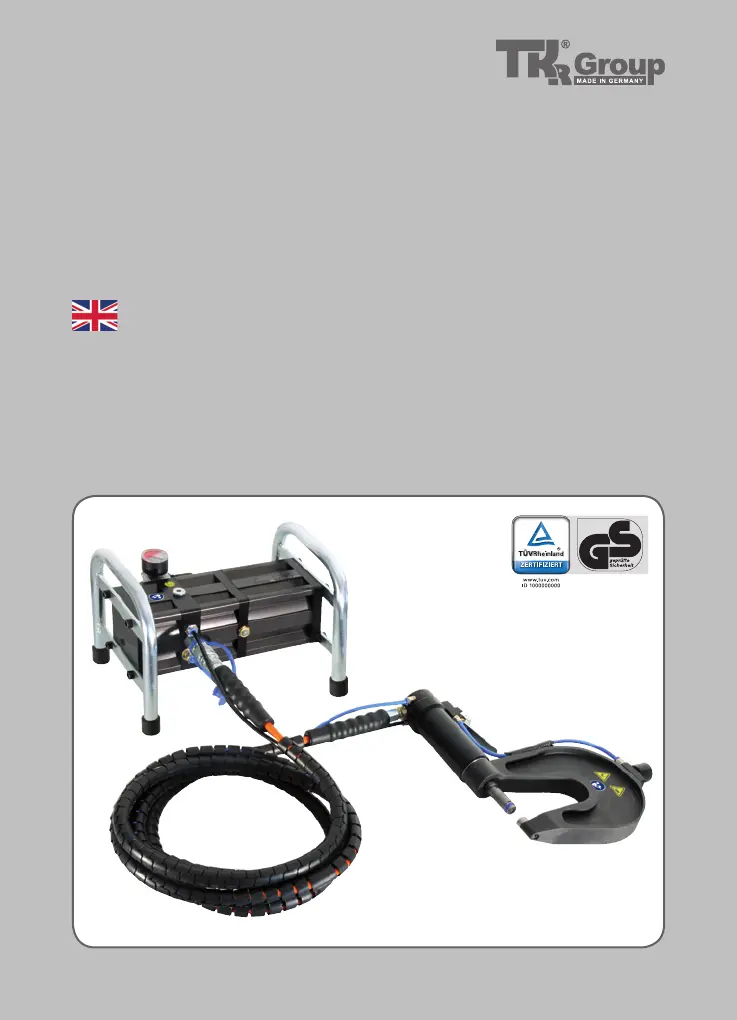

TKR Group PNP 90 SNW-RIV User Manual (English)

Questions and Answers:

M
michael37Aug 4, 2025
What to do if the TKR Group PNP 90 SNW-RIV Rivet Tools pump does not run?
- J
  John WhiteAug 4, 2025
  If the TKR Group Rivet Tools pump isn't running, first ensure compressed air is connected. Check that the control lines are correctly connected and properly seated. Verify sufficient air pressure from the air supply and that the air pressure is correctly set. Also, confirm the hydraulic hose is connected as described in the instruction manual. If none of these resolve the issue, the drive plunger may be defective, requiring repair through the manufacturer.
P
Patricia GilmoreAug 12, 2025
Why won't the hydraulic pump on my TKR Group PNP 90 SNW-RIV Rivet Tools shut off?
- B
  Brian ThomasAug 12, 2025
  If the hydraulic pump on your TKR Group Rivet Tools won't shut off, check that the control hoses are correctly connected. If the hoses are fine, the issue may be defective control valves, which require repair through the manufacturer. Also, inspect the rivet mandrel or rivet die for defects or adhesive residue; replace or clean them as needed. Insufficient press pressure, caused by too little or incorrectly set air pressure, or too little oil in the pump, can also prevent shutoff. Check the oil level and top up if necessary. If there's an oil or air leak from the pump, it needs repair through the manufacturer.
D
Diana HornAug 19, 2025
What causes an oil leak in TKR Group Rivet Tools?
- J
  Jim GibsonSep 12, 2025
  If there's an oil leak in your TKR Group Rivet Tools, the hose or coupling may be defective and require replacement. If the pump is losing oil, it needs repair through the manufacturer.
T
Tyler TorresAug 27, 2025
What to do if the rivet plunger travels too slowly on TKR Group PNP 90 SNW-RIV Rivet Tools?
- B
  brandi41Aug 27, 2025
  If the rivet plunger on your TKR Group Rivet Tools travels too slowly or not at all, start by checking the oil level in the pump and topping it up if necessary. If the oil level is sufficient, the hydraulic seal or valves in the pump may be defective, requiring repair through the manufacturer.

TKR Group PNP 90 SNW-RIV Specifications

General

Model	PNP 90 SNW-RIV
Brand	TKR Group
Rivet Type	Blind Rivets
Rivet Material	Aluminum, Steel, Stainless Steel
Rivet Diameter Range	2.4-4.8 mm
Material	Aluminum alloy
Type	Pneumatic Riveter

Summary

Information regarding this manual

1.1 Information regarding this manual

Legislation requires worker protection; training is available. Manufacturer reserves modification rights.

1.2 Explanation of symbols

Explains internationally recognized warning symbols, safety icons, and instructional symbols used throughout the manual.

1.3 Labelling

Details the labels on the stamping and riveting tool, identifying components like name, serial number, and CE mark.

Operating principles

2.1 Operating principles

Describes the pneumatic/hydraulic stamping and riveting tool's function, components, and the pressure intensification process.

2.2 Accessories and specifications

Lists permissible rivet accessories, required hydraulic oil, max air pressure, air quality, temperature range, and safety equipment.

2.3 Noise and vibration values

Provides the noise emission level (LPAI) and vibration emission value (a) for the PNP 90 SNW-RIV tool.

2.4 Safety instructions

Crucial safety guidelines for tool operation, including using approved accessories, PPE, two-hand control, and environmental limits.

2.5 Fundamentals of riveting tool handling

Safe handling practices: routing lines, checking air pressure, using clean air, and disconnecting pressure when idle.

2.6 Maintenance

Details maintenance procedures: keeping parts clean, performing work with disconnected power, and proper disposal of used oil.

Technical data

3.1 Technical Data Pump PNP 90

Specifies dimensions, weight, maximum input pressure, and maximum operating pressure for the PNP 90 hydraulic pump.

3.2 Technical Data Rivet clamp SNW-RIV

Details dimensions, clamp opening, opening depth, stroke, press force, and weight for the SNW-RIV rivet clamp.

Riveting tool operation

4.1 Initial start-up

Guides through the initial setup, focusing on connecting the compressed air supply to the pressure reducing valve.

4.2 Riveting tool preparation and connection

Instructions for preparing and connecting pneumatic and hydraulic hoses, ensuring secure couplings and checking for damage.

4.3 Riveting tool operation

Covers the core riveting process: inserting rivets, positioning the tool, ensuring correct alignment, and checking results.

4.4 Hydraulic pump maintenance

Procedure for draining and filling hydraulic oil, including oil specifications, capacity, and contamination prevention.

4.5 Riveting tool storage

Guidelines for storing the tool in its case, emphasizing hose protection and preventing kinks for safe storage.

Troubleshooting

5.1 Troubleshooting

Lists common problems, their causes, and remedies for pump and rivet issues, with page references for solutions.

5.2 Warranty

Details the 24-month warranty, its exclusions (wear parts), validity conditions, and contact information for service.

EC Declaration of Conformity

Official statement of compliance with EU Machinery Directive and relevant safety standards for the pneumatic/hydraulic tool.
