Creation: 01.31 - 2014
1-1-19
GPU - 406
(5) Dial with Pushbutton
The dial with a built-in push button is used for making on-screen selections and GPU servicing.
When the 28VDC output is active, the push button of the dial toggles between adjusting the DC
output current limit and scrolling the engine information display.

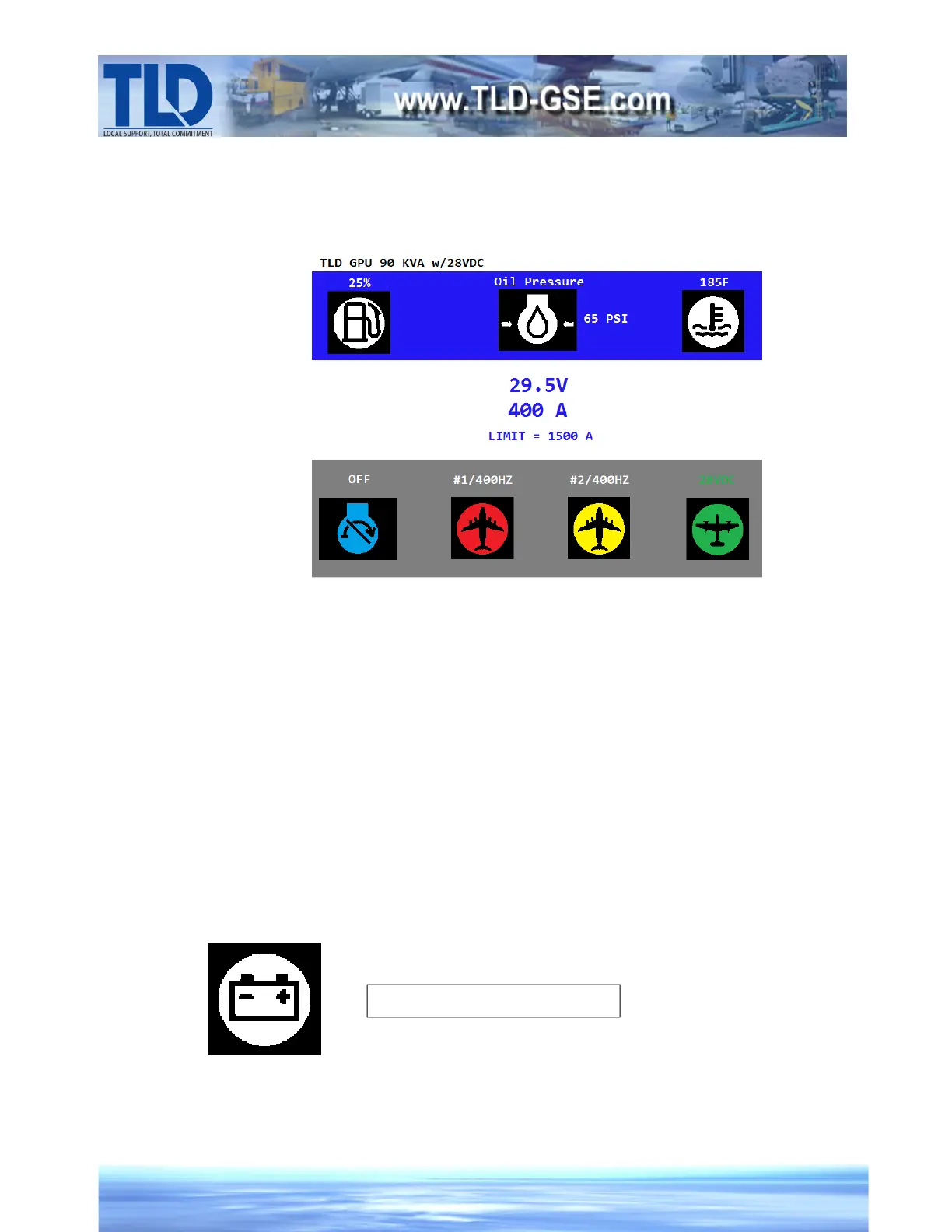

DC OUTPUT DISPLAY WITH LIMIT AT 1500 AMPS
FIGURE 11
With the 28VDC output on, press the dial push button to enter the output current limit adjustment.
Rotate the dial left or right to increase or decrease the DC output current limit. Push the dial again
to exit this adjustment.
When the 28VDC output is off, rotating the dial only scrolls the engine information display. See
the following section for more information on the engine information display.
(6) LCD Display
The GCM is equipped with a 5.7” high-contrast LCD display that can be visible even in direct
sunlight. It displays all of the operating information to the operator. This information includes
output voltage, output current, output power, and any information related to an output power
fault. It also functions as basic engine instrumentation by providing useful information such as
engine speed, engine temperature, charging voltage, and diagnostic trouble codes.
Diesel Engine Charging Voltage
