TLV COSR-3 User Manual

172-65174MA-11 (COSR Pressure Reducing Valve) 16 Feb 2022
4
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
DO NOT use the trap in excess of the maximum operating pressure
differential; such use could make discharge impossible (blocked).
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION

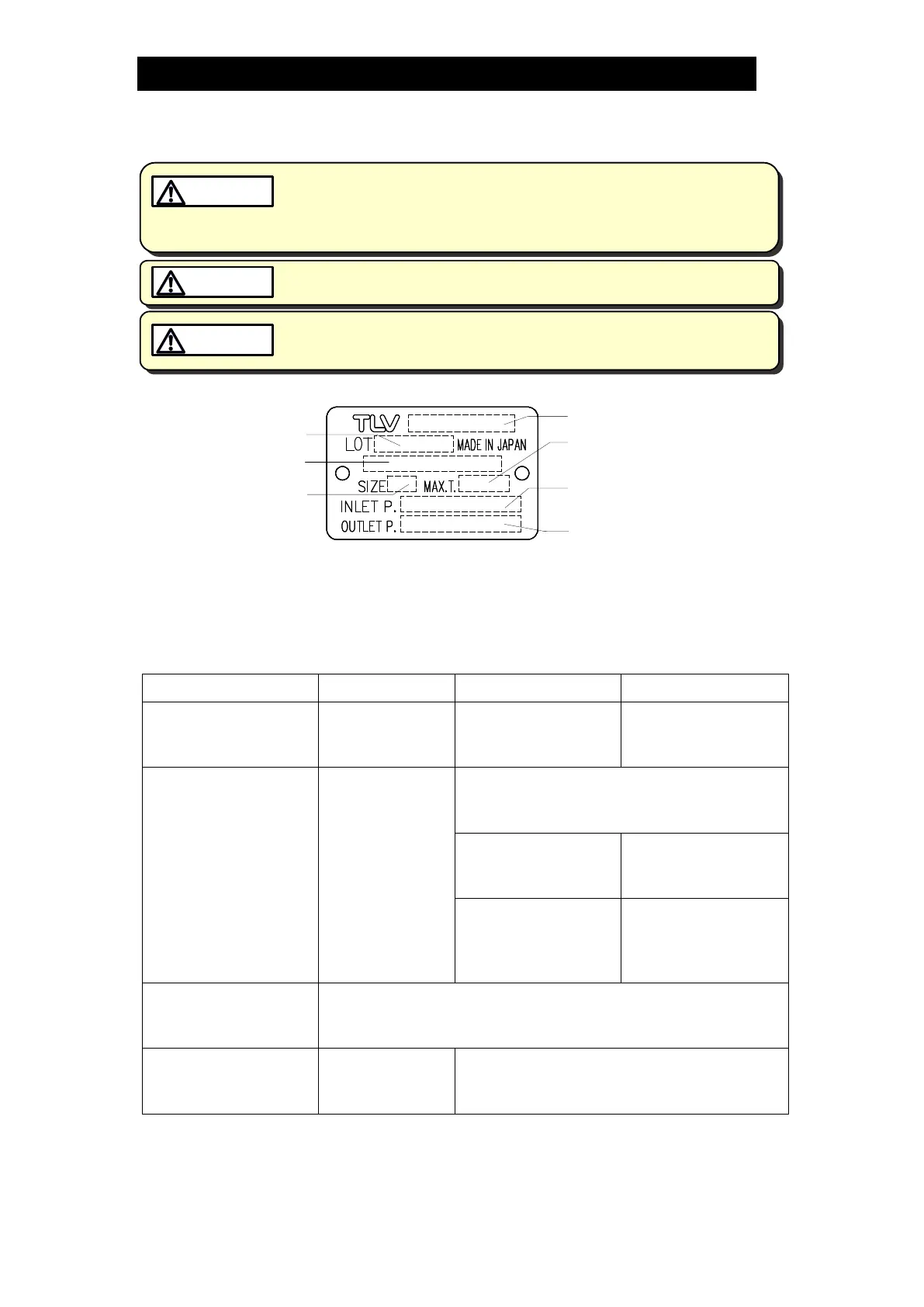

Refer to the product nameplate for detailed specifications.
* Valve No. is displayed for products with options. This item is omitted from the nameplate when
there are no options.
Acceptable Operating Range
Model
COSR-3
COSR-16
COSR-21
Primary Pressure Range
0.1 to 0.3 MPaG
(15 to 45 psig)
0.2 to 1.6 MPaG
(30 to 250 psig)
1.35 to 2.1 MPaG
(190 to 300 psig)
Adjustable Pressure
Range
(All conditions must be
met)
0.01 – 0.05 MPaG
(1.5 to 7 psig)
Within 10 to 84% of the primary pressure
Minimum adjustable
pressure of 0.03 MPaG
(5 psig)
Minimum adjustable
pressure of 0.55 MPaG
(80 psig)
Pressure differential
between
0.07 – 0.85 MPa
(10 120 psi)
Maximum pressure
differential of 0.85
MPa (120 psi)
Maximum Operating
Temperature
220 °C (428 °F)
Minimum Adjustable
Flow Rate
5% of rated flow
rate
5% of rated flow rate; 10% of rated flow rate for
sizes 65 mm (2
1
/
2
in) and larger
(1MPa = 10.197kg/cm
2
)
Model
Nominal Diameter
Maximum Operating
Temperature
Valve No.*
Secondary Pressure
Adjustable Range
Primary Pressure
Range
Production Lot No.

TLV COSR-3 Specifications

General

Brand	TLV
Model	COSR-3
Category	Control Unit
Language	English
