3
Product Specification
Ozone maximum output: 250mg per hour.
Ambient operating temperature: 5 to 40
o
C.
Power requirement: 11 watts at maximum ozone output.
Maximum air flow: 10 litres per minute.
Power adapter rating: 18 VDC @ 0.83A (15 watts.
This unit is manufactured and conforms to:
Safety: BS EN 60335-1:2002. BS EN 60335-2-55:2003
EMC: EN 55015:2000. EN61000-3-2:2000. EN61000-3-3:1995
This unit meets the requirements of CE.
Installation and Setup
1. Your V
2
Ozone Generator can be placed on a flat horizontal
surface or mounted on a vertical wall or panel using the
included mounting brackets. The mounting brackets, if
required, should be attached to the case as shown using the
screws provided (see fig 1). Please Note: The precision
screwdriver included is not for this purpose and should
only be used for ozone cell maintenance.

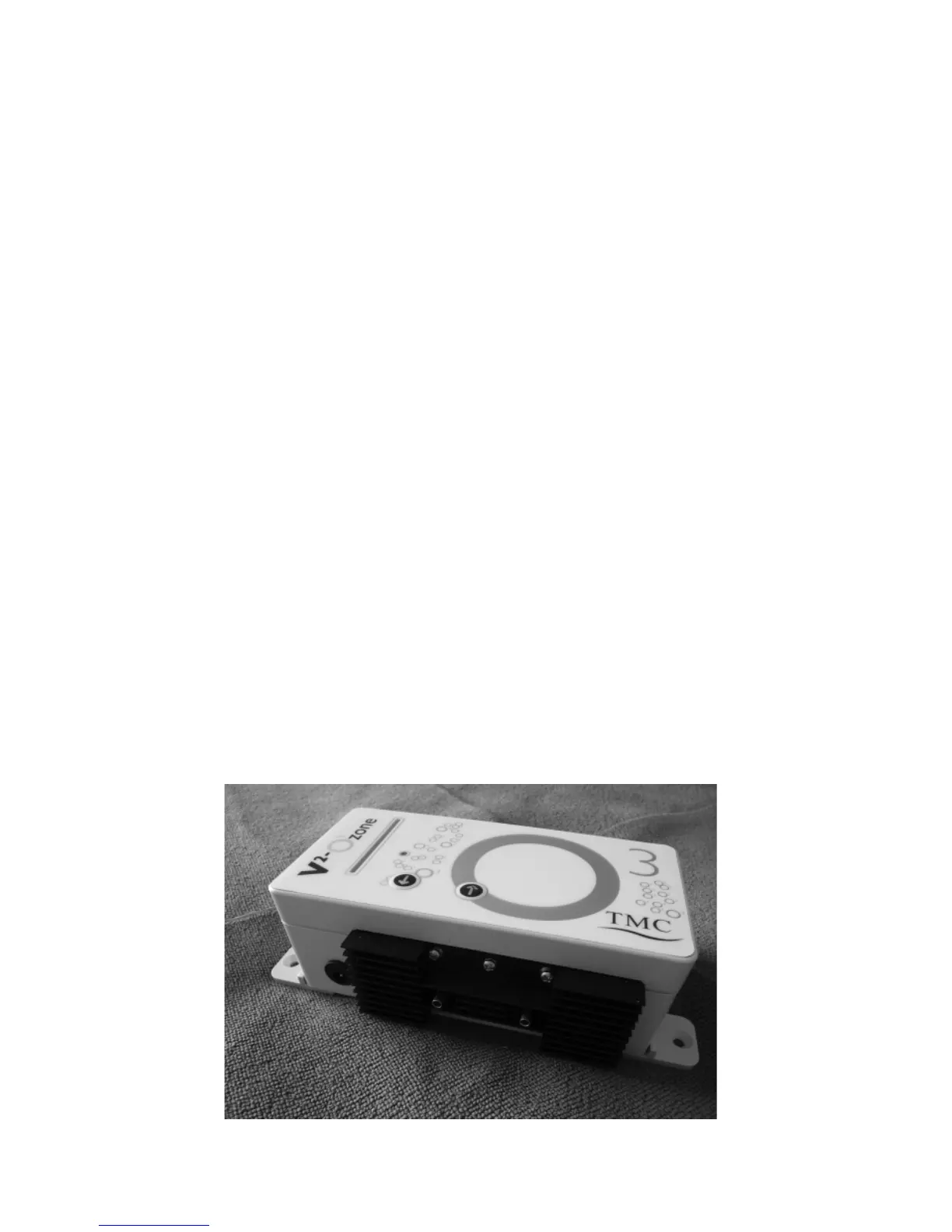

Figure 1
