TMC V2 Pure User Manual

3
1. Wall mounting bracket.
2. Feed water (mains water)
inlet (to order replacement 90°
hosetail including hosetail locking
nut order code 5873).
3. 10” 5 micron sediment filter
housing (transparent housing)
(order code 5870).
4. Filter housing ‘O’ ring A (not
shown - on the threaded part of
the housing) (order code 5883).
5. Filter housing ‘O’ ring B (not
shown - inside housing lid) (order
code 5884).
6. 10” 5 micron sediment filter
cartridge (order code 5863).
7. 10” active carbon block filter
housing (white housing) (order
code 5869).
8. 10” active carbon block filter
including 2pcs of flat rubber
gaskets (order code 5862).
9. Integrated pressure gauge (order
code 5887).
10. 90° connecting elbow hosetail
including locking nuts (order code
5873).
11. RO membrane water inlet 90°
connecting elbow hosetail
including locking nut (order code
5874).
12. RO membrane housing end cap.
13. RO membrane housing end cap ‘O’ ring (not shown -
inside housing end cap) (order code 5885).
14. RO membrane housing including end cap and ‘O rings
(order code 5871).
15. RO membrane housing ‘O’ ring (not shown - on the
threaded part of the housing) (order code 5886).
16. Pure water outlet.
17. Reject water 90° connecting elbow hosetail including locking
nut (order code 5874).
18. Flow restrictor with combined manual flush valve (50 = order
code 5879, 75 = order code 5880, 100 = order code 5881).
19. Flow restrictor connecting T piece and locking nuts (not
shown) (order code 5876).
20. Reject water outlet (to order a replacement flow
restrictor straight outlet hosetail order code 5872).
21. RO membrane - not shown (50 = order code 5858,
75 = order code 5859, 100 = order code 5860).
22. Self piercing “C” clamp water connection fitting (order code 5868).
23. 2m
1
/
4
" RO flexible tubing (WHITE feed water tubing) (order
code 5866 - per metre).
24. 2m
1
/
4
" RO flexible tubing (BLUE pure water tubing) (order
code 5865 - per metre).
25. 2m
1
/
4
" RO flexible tubing (RED reject water tubing) (order
code 5864 - per metre).
26. Filter housing tool (order code 5882).
27. Drain saddle clamp (order code 5867).
28. Dust prevention plugs (if installed).
29. TDS Monitor (order code 5857).

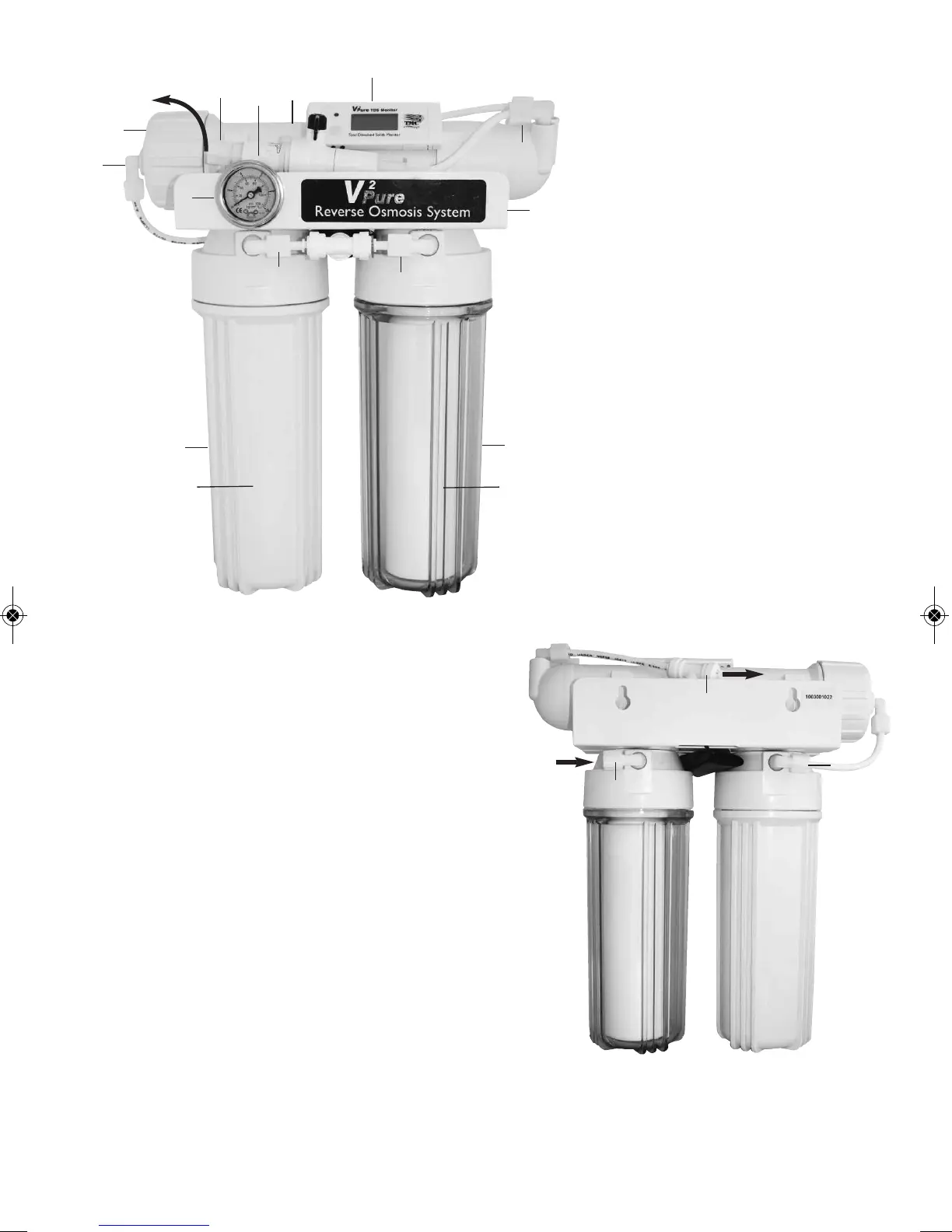

PARTS LIST - V
2
Pure Advanced
1
Reject Water
OUT
3
6
7
9
11
12
14
20
17
29
8
18
BACK VIEW
Feed
Water
IN
Pure Water
OUT
10
10
10
2
16
V2Pure RO System instructions multilingual v1-2010_Layout 1 21/05/2010 15:43 Page 5
