TMC V2 Pure User Manual

2

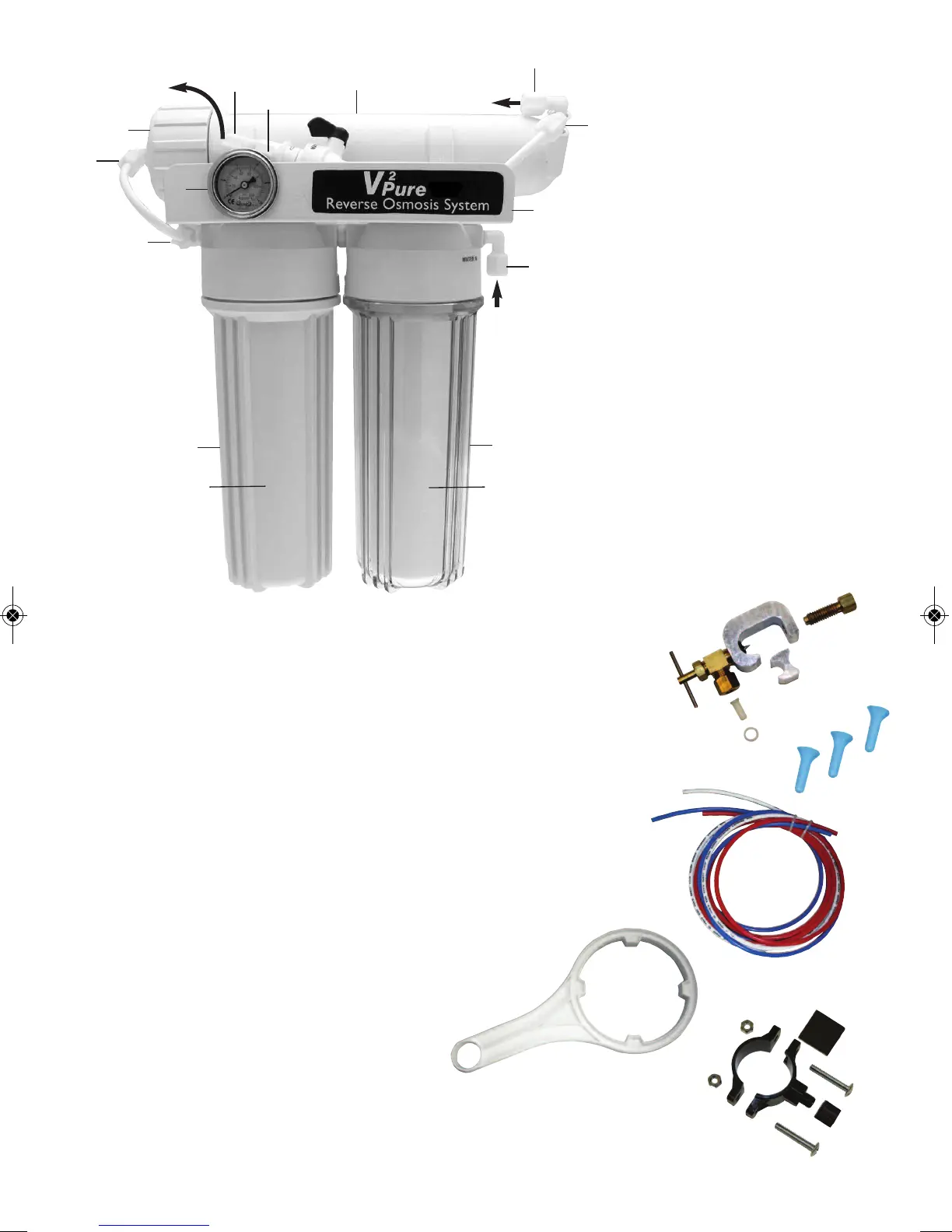

PARTS LIST - V
2
Pure
1. Wall mounting bracket.
2. Feed water (mains water)
inlet (to order replacement 90°
hosetail including hosetail locking
nut order code 5873).
3. 10” 5 micron sediment filter
housing (transparent housing)
(order code 5870).
4. Filter housing ‘O’ ring A (not
shown - on the threaded part of
the housing) (order code 5883).
5. Filter housing ‘O’ ring B (not
shown - inside housing lid)
(order code 5884).
6. 10” 5 micron sediment filter
cartridge (order code 5863).
7. 10” active carbon block filter
housing (white housing) (order
code 5869).
8. 10” active carbon block filter
including 2pcs of flat rubber
gaskets (order code 5862).
9. Integrated pressure gauge (order
code 5887).
10. 90° connecting elbow hosetail
including locking nuts (order
code 5873).
11. RO membrane water inlet 90°
connecting elbow hosetail
including locking nut (order code
5874).
12. RO membrane housing end cap.
13. RO membrane housing end cap ‘O’ ring (not shown - inside housing end cap)
(order code 5885).
14. RO membrane housing including end cap and ‘O rings (order code 5871).
15. RO membrane housing ‘O’ ring (not shown - on the threaded part of the housing)
(order code 5886).
16. Pure water outlet (to order a replacement 90° connecting elbow hosetail
including locking nut order code 5874).
17. Reject water 90° connecting elbow hosetail including locking nut (order code
5874).
18. Flow restrictor with combined manual flush valve (50 = order code 5879,
75 = order code 5880, 100 = order code 5881).
19. Flow restrictor connecting T piece and locking nuts (not shown) (order code 5876).
20. Reject water outlet (to order a replacement flow restrictor straight outlet
hosetail order code 5872).
21. RO membrane - not shown (50 = order code 5858, 75 = order code 5859,
100 = order code 5860).
22. Self piercing “C” clamp water connection fitting (order code 5868).
23. 2m
1
/
4
" RO flexible tubing (WHITE feed water tubing) (order code 5866 - per
metre).
24. 2m
1
/
4
" RO flexible tubing (BLUE pure water
tubing) (order code 5865 - per metre).
25. 2m
1
/
4
" RO flexible tubing (RED reject water
tubing) (order code 5864 - per metre).
26. Filter housing tool (order code 5882).
27. Drain saddle clamp (order code 5867).
28. Dust prevention plugs (if installed).
DIMENSIONS - V
2
Pure and V
2
Pure Advanced
1
2
F
eed
Water
I
N
Pure Water
OUT
R
eject Water
O
UT
3
6
7
9
10
11
12
14
16
2
0
18
17
8
350mm wide x 385mm high x 150 deep
26
28
22
27
25
24
23
V2Pure RO System instructions multilingual v1-2010_Layout 1 21/05/2010 15:43 Page 4
