First, Introduce of Display Content
1 Function of Display
Speed display、Battery indicator、Problems prompt、Mileage、
Accumulative mileage
2 Function of Control and SettingPower switch control、Wheel diameter
setting、Automatic dormancy time setting、Backlight brightness setting、
startup mode、 drive mode is set、voltage grade setting、controllerset
current limiting values
3 Communication Protocol: UART

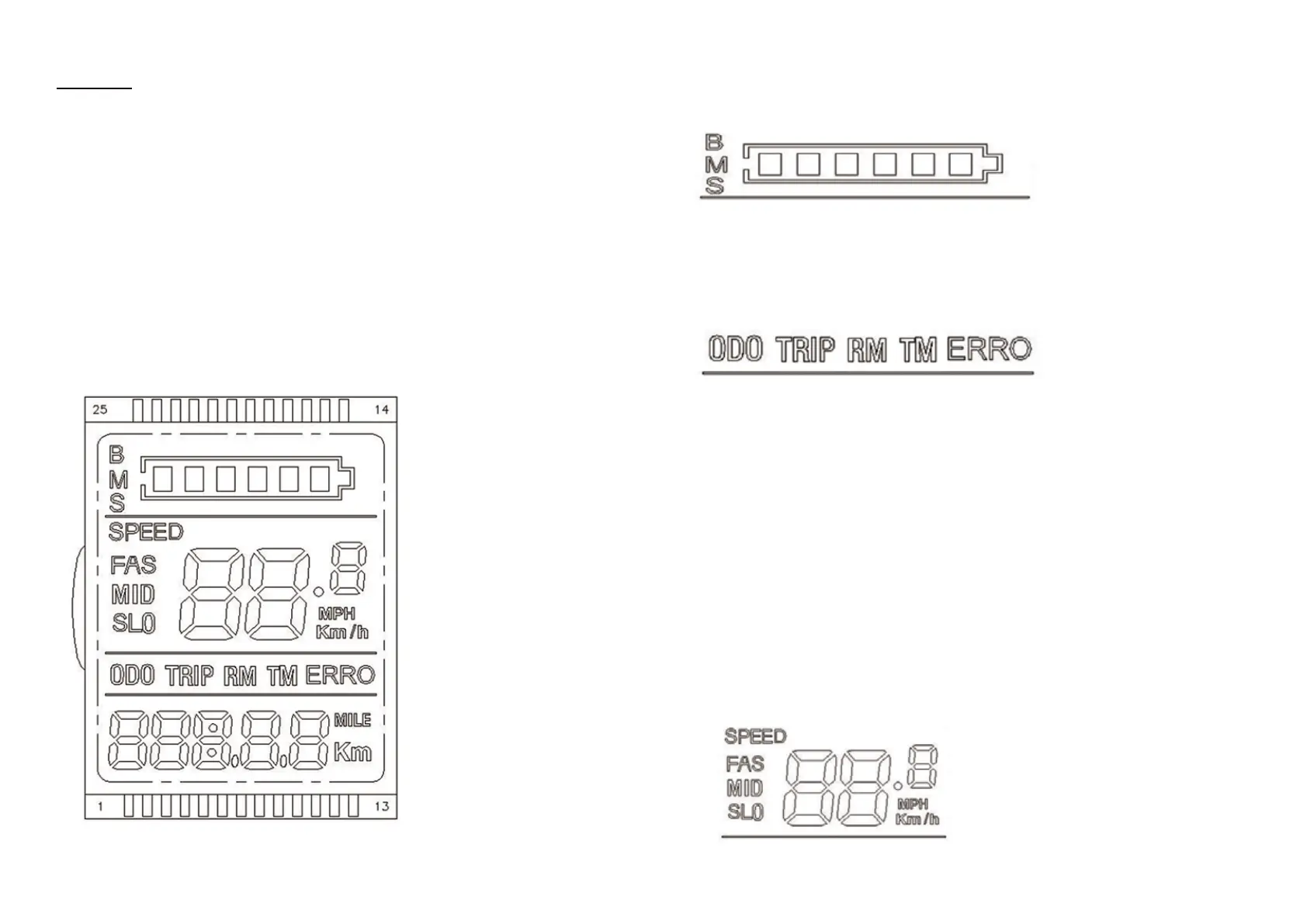

All The Content On The Display Screen(Opened In One Second)
Function
1.Voltage Status Grade POWER
2.Multi function display area
The total mileage of ODO, single mileage TRIP, residual mileage RM
(need batteryprotection board, software support), running time of TIME,
the fault code ERRO
3. The fault status display area ERRO, when ERRO symbols in the
flashing, short press ON/OFF key to adjust the display interface to the
interface ERRO interface under the corresponding figures represent the
specific content of the corresponding fault stateare as follows
ERRO 1:Motor fault
ERRO 2:Turn fault
ERRO 3:Controller failure
ERRO 4: Power brakes
ERRO 5:Under voltage protection
ERRO 6:Communication fault,
the instrument does not close to the output of the controller
ERRO 7:Communication fault,
the controller does not receive the instrument output
