Literature Order #:L-700SERIES
Specifications subject to change without notice.
© 2004,TOA Electronics,Inc.
700 S
ERIES
M
IXER
/A
MPLIFIERS
TOA E
LECTRONICS
, I
NC
.
601 G
ATEWAY
B
LVD
., S
UITE
300
S
OUTH
S
AN
F
RANCISCO
, CA 94080
TEL: 800-733-7088
FAX: 800-733-9766
www.toaelectronics.com
Visit www.toaelectronics.com to download:
Specification Sheets
Architect and Engineering Specifications
900 Series Module Guide
Installation Manual
CAD Files
High-resolution Images
Model Description
M-01F Microphone Input Module,Balanced,200 Ω,Lo/Hi-Cut Filters,Female XLR
M-01M Same as M-O1F with Male XLR
M-01P Same as M-O1F with Phone Jack
M-01S Same as M-O1F with Removable Terminal Block
M-03P Microphone Input Module,HiZ,Unbalanced,50k Ω,Lo/Hi-Cut Filters,Phone Jack
M-21S Microphone Input Module,Balanced,200 Ω, Lo/Hi-Cut Filters,Remote Vol.Control,Screw Terminals
M-51F Microphone Input Module,Balanced,200 Ω,Lo-Cut Filter,Voice Gate,Female XLR
M-51S Same as M-51F with Removable Terminal Block
M-61F Microphone Input Module,Balanced,200 Ω,Lo/Hi-Cut Filters,Compressor,Female XLR
M-61S Same as M-61F with Removable Terminal Block
B-01F Balanced Line Input Module,10k ΩTransformer,Female XLR
B-01S Balanced Line Input Module,10k ΩTransformer, Removable Terminal Block
B-21S Balanced Line Input Module,10k ΩTransformer, Remote Volume Control, Screw Terminals
L-01F Line Matching Input Module,600 ΩTransformer,Balanced,Female XLR
L-01S Same as L-01F with Removable Terminal Block
U-01F Line Input Module,Unbalanced,220k Ω,Female XLR
U-01P Same as U-01F with Phone Jack
U-01R Same as U-01F with RCA Jack
U-01S Same as U-01F with Removable Terminal Block
U-03R Stereo Line Input Module,Lo/Hi-Cut Filters,Stereo Summing Dual RCA Jacks
U-03S Line Input Module,Lo/Hi-Cut Filters,Removable Terminal Block
U-14R Dual Input Priority Module w/ AGC,Stereo Summing Dual RCA Jacks NEW!
U-21S Line Input Module,Unbalanced,220k Ω, Remote Volume Control,Screw Terminals
U-61S Line Input Module,Unbalanced,220k Ω, Compressor, Removable Terminal Block
E-03R 900 Series Processor Module for F-121C/CM Speakers,Dual RCA Jacks
E-04R 900 Series Processor Module for H-1 Speakers,Dual RCA Jacks
E-05R 900 Series Processor Module for H-2/H-2WP Speakers,Dual RCA Jacks
E-06R 900 Series Processor Module for H-3/H-3WP Speakers,Dual RCA Jacks
E-07S 900 Series Low Pass Filter Output Module for FB-100 and HB-1,Removable Terminal Block
S-01S Signal Generator Module,1 kHz Sine Wave,Removable Terminal Block
S-02S Signal Generator Module,Buzzer/Yelp,Removable Terminal Block
S-04S Signal Generator Module,8 Selectable Tones,Removable Terminal Block
S-20S Digital Message/Tone Module w/ USB,Removable Terminal Block NEW!
T-01S Line Output Module,Balanced,600 Ω,Removable Terminal Block
T-02S Line Input Module for Music-on-Hold,Unbalanced,220k Ω Input,600 Ω Balanced Output,Screw Terminals
V-01S Remote Master Volume Control (VCA) Module,Removable Terminal Block NEW!
Special
Function Modules
Line
Input Modules*
Microphone
Input Modules
* For Line Input Modules:Use “B” modules w/ transformer isolation for balanced/unbalanced sources. Use “L”modules
only for 600 ohm impedance matching. Use “U”for unbalanced sources w/ short cables (< 15 feet).

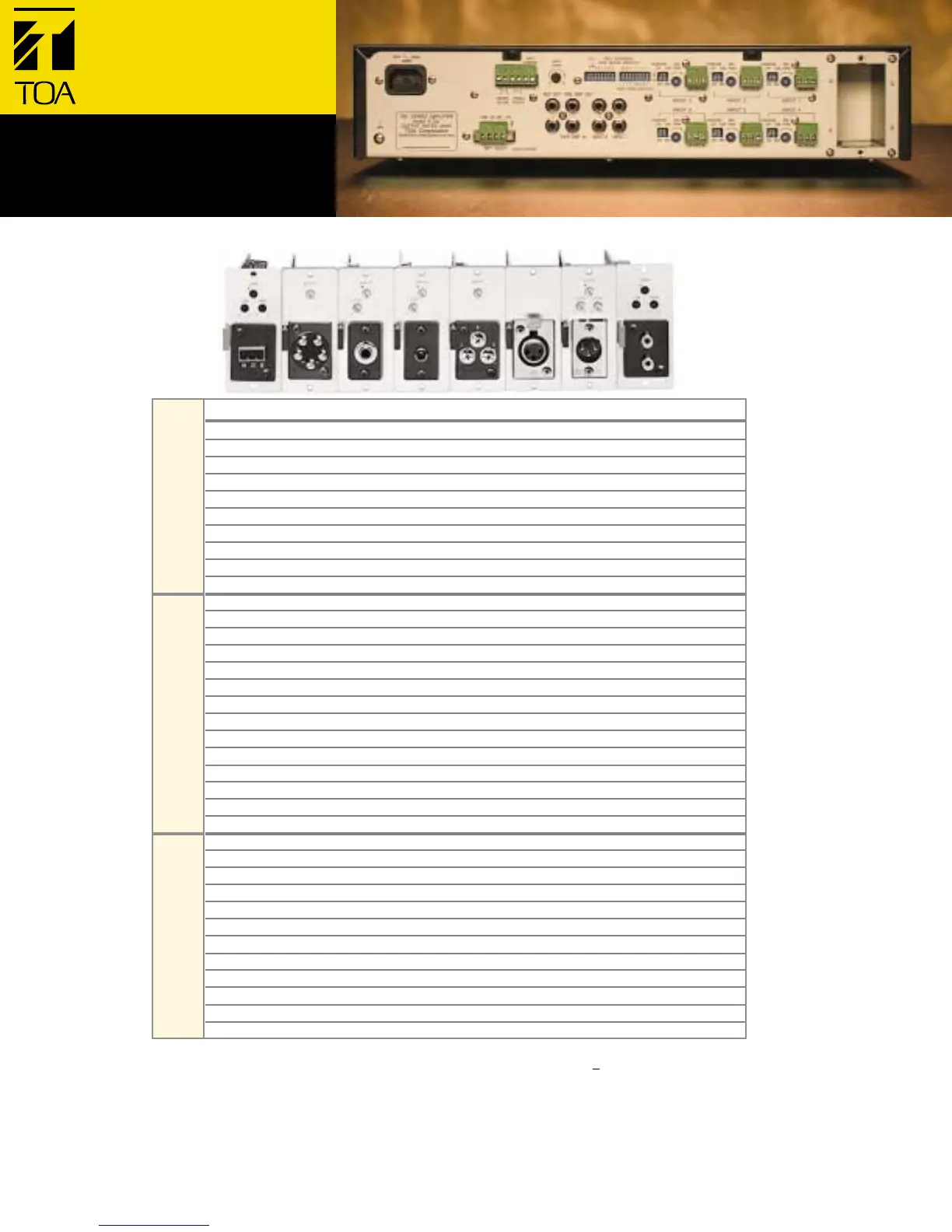

M
ODULE
S
ELECTION
C
HART
