2. GENERAL DESCRIPTION
TOA's MD-210CTU-EB is a 1U 19” rack size all-in-one player, is capable of playing various audio sources,
such as CD, USB, SD/MMC card and FM radio. In CD mode, CD or USB or SD/MMC card can be selected to
play the audio source, while tuner mode plays FM radio. The FM radio tuner is able to store up to 30 channels
in preset memory. Sleep function of up to 90min is available in tuner mode.
3. NOMENCLATURE AND FUNCTIONS

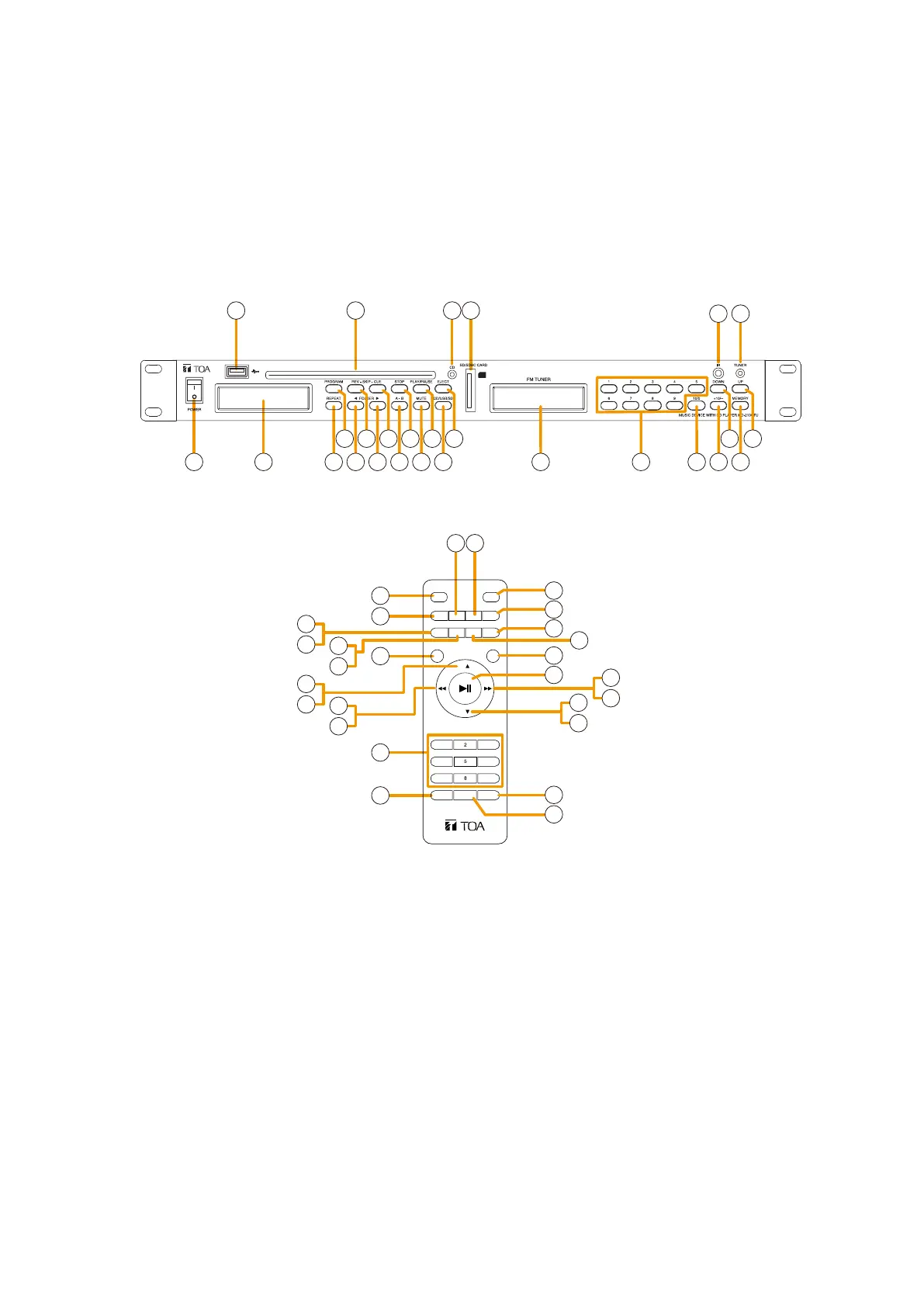

[Front]
[Remote controller]
1. Power switch
Flip this switch to turn the power on and off.
2. Slot for CD player
When CD plugged on, text appears "DISC", folder
number and track quantity.
3. Slot for USB

ash drive
When USB plugged on, text appears "USB", folder
number and track quantity.
4. Slot for SD card
When SD card plugged on, text appears "CARD",
folder number and track quantity.
5. CD/USB/SD
Press this key to change function, DISC
→
USB
→
CARD.
Text appears “RAEDING DISC or USB or CARD”.
6. LC-Display
CD/USB/SD status including track number and
playing time.
7. CD mode indicator
Press CD/TUNER(20) key on remote controller to
change LED indicator.
(When CD mode indicator light on, the function
keys on the remote controller are only available for
CD/USB/SD.
8. Eject
Press this key to remove the disc, text appears
"EJECT".
9. Play/Pause
Press once to start playing, press again to pause.
Text appears "title, number of track, time, audio
format". When pause mode music stop (no sound)
text appears "title, number of track, time (blinking),
audio format".
