Toa MX-106 - Connection Examples

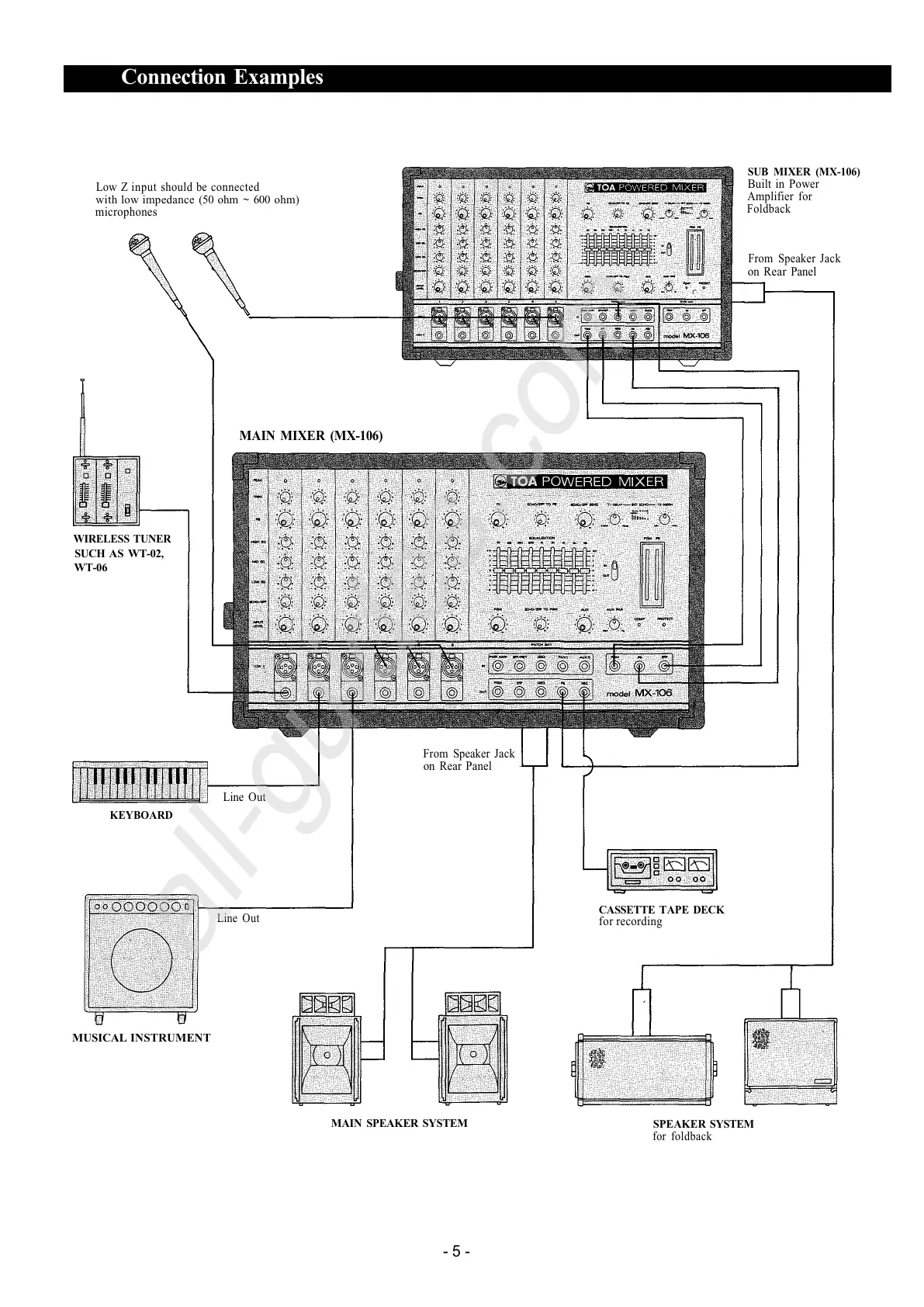

Connection Examples
Low Z input should be connected
with low impedance (50 ohm ~ 600 ohm)
microphones
SUB MIXER (MX-106)
Built in Power
Amplifier for
Foldback
MUSICAL INSTRUMENT
MAIN SPEAKER SYSTEM
SPEAKER SYSTEM
for foldback
From Speaker Jack
on Rear Panel
MAIN MIXER (MX-106)
WIRELESS TUNER
SUCH AS WT-02,
WT-06
KEYBOARD
Line Out
From Speaker Jack
on Rear Panel
CASSETTE TAPE DECK
for recording
Line Out
- 5 -
