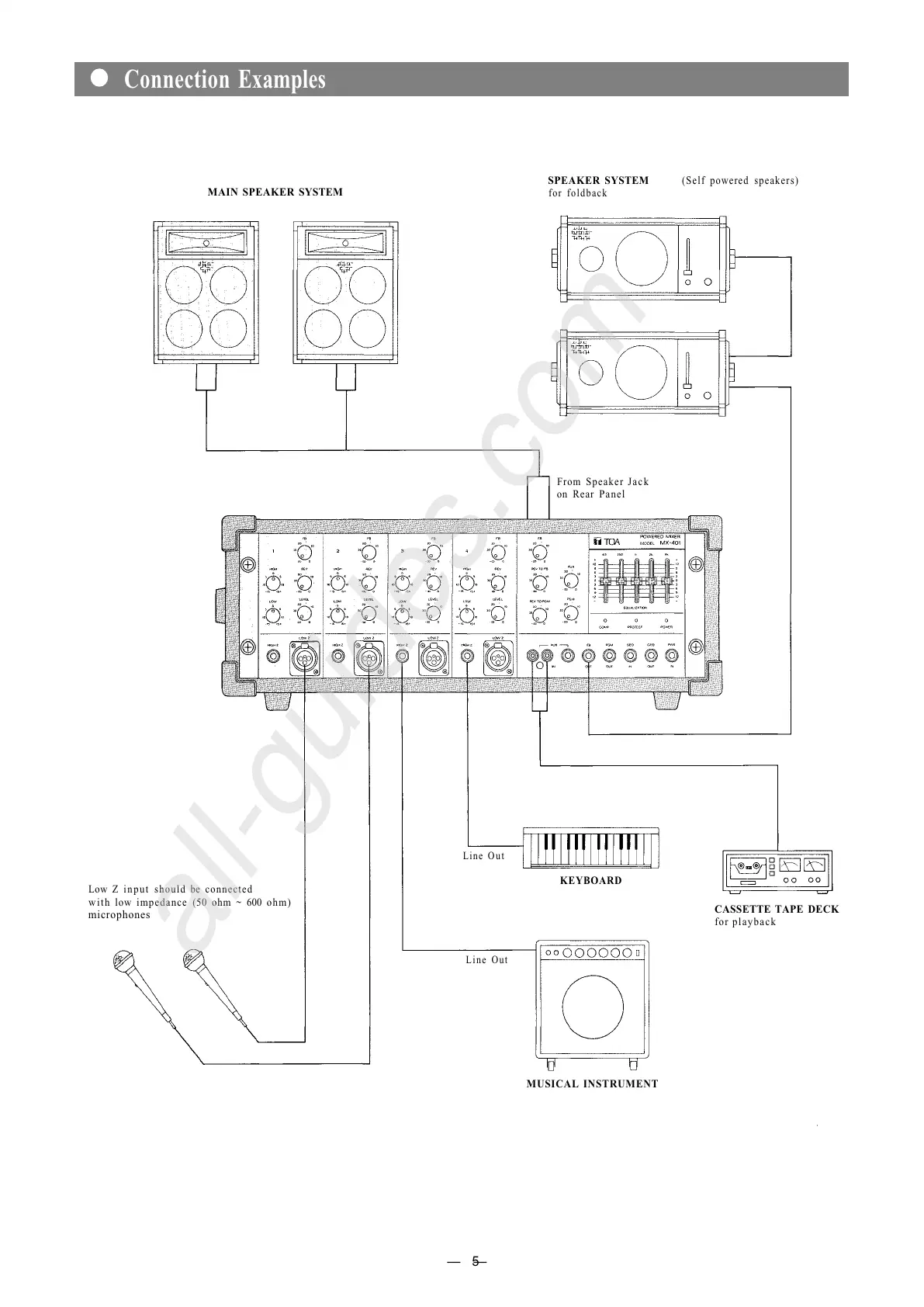

Toa MX-401 - Connection Examples

MAIN SPEAKER SYSTEM
SPEAKER SYSTEM
for foldback
(Self powered speakers)
From Speaker Jack
on Rear Panel
Low Z input should be connected
with low impedance (50 ohm ~ 600 ohm)
microphones
Line Out
KEYBOARD
CASSETTE TAPE DECK
for playback
Line Out
MUSICAL INSTRUMENT
— 5 —
Connection Examples
