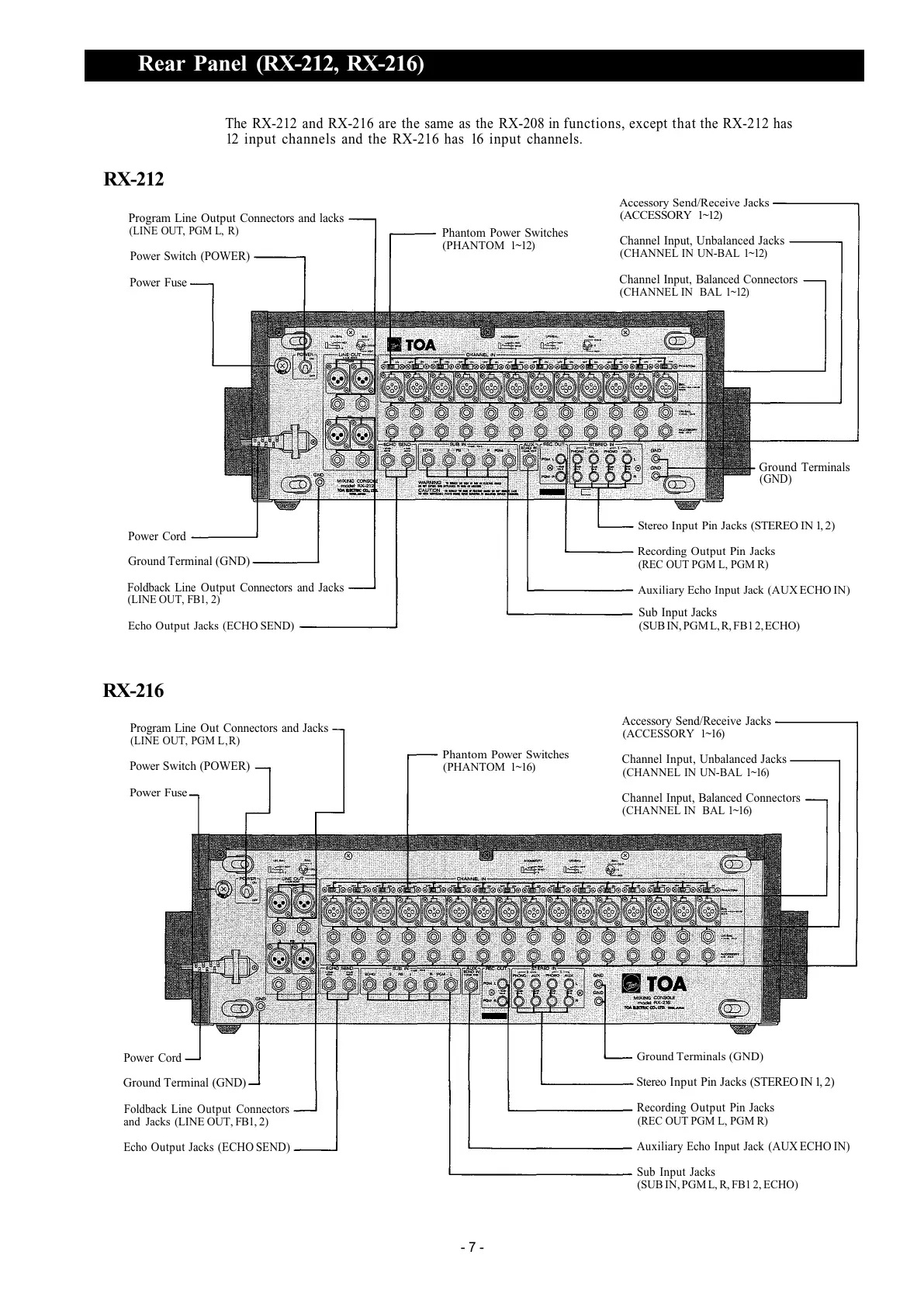

Rear Panel (RX-212, RX-216)
The RX-212 and RX-216 are the same as the RX-208 in functions, except that the RX-212 has
12 input channels and the RX-216 has 16 input channels.
RX-212
Program Line Output Connectors and lacks
(LINE OUT, PGM L, R)
Power Switch (POWER)
Power Fuse
Phantom Power Switches
(PHANTOM 1~12)
Accessory Send/Receive Jacks
(ACCESSORY 1~12)
Channel Input, Unbalanced Jacks
(CHANNEL IN UN-BAL 1~12)
Channel Input, Balanced Connectors
(CHANNEL IN BAL 1~12)
Power Cord
Ground Terminal (GND)
Foldback Line Output Connectors and Jacks
(LINE OUT, FB1, 2)
Echo Output Jacks (ECHO SEND)
Ground Terminals
(GND)
Stereo Input Pin Jacks (STEREO IN 1, 2)
Recording Output Pin Jacks
(REC OUT PGM L, PGM R)
Auxiliary Echo Input Jack (AUX ECHO IN)
Sub Input Jacks
(SUB IN, PGM L, R, FB1 2, ECHO)
RX-216
Program Line Out Connectors and Jacks
(LINE OUT, PGM L, R)
Power Switch (POWER)
Power Fuse
Phantom Power Switches
(PHANTOM 1~16)
Accessory Send/Receive Jacks
(ACCESSORY 1~16)
Channel Input, Unbalanced Jacks
(CHANNEL IN UN-BAL 1~16)
Channel Input, Balanced Connectors
(CHANNEL IN BAL 1~16)
Power Cord
Ground Terminal (GND)
Foldback Line Output Connectors
and Jacks (LINE OUT, FB1, 2)
Echo Output Jacks (ECHO SEND)
Ground Terminals (GND)
Stereo Input Pin Jacks (STEREO IN 1, 2)
Recording Output Pin Jacks
(REC OUT PGM L, PGM R)
Auxiliary Echo Input Jack (AUX ECHO IN)
Sub Input Jacks
(SUB IN, PGM L, R, FB1 2, ECHO)
