9. MOUNTING TO THE WALL
9.1. When Installing the SR-T5 Using the Supplied Mounting Bracket Only
(Downward angle adjustable)
The speaker can be mounted flat or at a downward angle of 1º, 2º, or 3º against wall using the supplied
mounting bracket.
The figure below shows examples of the coverage area when the speaker is installed in a gymnasium
measuring 20 m (w) x 30 m (l) x 10 m (h) (65.62 ft x 98.42 ft x 32.81 ft).
Use these examples as a guideline for the mounting height of the speaker and its optimum downward angle.
Notes
• The 1.1 m height shown in the figure represents listening height for a sitting person.
• The figures below show the coverage area for a 4 kHz frequency.

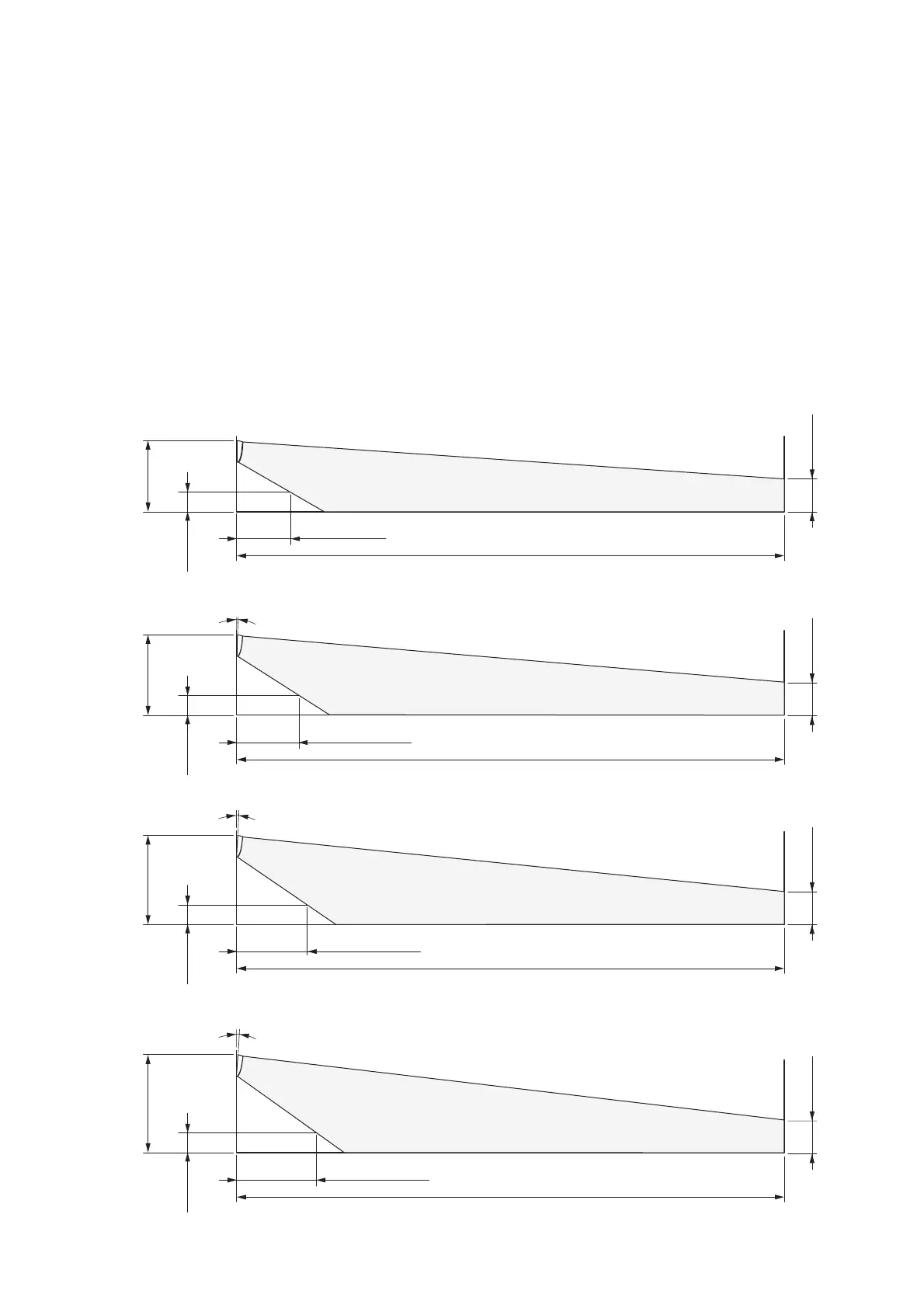

9.1.1. Coverage area
0°
1°
2°
3°
30 m (98.43 ft)
1.8 m
(5.91 ft)
3 m (9.84 ft)
30 m (98.43 ft)
3.5 m (11.48 ft)
30 m (98.43 ft)
4 m (13.12 ft)
30 m (98.43 ft)
4.5 m (14.76 ft)
1.8 m
(5.91 ft)
1.8 m
(5.91 ft)
1.8 m
(5.91 ft)
Height of the speaker's top surface from the floor:
Speaker’s downward angle:
4 m (13.12 ft)
0°
Height of the speaker's top surface from the floor:
Speaker’s downward angle:
4.5 m (14.76 ft)
1°
Height of the speaker's top surface from the floor:
Speaker’s downward angle:
5 m (16.4 ft)
2°
Height of the speaker's top surface from the floor:
Speaker’s downward angle:
5.5 m (18.04 ft)
3°
[Example 1]
[Example 2]
[Example 3]
[Example 4]
1.1 m
(3.61 ft)
4 m
(13.12 ft)
1.1 m
(3.61 ft)
4.5 m
(14.76 ft)
1.1 m
(3.61 ft)
5 m
(16.4 ft)
1.1 m
(3.61 ft)
5.5 m
(18.04 ft)
