Toastmaster 1427 - Installation

COUNTERTOP FRYERS

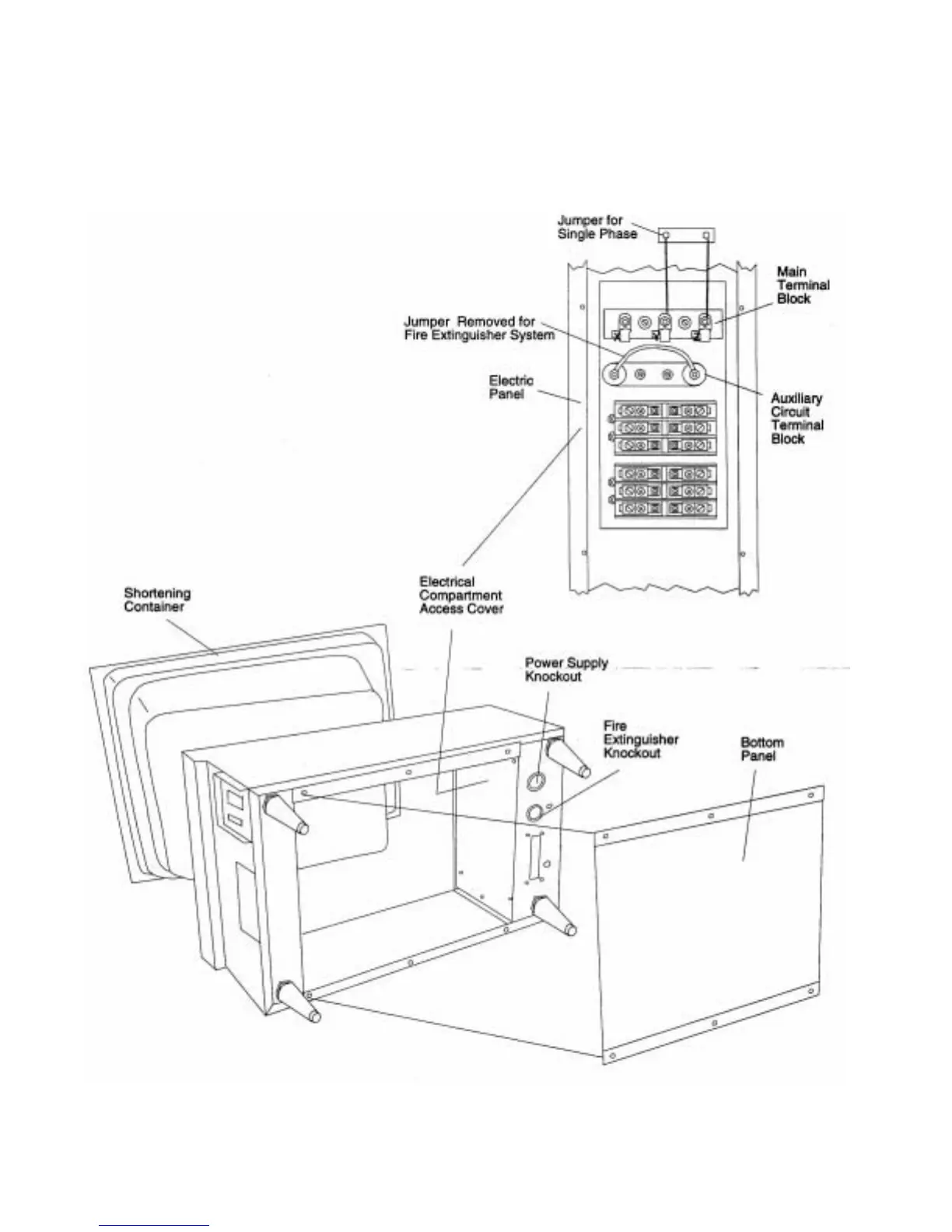

Figure 2-1
Caution: Certain models cannot be wired for single phase at certain voltages as shown in the specifications and
wire schematics in this manual.
c. Remove access cover of electrical compartment (Refer to Figure 2-1). Connect power supply to terminal block.
The fryer is wired for 3 phase. To wire for single phase, refer to the proper model wiring schematic in section 5 of
this manual.
SECTION 2 - INSTALLATION
10
Toastmaster ®
