INSTALLATION 21
5
ENOM00025-0

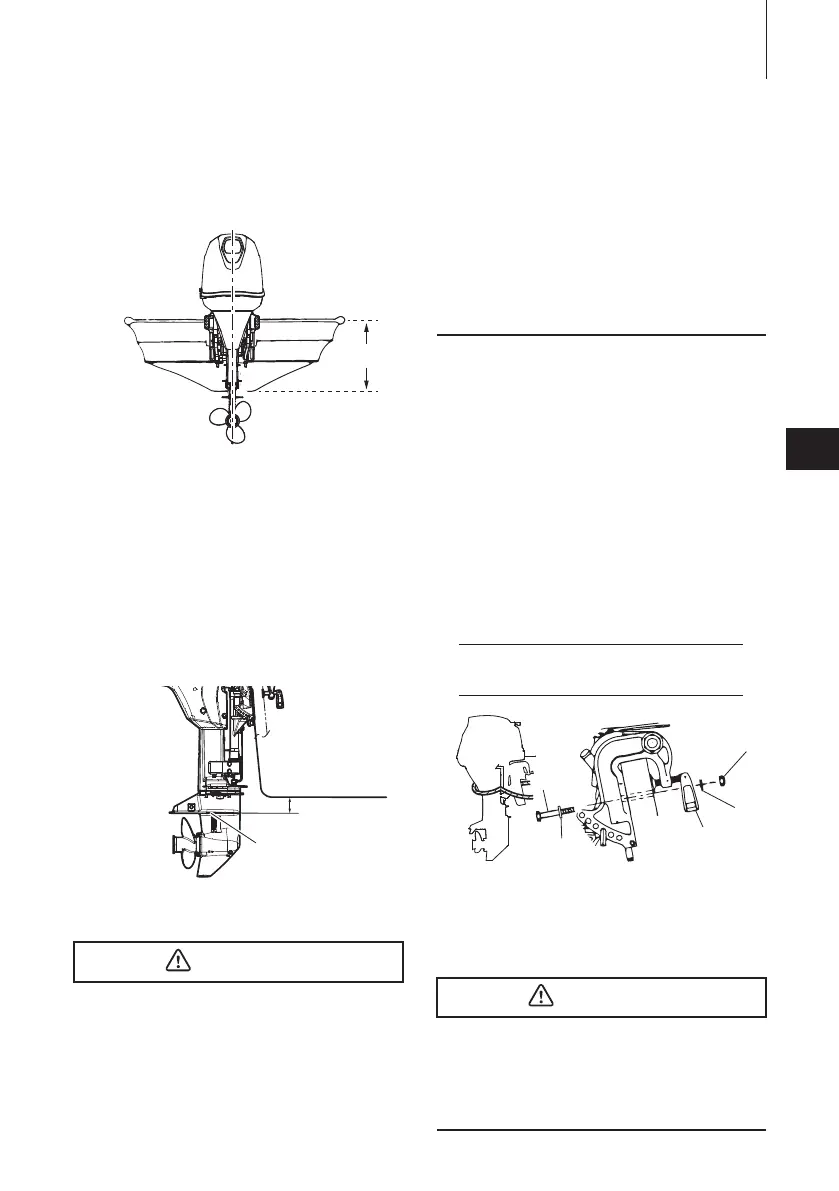

Position ... Above keel line
Set engine at center of boat.
1. Center of boat
2. Boat transom
ENOM00026-0
Transom matching
Be sure that the anti ventilation plate of
the outboard motor is 5–25 mm (0.2–1
in) below the bottom of hull.
If the above condition cannot be met due
to the shape of the bottom of your boat,
please consult your authorized dealer.
1. Bottom of hull
2. Anti ventilation plate
ENOW00007-0
z Before beginning the running test, check
that the boat with maximum capacity
loading floats on the water in a proper
attitude. Check the position of water sur-
face on the driveshaft housing. If the
water surface is near the bottom cowling,
in high waves, water may enter the engine
cylinders.
z Incorrect outboard motor mounting
height or existence of underwater
object(s), such as hull bottom design,
bottom surface conditions or underwater
accessories, can cause water spray possi-
bly reaching the engine through an open-
ing of the bottom cowling during cruising.
Exposing the engine to such conditions for
extended periods can lead to severe
engine damage.
ENOM00830-A
Mounting bolts
MF/EF type
1. To attach the outboard motor to the
boat, tighten the clamp screws by
turning their handles.
Also, use the bolts to secure the out-
board motor brackets on transom
board.
Secure the outboard motor with a
rope to prevent loss overboard.
ENON00002-1
Note
Mounting bolts and rope are not included
in the standard accessories.
1. Bolt (8 × 85)
2. Nut
3. Washer
4. Clamp screw
a. 40 - 60 mm
ENOW00945-0
z Please inspect whether there is a loosen-
ing of the clamp screw or mounting bolts
before departure.
z Loosening may cause a dangerous situa-
tion, such as loss of control.
CAUTION
2
1
ENOF01141-0
1
2
5−25 mm
(0.2−1 in)
ENOF01208-1
CAUTION
1
4
2
3
3
ENOF00016-2
To Next Page
