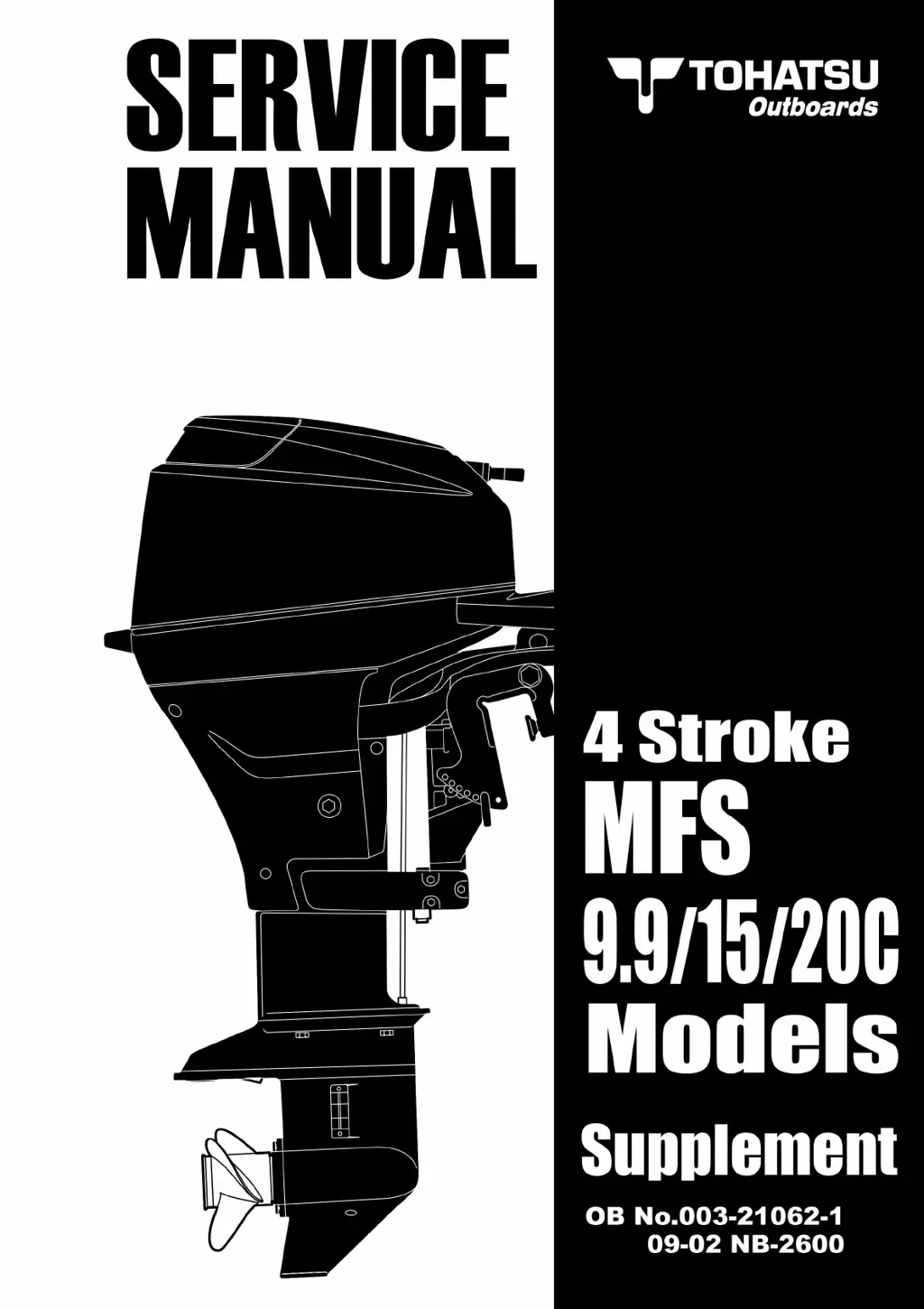

TOHATSU MFS 15 - Service Manual

TOHATSU MFS 15
29 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Other manuals for TOHATSU MFS 15

Questions and Answers

  • M
    Michelle WilliamsJul 27, 2025
    How to troubleshoot a TOHATSU Outboard Motor that won't start?
    • M
      Mackenzie GarrettJul 27, 2025
      If your TOHATSU Outboard Motor engine is failing to start, it could be due to several reasons. These include an empty fuel tank (fill it), incorrect fuel system connections (check them), air in the fuel line (inspect and seal leaks), a deformed or damaged fuel hose (replace it), a closed air vent on the fuel tank (open it), a clogged fuel filter, fuel pump, or carburetor (clean or replace), using the wrong engine oil (use the correct grade), using improper gasoline (use the recommended type), excessive fuel supply (adjust it), or poor carburetor adjustment (adjust the carburetor).
  • C
    Christian EspinozaAug 2, 2025
    What to do if my TOHATSU MFS 15 engine starts but stops soon?
    • V
      Veronica MartinezAug 2, 2025
      If your TOHATSU Outboard Motor engine starts but stops soon after, the possible causes include an empty fuel tank (fill it up), incorrect fuel system connections (check them), air entering the fuel line (inspect and seal leaks), a deformed or damaged fuel hose (replace it), a closed air vent on the fuel tank (open it), or a clogged fuel filter, fuel pump, or carburetor (clean or replace the clogged components).
  • M
    Michael RamirezAug 8, 2025
    What to do if the power tilt on my TOHATSU MFS 15 isn't working?
    • J
      Jessica HoodAug 8, 2025
      If the power tilt on your TOHATSU Outboard Motor is inoperative, it could be caused by a defective power trim & tilt switch or a defective solenoid. Inspect and replace the faulty component.
  • L
    liucarrieAug 14, 2025
    Why is my TOHATSU MFS 15 overheating?
    • C
      Caitlyn PatelAug 14, 2025
      If your TOHATSU Outboard Motor engine is overheating, possible causes include using the wrong type of engine oil (use the correct grade), insufficient cooling water flow due to a clog or defective pump (inspect and repair the cooling system), or a faulty thermostat (replace it).
  • M
    Morgan McintoshAug 20, 2025
    Why is my TOHATSU MFS 15 idling poorly?
    • J
      Joseph DawsonAug 20, 2025
      If your TOHATSU Outboard Motor is idling poorly, it might be due to low compression (check and fix compression issues), carbon deposits in the combustion chamber (clean them), incorrect valve clearance (adjust it), or low oil pressure/level (check and refill if needed).

Summary

Power Tilt System Operations

Hydraulic Circuit Operations

Explains the functioning of the hydraulic circuit for power tilt and trim.

Tilt Up Operation Procedure

Details the procedure and mechanism for tilting the outboard motor up.

Tilt Down and Trim In Operation

Describes the process for tilting the motor down or trimming it in.

Power Tilt Motor Maintenance

Motor Removal, Check, and Repair

Steps for removing, inspecting, and repairing the power tilt motor components.

Armature Continuity Test

Procedure for testing the electrical continuity of the motor armature.

Power Tilt Pump Service

Power Tilt Pump Disassembly

Comprehensive steps for disassembling the power tilt pump for service.

Power Tilt Pump Assembly

Motor and System Assembly

Steps for installing the motor assembly and connecting system components.

Filling the Power Trim System

Procedure for filling the power trim system with the recommended fluid.

PTT Unit Air Bleeding

Manual Valve Operation and Fluid Check

Steps for operating the manual valve and checking fluid levels.

Fluid Addition and Cap Tightening

Procedure for adding PTT fluid and tightening the reserve tank cap.

Motor Reconnection and Tilt Rod Cycles

Reconnecting motor leads for cycling the tilt rod to purge air.

Power Tilt Assembly Installation

Final Bleeding and Fluid Check

Unlocking stopper, tilting to bleed air, and checking final fluid level.

PTT Relay Testing

PTT Switch Testing

TOHATSU MFS 15 Specifications

General IconGeneral
Horsepower15 hp
StartingManual
Fuel TypeGasoline
Full Throttle RPM Range5000 - 6000 rpm
Shaft Length381 mm (15 in)
