Contamination of hydraulic system can
give damage to the components and
circuits, possibly resulting in serious
damage to the product.
Before inspecting hydraulic circuit and
parts, organize working space and tools.
Do not use cloth for inspection and
servicing of parts.
Hydraulic circuit may be clogged.
Remove oil feed plug before beginning the
work.
Keeps parts in the plastic bags during
disassembly.
Relief valve ass'y is located in the power tilt
pump.
When removing pump, be careful not to lose its
parts.

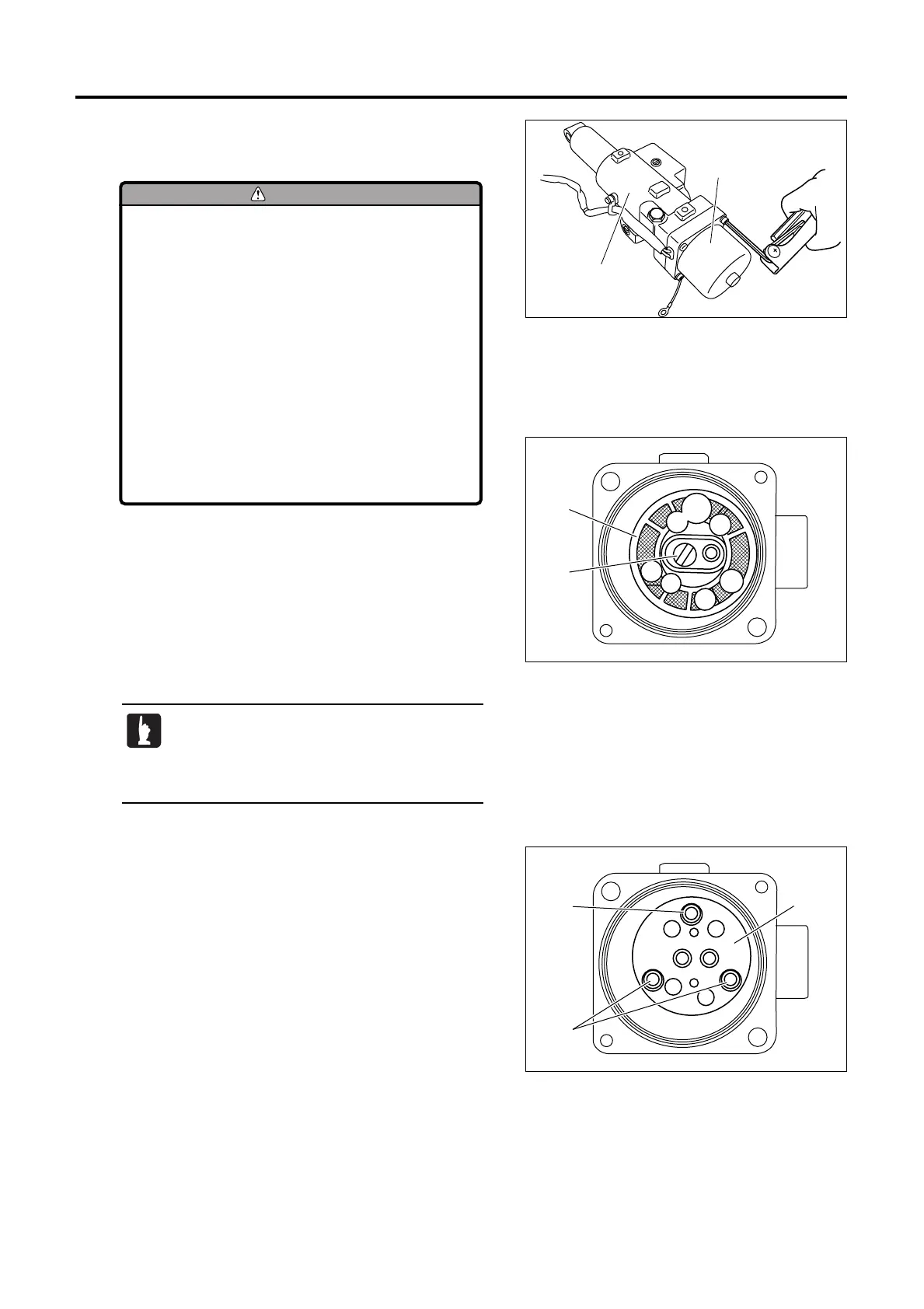

1. Remove power tilt ass'y from outboard motor.
2. Remove power tilt motor ass'y 2 from power tilt ass'y 1.
3. Remove pump coupling 4.
4. Remove filter 3 from power tilt ass'y.
3Filter
4Pump/motor coupling
5. Remove 3 screws 2, 3 that secure power tilt pump 1 and
assembly.
1Power tilt pump
2Internal hex screw (5mm×20)
3Internal hex screw (5mm×25)
E_MFS15-20C_sup_body_090330.qxd 09.4.2 11:10 AM ページ 17
