TOHATSU MFS 15 Service Manual

23
4st 9.9/15/20 2009
1

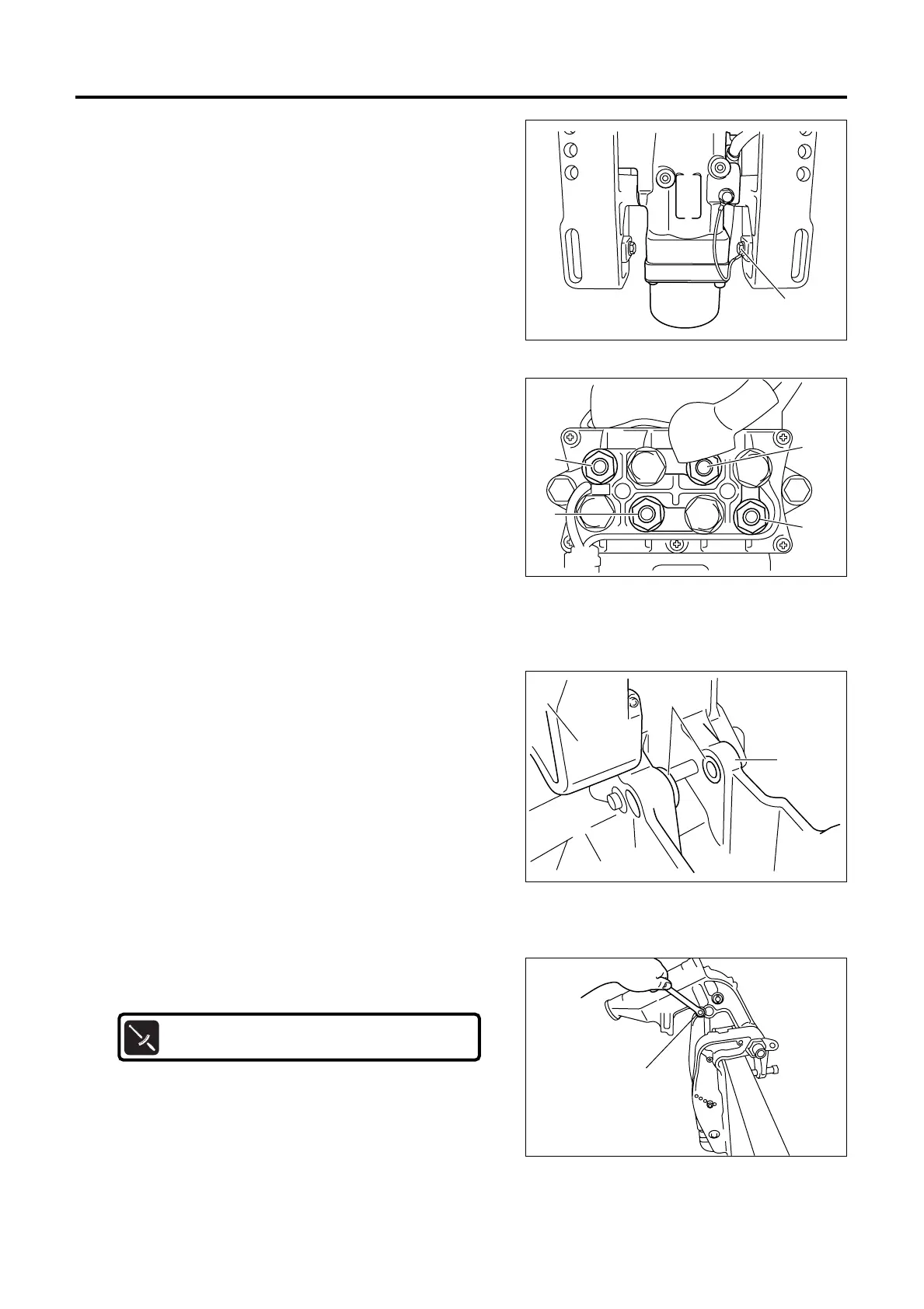

7. Secure earth cord 1 by using screw.
1
4
3
2
8. Attach electrical cord of power tilt unit to power tilt relay 2,
4.
1Positive terminal (red)
2Up relay terminal (blue)
3Negative terminal (black)
4Down relay terminal (green)
2
3
1
9. Attach bushings (2) 1 to swivel bracket 2.
10. Extend power tilt cylinder rod to align tilt cylinder rod and
swivel bracket.
11. Fit tilt cylinder rod by using cylinder pin (upper).
1Bushings (2)
2Swivel bracket
3Clamp bracket
1
12. Tighten tilt cylinder pin (upper) securing screw 1 to specified
torque.
Tilt cylinder pin (upper) securing screw :
13N･m（9.4lb･ft）〔1.2kgf･m〕
13. Unlock tilt stopper, and repeat tilting up and down outboard
motor to bleed air from hydraulic circuit.
< Refer to 3) Air-Purging PTT Unit >
14. Check power tilt fluid level, and replenish if necessary.
E_MFS15-20C_sup_body_090330.qxd 09.4.2 11:10 AM ページ 23
