20

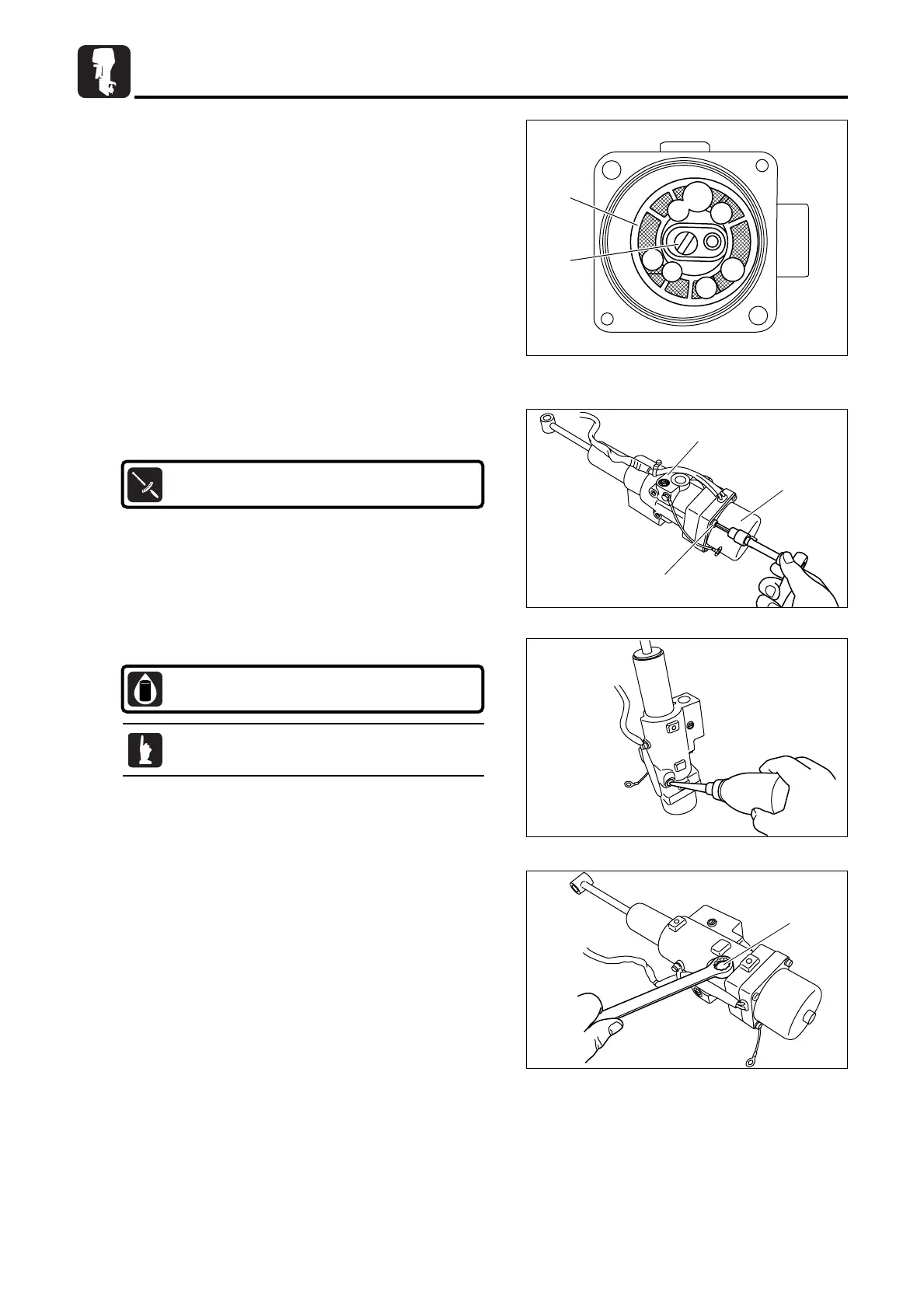

PTT Unit
4st 9.9/15/20 2009
6. Attach cleaned screen 1.
7. Attach pump coupling 2 to pump.
8. Install motor ass'y to power tilt pump and cylinder ass'y.
9. Attach wireharness mounting screws.
1
2
1Pump filter
2Pump/motor coupler
4
3
5
10. Install motor ass'y 4 to cylinder ass'y and power tilt pump 3
by using screws 5, and tighten screws to specified torque.
Motor ass'y installation screws:
5Nm4lbft0.5kg fm
11. Fill power trim system with power trim fluid.
Recommended PTT Fluid :
ATF DEXRON II
OIL
12. Attach the cap 6.
6
Extend trim rod and put PTT unit vertically. Pour
fluid until it overflows from inlet.
E_MFS15-20C_sup_body_090330.qxd 09.4.2 11:10 AM ページ 20
