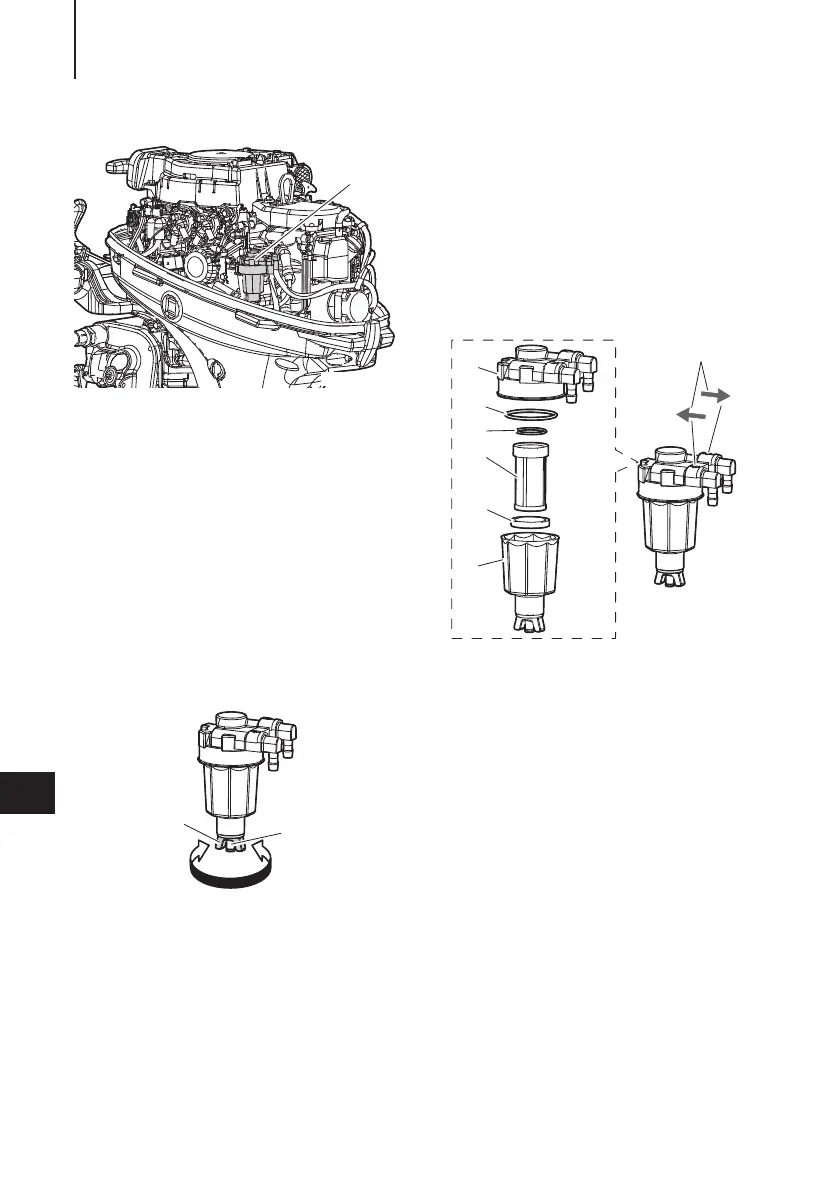

1. Fuel filter
In case of water entry
1. Prepare a container under the outlet
of the fuel filter.
2. Loosen the drain screw of the fuel
filter.
3. Squeeze the primer bulb several
times. After the water is drained,
stop squeezing.
4. Tighten the drain screw securely and
confirm there is no fuel leaking.
1. Drain screw
2. Drain port
3. Loosen
4. Tighten
In case of debris
1. If present, disconnect hoses from
the fuel connector (male) and the
fuel pump.
2. Remove the cup, filter and O-rings
from the fuel filter body.
3. Check the wear and clogging for
each parts, and replace if necessary.
4. Remove fuel and any water or debris
from the cup, filter and hoses.
5. Reassemble all parts.
1. Body
2. O-ring
3. O-ring
4. Filter
5. Float
6. Cup
7. Indicate of Fuel Flow
ENOM00096-A
Fuel filter (for fuel tank)
Water or dirt in the fuel tank will cause
engine performance problems.
Check and clean the tank at specified
times or after the outboard motor has
been stored for a long period of time
(over three months).
1. Remove the fuel pickup elbow of the
fuel tank by turning it counterclock-
wise
2. Clean the fuel filter and check the O-
ring. Replace it if necessary.
1
2
3
4
5
6
7
ENOF01243-0
To Next Page
