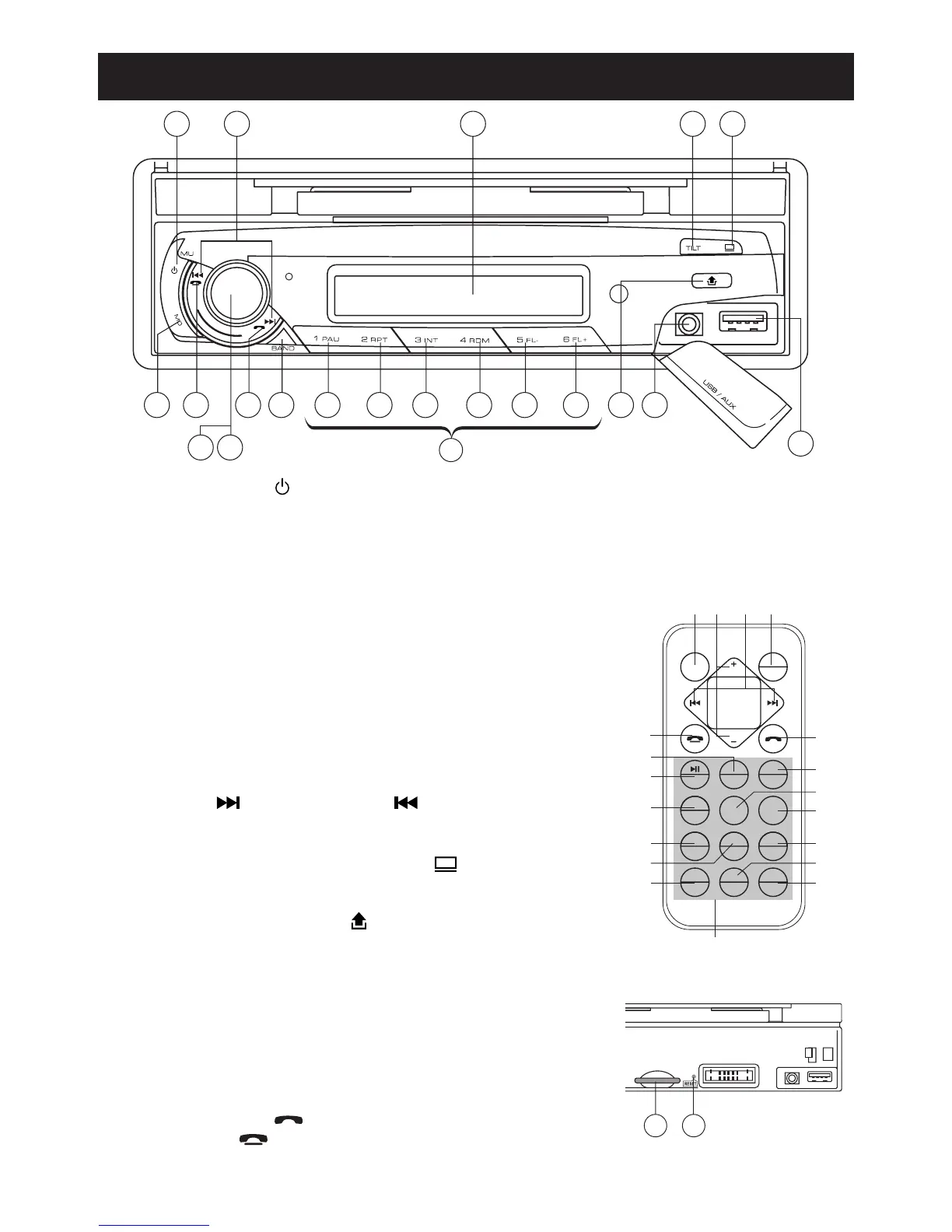

Tokai LAR-100B - Location of Parts and Controls; Control Overview

EN-17
1. POWER ON/OFF ( ) / MUTE (MU)
2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER /
CALL LIST / DISPLAY / INITIAL VOLUME / ADJ / TA VOL / EON / AF / TA / PTY / DSP / TA SEEK /
PI SOUND / RETUNE / MASK DPI
3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER /
CALL LIST / DISPLAY / INITIAL VOLUME / ADJ / TA VOL / EON /
AF / TA / PTY / DSP / TA SEEK / PI SOUND / RETUNE /
MASK DPI
4. PRESET STATIONS (1,2,3,4,5,6)
5. ‘AF’ FUNCTION (ALTERNATIVE FREQUENCIES)
6. ‘TA’ FUNCTION (TRAFFIC ANNOUNCEMENT)
7. ‘PTY’ FUNCTION (PROGRAM TYPE)
8. EQUALIZER (DSP)
9. MODE/LOUDNESS BUTTON (MD)
10. BAND/ENTER BUTTON (BAND)
11. AUTOMATIC OR MANUAL TUNING
(FREQ UP OR FREQ DOWN /TRACK /
SEARCH BUTTON)
12. OPEN/CLOSE UPPER PANEL DISPLAY
FOR HOLD MOBILE PHONE / TABLET ( )
13. UPPER PANEL DISPLAY TILT ANGLE (TILT)
14. LCD DISPLAY
15. PANEL RELEASE BUTTON ( )
16. PAUSE BUTTON
17. REPEAT BUTTON
18. INTRO BUTTON (Preview all Tracks)
19. RANDOM BUTTON
20, 21. PREVIOUS/NEXT FOLDER (MP3/WMA Files only)
22. USB PORT
23. SD CARD SLOT
24. FRONT AUX IN
25. PHONE NUMBER
26. ANSWER A CALL ( )
27. END A CALL ( )
28. RESET BUTTON
