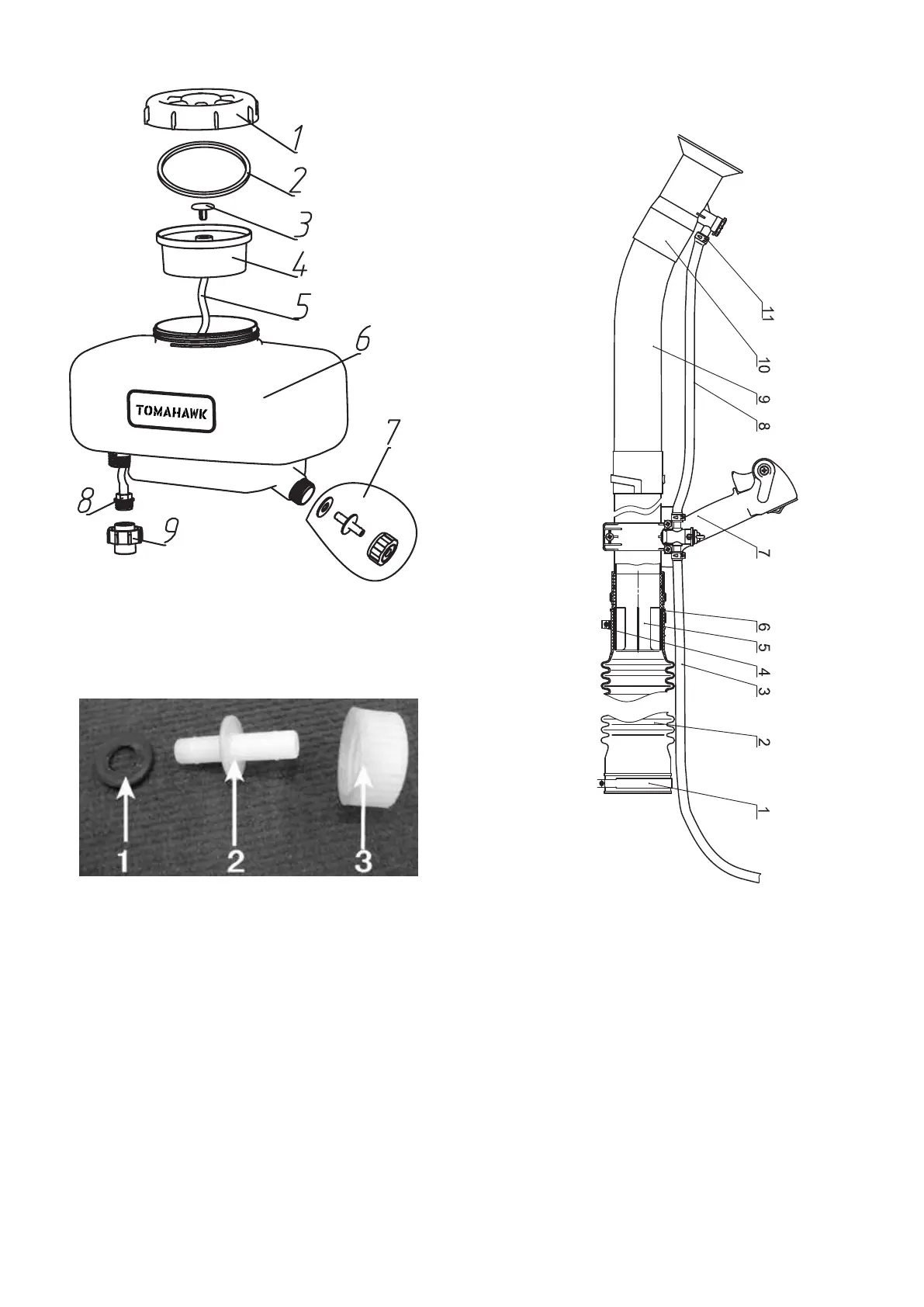

Fig 2
-6-
b.Conecta estas 3 piezas como muestra
el dibujo.
1. Tapa 2. Empaque 3. Tornillo
4. Filtro 5. Tubo 6. Tanque
7. Tapón 8. Cierre 9. Rosca
Fig 1
Tubo de plástico .4 obuT.3 Codo .2 pilC.1
5. Pipa plástica 6. Hule 7. Manija
8. Tubo 9. Pipa plástica 10.Boquilla 11. Anillo
Fig 3
