6. Rubber sheath 5. Handle 9. Plastic
tube 10.Chain
(3)Anti-electrostatic installation
Dusting or spreading dust chemical
may cause the el ec trostatics,that i s
related to the factors,such as the kind of
chemicals,air temperature,air humidity,etc.
In order to prevent ectrostatics,please use
the attachment-insurance chain.When
the air becomes dryer,the electrostatic is
more serious,in particular when the long
membranous tube for dusting and granules
spreading is used,electrostatic will often
happen.Please pay attention.
One end of insurance chain is inserted into
jet pipe,vibrated freely and touched to the
ground.Connect another end with conducting
chain on bend pipe by screw.
Assembly as Fig.4.
-7-
(2) Assembly for Dusting
Remove the chemical tank, remove the
inlet rubber tube,outlet rubber tube, suction
strainer,spraying lid plate,pressing lid and
change for lower lid of chemical
tank,then connect the dusting pipe as Fig.4.
5. Engine Rotation
(1)Check
a.Check whether the spark plug and all
the connecting pieces are tightened.
b.Checking whether the cooling air channel
is clogged. If so, the engine will be over
heated.
the dirt will reduce the amount of air drawn
in. The engine will not run well and fuel will
be wasted.
d.Check whether the gap of the sparking
plug is 0.6
～
0.7mm.
e.Pull the starter 2 or 3 times, check whether
the engine rotates normally.
(2)Fueling
a.The fuel for this machine is a mixture of
gasoline No.70 or No.90 and 2-stroke oil.
Incorrect gasoline, oil and mixture may damage
the engine.
b.Never fuel the engine when it is hot or
running.
c.When fueling, never remove the strainer.
(3)Adding chemicals
a.During spraying operation, the hose
must be shut,see Fig. 5.
During dusting operation,dusting valve
throttle and fuel lever should be on the
off position,other-wise,the machine will
still release chemicals.

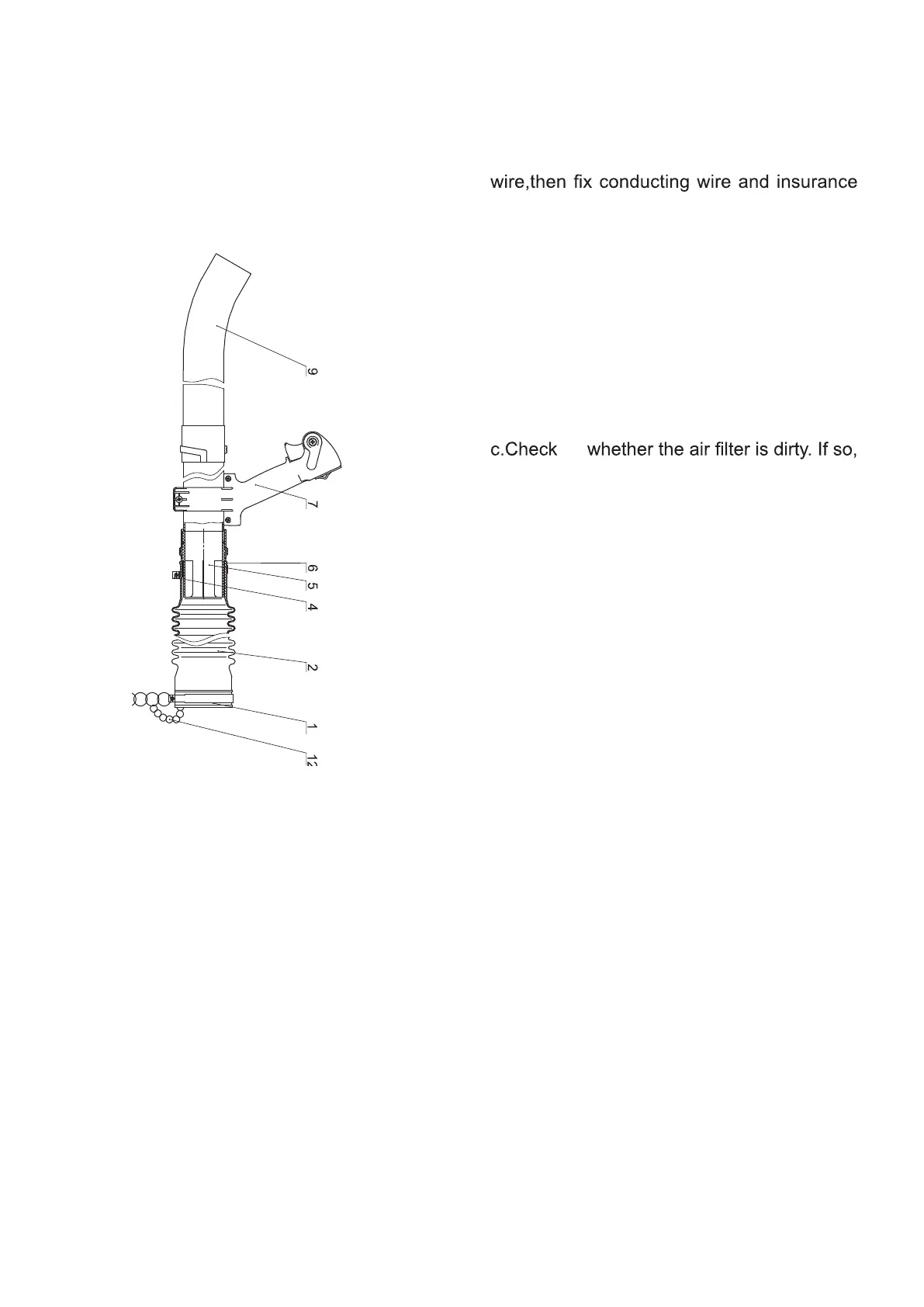

Fig 4
b.As powdered chemicals can easily
solidify, the chemicals should not be in the
chemical tank for a long time.
c.While spraying,the chemical tank lid
should be turned tightly.After adding
powder chemical,please clean the threading
on the chemical tank mouth,then turn on the lid
so it is tightly secured.
