SWITCH FUNCTIONS:

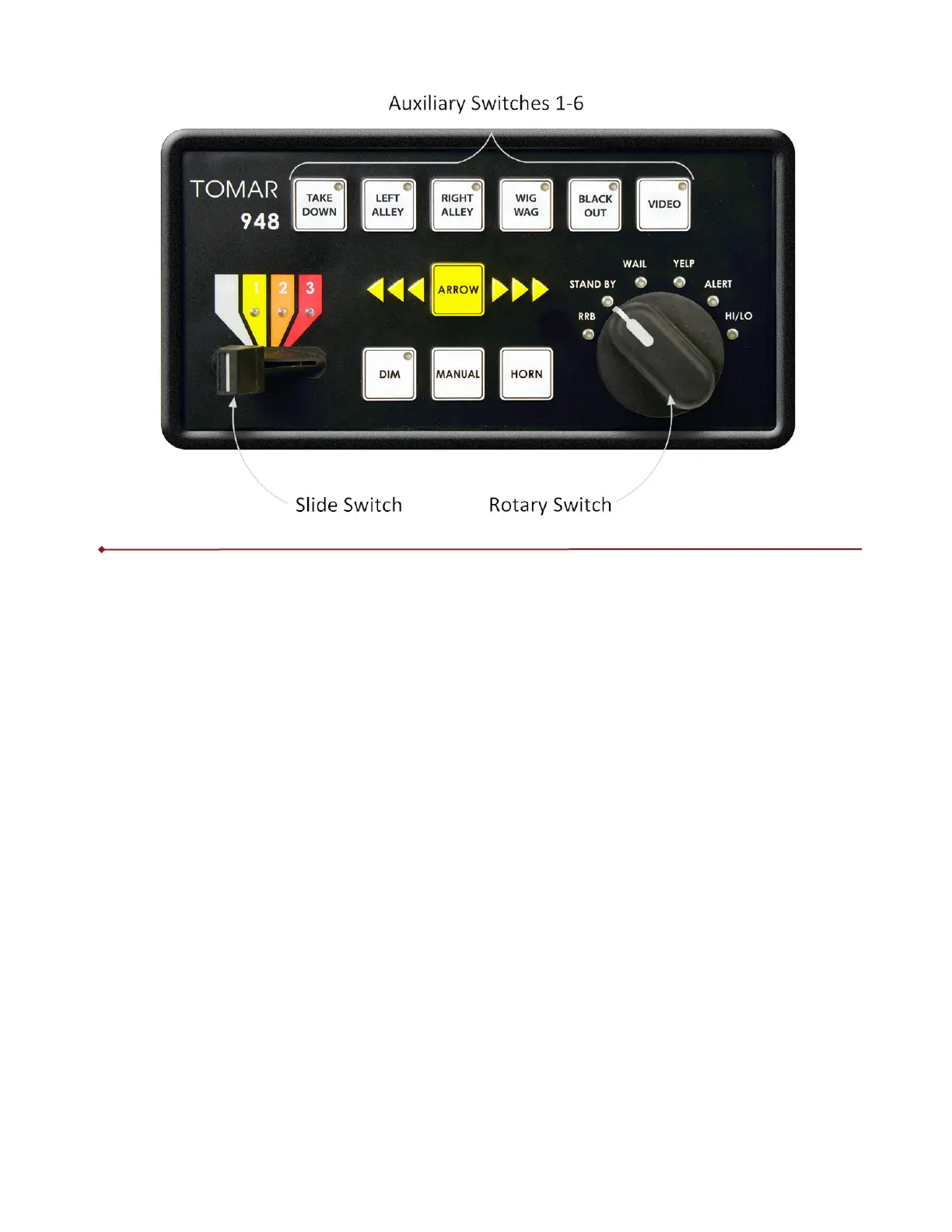

The 948L-DCP is a digital output switch interface that can be used to directly control a Tomar
930L or 970L series lightbar equipped with a digital cable, or the 940-AMP.
Switch Functions When Directly Controlling a Lightbar
Auxiliary Switch 1 Takedown
Auxiliary Switch 2 Left Alley
Auxiliary Switch 3 Right Alley
Auxiliary Switch 4 CA Steady/Rear Work
Auxiliary Switch 5 Preemption
Slide Switch 1 Warning Mode 1
Slide Switch 2 Warning Mode 1 + 2
Slide Switch 3 Warning Mode 1 + 2 + 3
Arrow Switch Arrow Functions
Dim Switch Lightbar Dim
Manual Switch N/A
Horn Switch N/A
Rotary Switch N/A
