TOMATECH CHC-200F User Manual

3
1 Introduction
1.1 Basic specs
Power supply：CHC-200F：AC24V±10%，50Hz/60Hz；
DC motor used on lifter：CHC-200F：DC24V (From THC to DC motor)；
Output current：CHC-200F：1A-4A，max：100W；
Work temperature：THC-10∽60℃； HF cable：-10∽200℃；
Sensor parts：-10∽350℃。
Accuracy：±0.1mm (matters with lifter design)；
Auto height range：from cutting material surface 1mm — 25mm.
HF-cable:200mm∽1800mm。

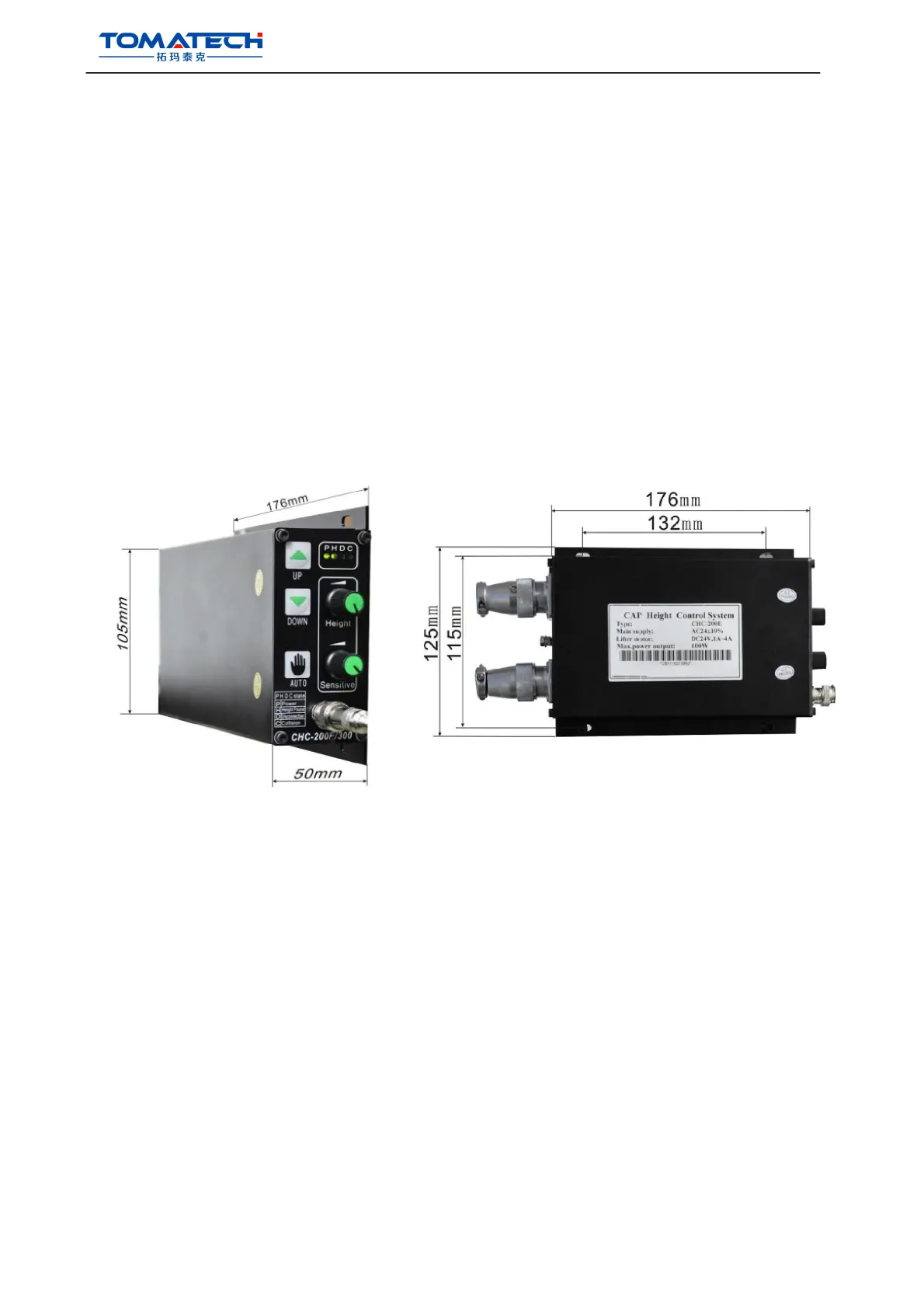

Product size shows as figure 1-1 L*W*H：176mm * 105mm * 50mm。
Figure 1-1
