8.8 Two-Piece Frame. (Optional) Patent Pending.
To disassemble the frame, first move the vehicle to clean, dry, level ground.
• Deploy the kickstand beneath the vehicle frame.
• Lift the vehicle onto the stand so that the front wheel is slightly off the ground.

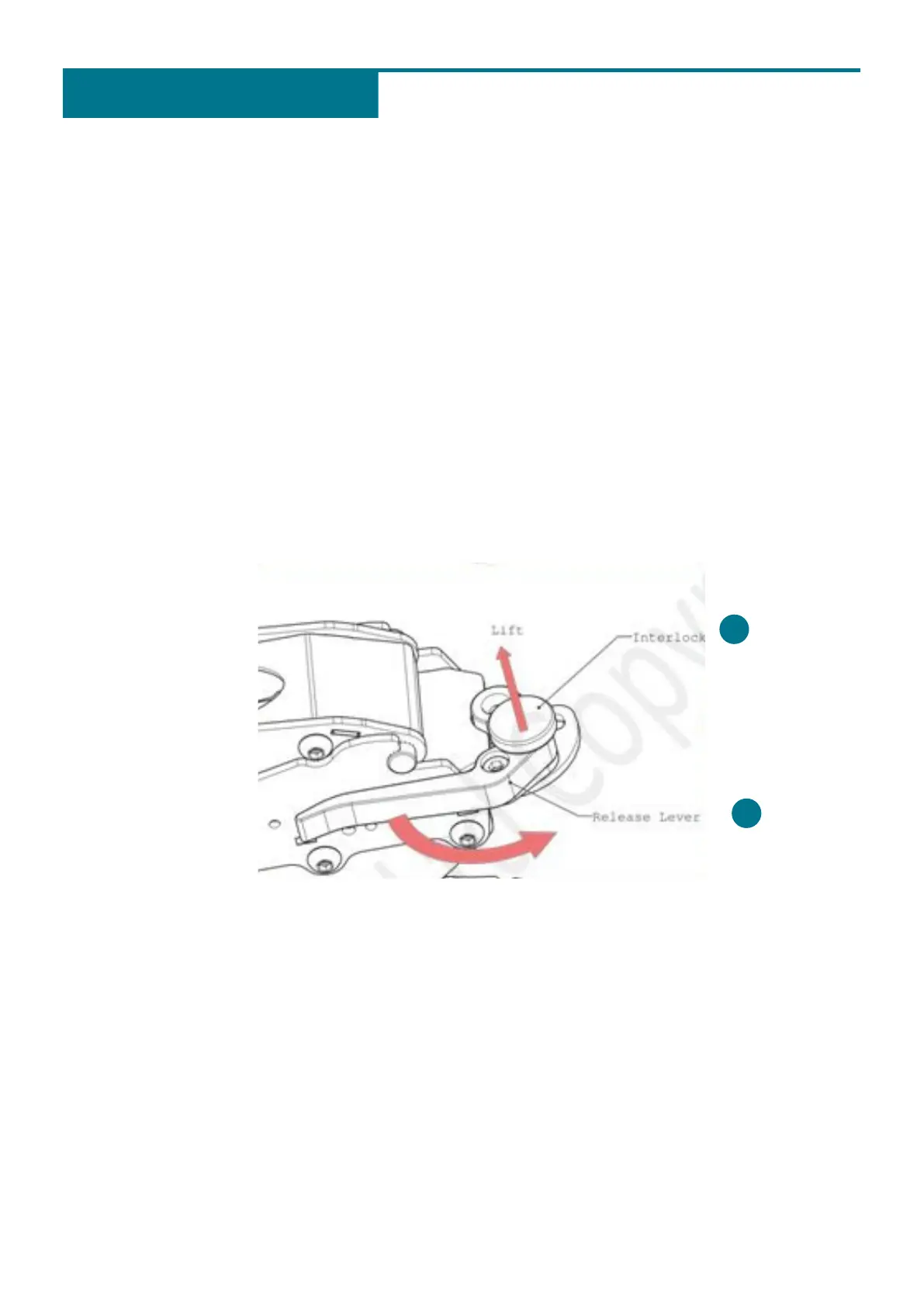

• Lift the interlock plunger (1) (Fig 6) and hold it raised, whilst shifting the
release lever (2) anticlockwise about a sixth of a turn. Release the interlock before
letting go the release lever. The release lever must stay OPEN.
• Grasp the front section of the vehicle with both hands and lift the front wheel
from the ground, enough to be able to slide the front section backwards.
• The front section can be fully removed when slid backwards by about 1cm.
• Refitting is a reversal of the above process.
The Frame separation system is unique to Tomcat and protected by patent pending
No GB 1905636.5.
| SIL VER BU LLE T & AR ROW
PA GE | 1 6
Fig. 6
2
1
