BATTERY INSTALLATION (VERSION)

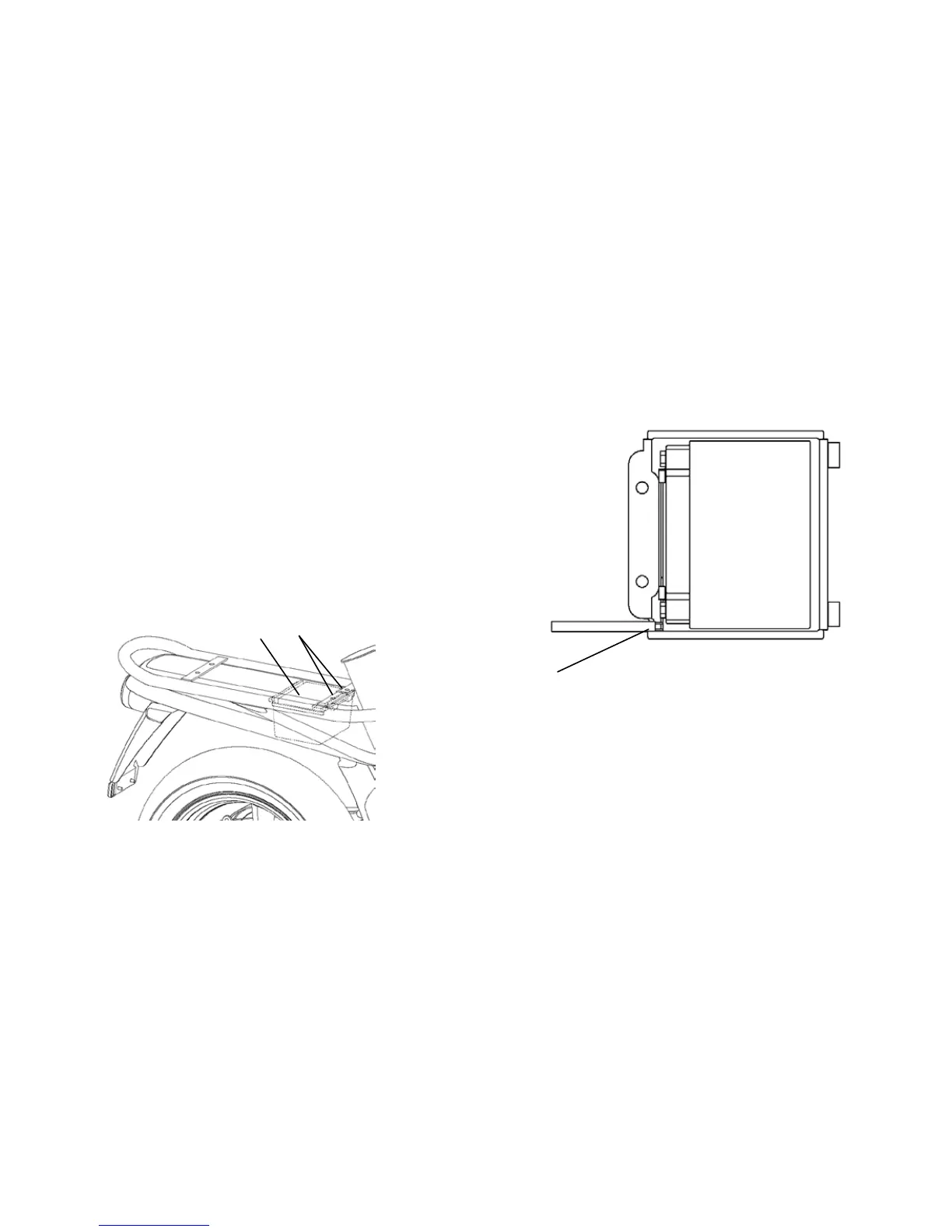

Battery is placed under the luggage carrier. (A, Fig. 14).
Release the two bolts (B, Fig.14) and from the bottom side of the
luggage carrier pull out the plastic box for battery. Place the battery in
the box with the connection shoes upwards. Applying the bolts
supplied with the battery, connect the blue color electric cable to the
blue color battery connection shoe (-) and the red color electric cable to
the red color battery connection shoe (+).
Caution: When placing the battery box under the mudguard, take care
that cables are placed into the groove on the left side of the battery
box. (C, Fig.15).
