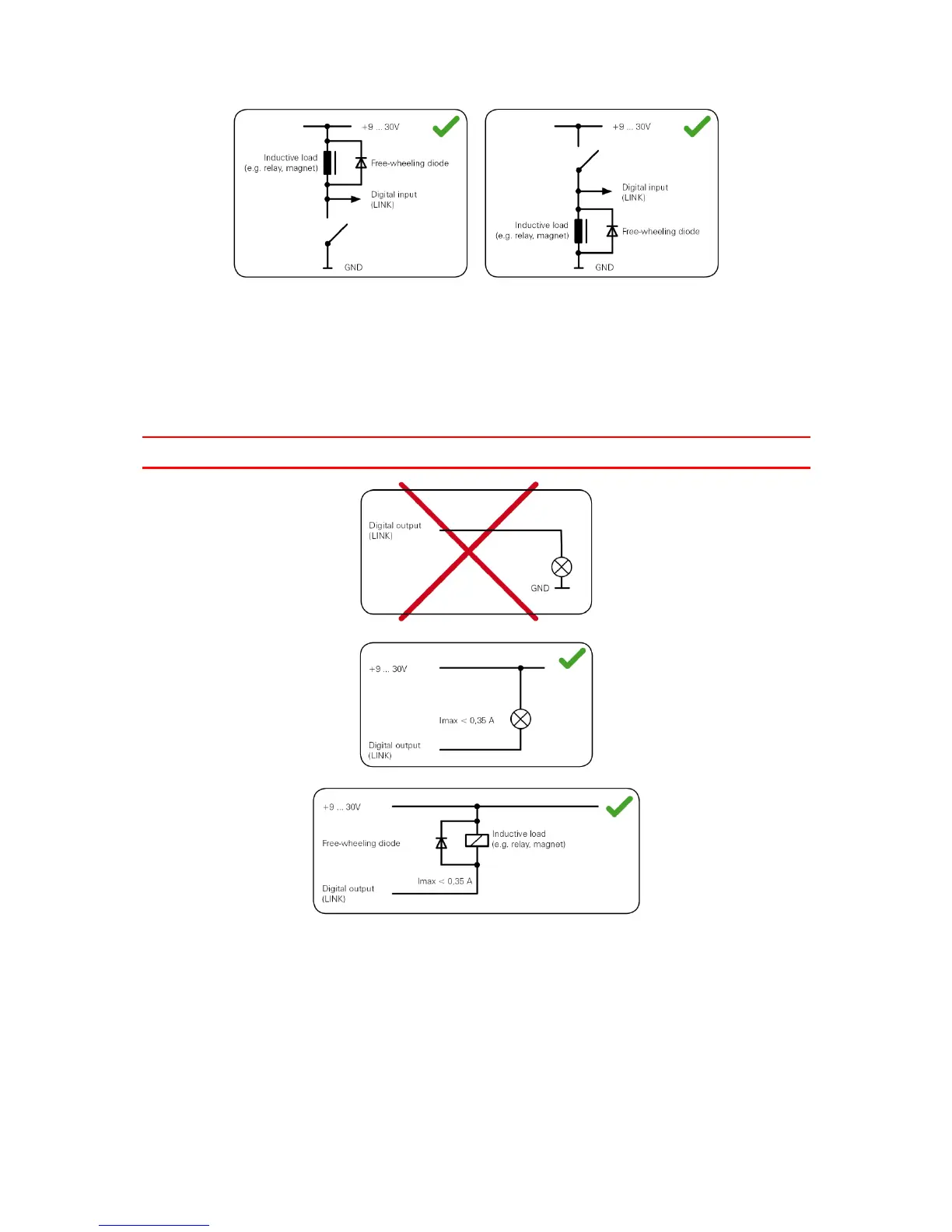

Wiring the digital output
The digital output OUT of the LINK 530 is an open drain output linking to ground. The connected
load must be connected between vehicle voltage and OUT. Loads requiring more than 0.35 A
must be controlled with relays. If the load requires more than the maximum output voltage use a
12 V/24 V relay, depending on the operating voltage.
Caution: Do not switch safety relevant vehicle functions.
